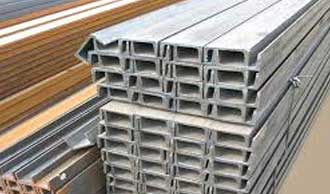

Stainless Steel Channel

One Of The Major And Trusted Supplier of Stainless Steel Channel in India, Ask for latest price list of SS 304 U Channel, Refer Sizes, Dimensions and Weight Chart of 316 Stainless Steel C Channel

Stainless Steel

On This Page

Specification Format of Stainless Steel Channel Chemical Compatibility of Formed Stainless Steel Channel Mechanical Characteristics of folded stainless steel channel Material Equivalent of u shaped SS channel Dimensions Standard of 316 Stainless Steel U Channel Stainless Steel Strut Channel Sizes And Schedules Common Applications of 304 Grade Stainless Steel Channel

Gallery

Stainless Steel Channel in Detail

Specification

Features & Applications

Common Applications of 304 Grade Stainless Steel Channel

Frames
Lintel Beams
Trailers and Truck bodies
High Corrosion Situations
Marine Engineering

Technical Data

Full Specifications

›Finishes & Forms

Specification Format of Stainless Steel Channel

col_1	col_2
Standard	ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Size Range	Base: 80 to 150 mm Side: 40 to 75 mm
Thickness	5 to 6 mm (depending on size)
Export to	Ireland, Brazil, Thailand, Egypt, Oman, Dubai, Singapore, Indonesia, Ukraine, Korea, Iran, India, Saudi Arabia, Spain, Canada, USA, Peru, etc
Processing	Bar cutting
Condition	HRAP

›Material Properties

Chemical Compatibility of Formed Stainless Steel Channel

Scroll to see all columns →

Grade	Grade_2	C	Mn	Si	P	S	Cr	Mo	Ni	N	Ti	Fe
304	min.						18.0		8.0
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10
304L	min.						18.0		8.0
304L	max.	0.030	2.0	0.75	0.045	0.030	20.0		12.0	0.10
304H	min.	0.04					18.0		8.0
304H	max.	0.010	2.0	0.75	0.045	0.030	20.0		10.5
SS 310		0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 26.00	0.10 max	19.00 21.00	54.7 min
SS 310S		0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00	0.75 max	19.00 21.00	53.095 min
SS 310H		0.04 0.10	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00		19.00 21.00	53.885 min
316	min.						16.0	2.03.0	10.0
316	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316L	min.						16.0	2.03.0	10.0
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316TI		0.08 max	10.00 14.00	2.0 max	0.045 max	0.030 max	16.00 18.00	0.75 max	2.00 3.00
317		0.08 max	2 max	1 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00				57.845 min
SS 317L		0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00	11.00 15.00			57.89 min
SS 321		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	5(C+N) 0.70 max
SS 321H		0.04 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	4(C+N) 0.70 max
347/ 347H		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 20.00		9.0013.00
410	min.						11.5
410	max.	0.15	1.0	1.00	0.040	0.030	13.5		0.75
446	min.						23.0			0.10
446	max.	0.2	1.5	0.75	0.040	0.030	30.0		0.50	0.25
904L	min.						19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

Mechanical Characteristics of folded stainless steel channel

col_1	col_2	col_3	col_4	col_5	col_6
Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
304H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	8.0 g/cm3	1399 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
317	7.9 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
321	8.0 g/cm3	1457 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	8.0 g/cm3	1454 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
904L	7.95 g/cm3	1350 °C (2460 °F)	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %

›Technical Data

Material Equivalent of u shaped SS channel

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	3304S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 304H	1.4301	S30409	–	–	–	–	–
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	–	X8CrNi25-21
SS 310H	–	S31009	–	–	–	–	–
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H	1.4401	S31609	–	–	–	–	–
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2
SS 317	1.4449	S31700	SUS 317	–	–	–	–
SS 317L	1.4438	S31703	SUS 317L	–	–	–	X2CrNiMo18-15-4
SS 321	1.4541	S32100	SUS 321	–	–	–	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	–	–	–	X12CrNiTi18-9
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10
SS 347H	1.4961	S34709	SUS 347H	–	–	–	X6CrNiNb18-12
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

Stainless Steel Strut Channel Sizes And Schedules

WEB THICK. IN IN.	FLANGE WIDTH IN IN.	WEIGHT PER FT. IN LBS.	MFG	col_5
DEPTH IN IN. X WT./FT./ LBS.	WEB THICK. IN IN.	FLANGE WIDTH IN IN.	WEIGHT PER FT. IN LBS.	MFG
C3 x 4.1	.170	1.410	4.1	Hot Rolled
C3 x 4.1	.170	1.410	4.1	Hot Rolled
C4 x 5.4	.184	1.584	5.4	Hot Rolled
C4 x 7.25	.321	1.721	7.25	Hot Rolled
C5 x 6.7	.190	1.750	6.7	Hot Rolled
C5 x 9.0	.325	1.885	9.0	Hot Rolled
C6 x 8.2	.200	1.920	8.2	Hot Rolled
C6 x 10.5	.314	2.034	10.5	Hot Rolled
C6 x 13	.437	2.157	13	Laser Fused
C8 x 11.5	.220	2.260	11.5	Laser Fused
C8 x 13.75	.330	2.343	13.75	Laser Fused
C8 x 18.75	.487	2.527	18.75	Hot Rolled
C10 x 15.3	.240	2.600	15.3	Laser Fused
C10 x 20	.379	2.739	20	Laser Fused
C10 x 25	.526	2.886	25	Laser Fused
C10 x 30	.673	3.033	30	Laser Fused
C12 x 20.7	.282	2.942	20.7	Laser Fused
C12 x 25	.387	3.047	25	Laser Fused
C12 x 30	.510	3.170	30	Laser Fused
C15 x 33.9	.400	3.400	33.9	Laser Fused

Requirements and Materials country wise

col_1	col_2
Perforated Stainless Steel Strut Channel	Belgium, Dammam -KSA, Indonesia, Philippines
41x41 Stainless Steel Solid C Channel	Thailand, Qatar, France, Europe
SUS304 stainless steel channel bar c shape	Malaysia, Czechia, Germany, Thailand
Steel Profile c type channel	Finland, Malaysia, USA, Bangladesh
C12x20.7 Steel Channel C Channel	Brazil, South Africa, Saudi Arabia (KSA), Kuwait
904 stainless steel u channel	Singapore, Bahrain, South Africa, Singapore
Decorative Mirror Gold T shape U channel 304 stainless steel profile	Nigeria, Philippines, Australia, UK
Slotted 41x41 unistrut channel	UAE, Oman, Malaysia, Hong Kong
cold rolled stainless steel u channel	Singapore, Chile, Italy, Iran
Stainless Steel Metal Profiles C Channel	Malaysia, United Arab Emirates (UAE), Turkey, Norway
Color Coated Decorative Stainless Steel U Channel	Dubai, Netherlands, Malaysia, Russia
light steel furring stainless steel c channel beam	UK, Egypt, Spain, Mexico
Slotted Steel Strut C Channel	UAE, United Kingdom -UK, Europe, Malaysia
201 stainless steel channel bar	Ellington -United States, UK, Canada, Poland
2x4 steel channel	Singapore, Philippines, Malaysia, Canada
310S Stainless Steel C Channel for Construction	Malaysia, Europe, Japan, Romania
316 stainless steel C perforated channel	China, Sweden, Colombia, Malaysia
Strut Channel 41x41 1-5/8"*1-5/8" ( C Channel, Unistrut, Uni Strut Channel)	Philippines, Malaysia, Taiwan, Los Alamos -Mexico
stainless steel Z beam	Malaysia, Singapore, South Korea, NY 12203 (USA)

›Dimensions & Weight

Dimensions Standard of 316 Stainless Steel U Channel

Scroll to see all columns →

Description	Process	G kg/m	h mm	b mm	tw mm	tf mm	r1 mm	r2 mm
C 50X25X5X6	Hot Rolled	3.95	50	25	5	6	6	3
C 75X40X5X7	Hot Rolled/Laser	6.95	75	40	5	7	8	4
C 100X50X5X7.5	Hot Rolled/Laser	9.37	100	50	5	7.5	8	4
C 125X65X6X8	Hot Rolled/Laser	13.4	125	65	6	8	8	4
C 150X75X6.5X10	Hot Rolled/Laser	18.62	150	75	6.5	10	10	5
C 150X75X9X12.5	Hot Rolled/Laser	24.01	150	75	9	12.5	5	1
C 180X75X7X10.5	Hot Rolled/Laser	21.52	180	75	7	10	2	1
C 200X80X7.5X11	Hot Rolled/Laser	24.77	200	80	7.5	11	2	1
C 200X90X8X13.5	Hot Rolled/Laser	30.53	200	90	8	13.5	2	1
C 230X80X8X12	Hot Rolled/Laser	28.56	230	80	8	12	2	1
C 250X90X9X13	Hot Rolled/Laser	34.86	250	90	9	13	2	1
C 250X90X11X14.5	Hot Rolled/Laser	40.34	250	90	11	14.5	2	1
C 300X90X9X12	Hot Rolled/Laser	37.17	300	90	9	12	2	1
C 300X90X10X15.5	Hot Rolled/Laser	43.85	300	90	10	15.5	2	1
C 300X90X12X16	Hot Rolled/Laser	48.78	300	90	12	16	2	1
C 380X100X10.5X16	Hot Rolled/Laser	54.85	380	100	10.5	16	2	1
C 380X100X13X16.5	Hot Rolled/Laser	62.5	380	100	13	16.5	2	1
C 380X100X13X20	Hot Rolled/Laser	67.37	380	100	13	20	2	1
