Hastelloy C276 Plate
Looking for Hastelloy C276 Sheet suppliers? Stockist and distributor of ASTM B575 UNS N10276 Plate in India, check C276 Alloy Coil dimensions, weight, WNR 2.4819 Hot Rolled Foil price list ex Mumbai.
Nickel Alloys
On This Page
Gallery
Hastelloy C276 Plate in Detail
Specification
Features & Applications

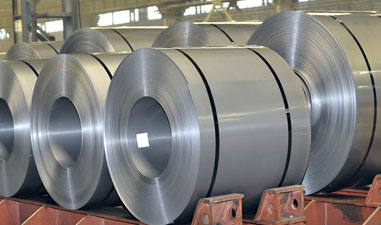

Hastelloy C276 Coil Size
- W : 0.5 mm to 1.2 m
- Thck : 0.1 mm to 5 mm
Alloy C276 Strip Size
- Width : 5 mm to 200 mm
- Thickness : 0.05 mm to 3 mm
ASTM B575 UNS N10276 Sheet Thickness
- 0.1 to 5 mm
UNS N10276 Sheet Width
- 0.5 to 1 m
Tensile Strength
- 690 Mpa
Nickel Alloy C276 Foil Yield Strength
- 283 Mpa
Alloy Hastelloy C276 Sheet Length
- 0.7 to 6 m
Werkstoff NR. 2.4819 Plate Thickness
- 2.5 to 100 mm
Elongation
- 40 %
Hardness
- Rockwell B : 100
Hastelloy C276 Plate Width
- 0.05 to 2 m
DIN 2.4819 Plate length
- 0.1 to 6 m
ASME SB 575 Alloy C276 Clad Plate Equivalent Standard
- Europe : NiMo16Cr15W
- France : NU-30M
- Japan : NW 0276
- OR : ЭП760
EN 2.4819 Chequered Plate Tempers
- Annealed
- 1/2 Hard
- Full Hard
- 3/4 Hard
Nickel C276 Shim Stock Density
- 8.89 g/cm3
Hastelloy 2.4819 Rolling Sheets Melting Range
- 2415 °F - 2500 °F
- 1323 °C - 1371 °C
C276 Hastelloy Flat Sheet Dimensional Standard
- DIN
- GB
- ASTM
- EN
- JIS
- SUS
Haynes Alloy C276 Sheet Types
- Strip
- Annealed plate
- Foils
- Clad plate
- Shim sheet
- Rolls
- Plate
- Coil
UNS 0276 Hot Rolled Plate Specific Heat
- 0.102 BTU/lb-°F
ASME SB575 NW 0276 Cold Rolled Plate Electrical Resistivity
- 1.30 Microhm-cm
- 51 Microhm-in
Hastelloy C276 Sheet Manufacturing methods
- Cold Rolled
- Forged
- Hot Rolled
Classes for Surface Finish
- A : Finest
- B: Slightly Less Fine
- C : Most Basic
Hastelloy C276 Plate Young’s Modulus (10^3 KSI)
- 29.8

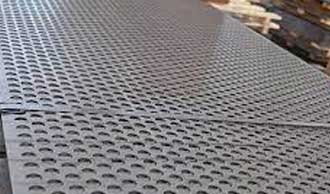

Alloy C276 Perforated Sheet Poisson’s Ratio
- 0.307
Certification of ASTM B575 UNS N10276 Chequered Plate
- Third Party Inspection Report
- Raw Materials Certificate
- 100% Radiography Test Report
- EN 10204 3.1and 3.2
- Certificate of Origin legalized
UNS N10276 Slitting Coil Packaging
- Steel Strips Bundled
- Bubble wraps
- Customized Pallets
- Wooden Pallets
UNS N04400 Plate Welding Method
- SMAW
- GMAW
- PLASMA
- GTAW
- SAW
Nickel Alloy C276 Thin Strips Finish
- Brushed
- Mirror
- Glossy
- Matte
- Sandblasted
- Electroless nickel plating
- Plain 2B
- Brushed Finish
- Embossed
- Rimex Super Mirror
Corrosion Rate
- 0.3 mpy
- 0.01 mm/a
Benefits
- Chlorine
- Strong oxidizers
- Formic & acetic acids
Hastelloy Alloy C276 Circle Testing Methods
- Non destructive test pmi test
- Mechanical test
- Chemical test
- Destructive test
- Flaring Test
- Third party inspection
- Nabl approved lab test
- Visual inspection test
Werkstoff NR. 2.4819 Shims Hardness Type
- Hard
- Soft
- Quarter Hard
- Spring Hard
- Half Hard
DIN 2.4819 Flat Shear Modulus
- 11.4 103 KSI
WNR 2.4819 Profile Annealed Temperature
- 2050 °F / 1121 °C
ASME SB 575 Alloy C276 Blank Cutting Methods
- Waterjet cutting
- Oxy-propane flame cutting
- Laser cutting
- Plasma cutting
Documentation We Offered for Nickel C276 Circle
- Copy of Invoice
- Copy of Packing List
- Country of Origin
- MTC
Specific Heat
- 0.102 BTU/lb-°F
- 427 J/kg-°K
Common Trade Names
- INCONEL® alloy C-276
- Hastelloy® C-276 alloy
Thermal Conductivity
- 67 BTU/hr/ft2/ft/°F
- 9.8 W/m-°K
Modulus of Elasticity
- 205.0 GPa
- 29.8 x 106 psi
Hastelloy 2.4819 Shim Stock Application
- Marine engineering
- Industrial heat exchangers
- Chlorinated solvents
- Chemical processing equipment
- Deaerating heaters
- Crude petroleum stills
C276 Hastelloy Rolling Plate Value Added Services
- Cutting to Length
- Welding
- Polishing
- Edge Preparation
- Sawing
- Bending
- Mechanical Processing
- Shearing
- Blanking
- Slitting
UNS
- N10276
Haynes Alloy C276 Rolling Sheets Oxidizing Temperature
- 1900 °F
- 1038 °C
Alloy C276 Clad Plate Hot Working Temperature Range
- 870 to 1230°C
- 1600 to 2250°F
Technical Data
Full Specifications
›Material Properties

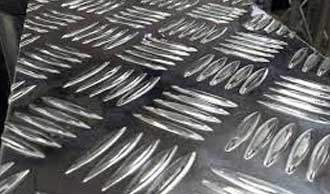

Mechanical Strength Table of Hastelloy C276 Chequered Plate
| Element | Density | col_3 | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| Element | 8.89 g/cm3 | 52000 Psi 355 MPa | Elongation | |
| Hastelloy C276 | Melting Point | Tensile Strength | 40 % | |
| Hastelloy C276 | 2500 °F 1370 °C | 115000 Psi 790 MPa | 40 % |
›Technical Data
Equivalent of 2.4819 Alloy C276 Foil
Scroll to see all columns →
| STANDARD | North America | WERKSTOFF NR. | OR | Japan | Europe | Russia |
|---|---|---|---|---|---|---|
| Hastelloy C276 | N10276 | 2.4819 | ЭП760 | NW 0276 | NiMo16Cr15W | ХН65МВУ |
Hastelloy C276 Plate Thickness Chart
| col_1 | col_2 |
|---|---|
| Cold rolled Hastelloy C276 thin Plates | 0.2-4mm |
| Hot rolled C276 Alloy medium Plates | 4-20mm |
| UNS N10276 thick Plates | 20-60mm |
| Alloy C276 extra thick Plates | 60-115mm |
Hastelloy C276 Coil Physical Properties
| Properties | Imperial | Metric |
|---|---|---|
| Melting point | 2500°F | 1371°C |
| Density | 0.321 lb/in³ | 8.89 g/cm³ |
Thermal Properties of DIN 2.4819 Foil
| Properties | Imperial | Imperial_2 | Metric | Metric_2 |
|---|---|---|---|---|
| Thermal expansion co-efficient (@24-93°C/75.2-199°F) | µin/in°F | 6.22 | µm/m°C | 11.2 |
| Thermal conductivity (-168 °C) | BTU in/hr.ft².°F | 50 | W/mK | 7.20 |
HS Code of Alloy C276 plate
| Properties | HS Code |
|---|---|
| hastelloy c276 plate hs code | 75062000 |
Hastelloy C276 Plate Sizes
Scroll to see all columns →
| Size (in inches) | .125 | .134 | .156 | .187 | .250 | .312 | .375 | .500 | .600 | .750 | .875 | 1 | 1.125 | 1.250 | 1.500 | 1.750 | 2 | 2.500 | 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (in millimeter) | 3.18 | 3.40 | 3.96 | 4.75 | 6.35 | 7.92 | 9.53 | 12.7 | 15.9 | 19.1 | 22.2 | 25.4 | 28.6 | 31.8 | 38.1 | 44.5 | 50.8 | 63.5 | 76.2 |
ASTM B127 UNS N04400 Strip Standards
| UNS | N10276 |
|---|---|
| International Specifications | ISO 6208 DIN 17750 VdTüV 400/12.98 |
| Specifications | ASTM B906 ASTM B575 |
