Specification List of ASME B16.9 Reducer

Standards	ANSI/ ASME B16.9, ASME B16.28, MSS-SP-43, BS4504, BS1560, BS4504, BS10
Size Range	½" NB to 24" NB in (DN6~DN100) 10s, Sch 40s, Schedule 80s, 160s, XXS.
size	Welded ButtWeld Fittings: From 1/2" to 48" Seamless Butt Weld Fittings: From 1/2" to 10"
Various Type Concentric Reducer Type B	DN15 - DN1200
Export to	Saudi Arabia, Egypt, Ireland, Iran, Ukraine, USA, Spain, Dubai, Singapore, Canada, India, Brazil, Indonesia, Korea, Oman, Thailand, Peru, etc
Manufacturing process	Push, Press, Forge, Cast, etc.
Thickness	SCH20, SCH10, SCH30, SCH60, STD SCH40, XS, SCH 80, Schedule 100, SCH 120, SCHEDULE 140, SCH. 160, XXS available with NACE MR 01-75
Reducer Types	Seamless / Welded / ERW / Fabricated

Schedule 40 Eccentric Reducer Material

col_1	col_2
Stainless Steel	ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel	ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Duplex Steel	ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy	ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
Low Temperature Carbon Steel	ASTM A420 WPL3, A420 WPL6
Alloy Steel	ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Requirements and Materials country wise

col_1	col_2
Din 2616 Concentric Reducer	Malaysia, Malaysia, Philippines, UK
Exhaust Concentric Reducer	South Korea, Singapore, Singapore, Bahrain
Schedule 80 Concentric Reducer	France, Hong Kong, UAE, Oman
Asme B16.9 Eccentric Reducer	Australia, NY 12203 (USA), China, Sweden
Concentric Reducer Ansi B16.9	USA, Romania, Ellington -United States, Netherlands
Brass Eccentric Reducer	Malaysia, Europe, Thailand, Qatar
ASME B16.9 BW Butt Weld SCH40 Concentric Reducer	South Africa, Los Alamos -Mexico, Malaysia, United Kingdom -UK
Butt Welding ASME B16.9 Concentric Eccentric Reducer	Indonesia, UK, Nigeria, Philippines
ASME B16.9 Stainless Steel Seamless Reducer	Canada, Philippines, Belgium, Dammam -KSA
Concentric Reducer ASME B16.9 Butt Weld SCH40	Saudi Arabia (KSA), Malaysia, Singapore, Egypt
6inch Stainless Steel Concentric Reducer	Spain, Mexico, UK, Singapore
welded concentric reducer ASTM B16.9	Europe, Norway, Malaysia, United Arab Emirates (UAE)
Sch 40 x Sch 80 A234 ECC Reducer 3" 3" x 2" Inch	Japan, Thailand, Malaysia, Czechia
ASME B16.9 reducer 10"X6" material	Taiwan, Kuwait, Brazil, South Africa
Titanium Concentric Reducer	Colombia, Bangladesh, Finland, Malaysia
Super Duplex Steel S32750 Butt-Weld Reducer	Turkey, Canada, Dubai, Europe
seamless weld steam eccentric reducers asme b16.9	Italy, Poland, Malaysia, Philippines
pipe reducer WPB B16.9	Germany, Iran, Singapore, Chile
168.3mmx114.3mm 4.5mm DN150*DN100 eccentric reducer	Malaysia, Russia, UAE, Malaysia

›Dimensions & Weight

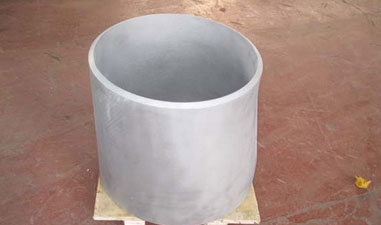

Dimensions Standard of Stainless Steel Concentric Reducer

Scroll to see all columns →

Code RCD REISO	Ø BIG	Ø BIG_2	Ø BIG_3	Ø SMALL	Ø SMALL_2	Ø SMALL_3	HEIGHT H mm	THEORETICAL WEIGHT KG
Code RCD REISO	DN	D mm	Thickness S mm	DN	d mm	Thickness s mm	HEIGHT H mm	THEORETICAL WEIGHT KG
27 21	3/4	26.9	2.3	1/2	21.3	2.0	38	0.08
33 21	1	33.7	2.6	1/2	21.3	2.0	50	0.09
33 27	1	33.7	2.6	3/4	26.9	2.3	50	0.09
42 21	1"1/4	42.4	2.6	1/2	21.3	2.0	50	0.12
42 27	1"1/4	42.4	2.6	3/4	26.9	2.3	50	0.13
42 33	1"1/4	42.4	2.6	1	33.7	2.6	50	0.14
*48 21	1"1/2	48.3	2.6	1/2	21.3	2.0	64	0.18
48 27	1"1/2	48.3	2.6	3/4	26.9	2.3	64	0.19
48 33	1"1/2	48.3	2.6	1	33.7	2.6	64	0.20
48 42	1"1/2	48.3	2.6	1"1/4	42.4	2.6	64	0.20
60 27	2	60.3	2.9	3/4	26.9	2.3	76	0.30
60 33	2	60.3	2.9	1	33.7	2.6	76	0.31
60 42	2	60.3	2.9	1"1/4	42.4	2.6	76	0.32
60 48	2	60.3	2.9	1"1/2	48.3	2.6	76	0.33
76 33	2"1/2	76.1	2.9	1	33.7	2.6	90	0.40
76 42	2"1/2	76.1	2.9	1"1/4	42.4	2.6	90	0.47
76 48	2"1/2	76.1	2.9	1"1/2	48.3	2.6	90	0.48
76 60	2"1/2	76.1	2.9	2	60.3	2.6	90	0.49
89 42	3	88.9	3.2	1"1/4	42.4	2.6	90	0.55
89 48	3	88.9	3.2	1"1/2	48.3	2.6	90	0.61
89 60	3	88.9	3.2	2	60.3	2.9	90	0.62
89 76	3	88.9	3.2	2"1/2	76.1	2.9	90	0.63
114 48	4	114.3	3.6	1"1/2	48.3	2.6	100	0.85
114 60	4	114.3	3.6	2	60.3	2.9	100	0.98
114 76	4	114.3	3.6	2"1/2	76.1	2.9	100	1.00
114 89	4	114.3	3.6	3	88.9	3.2	100	1.02
139 60	5	139.7	4.0	2	60.3	2.9	127	1.60
139 76	5	139.7	4.0	2"1/2	76.1	2.9	127	1.70
139 89	5	139.7	4.0	3	88.9	3.2	127	1.74
139 114	5	139.7	4.0	4	114.3	3.6	127	1.76
*168 76	6	168.3	4.5	2"1/2	76.1	2.9	140	2.60
168 89	6	168.3	4.5	3	88.9	3.2	140	2.70
168 114	6	168.3	4.5	4	114.3	3.6	140	2.82
168 139	6	168.3	4.5	5	139.7	4.0	140	2.94
219 114	8	219.1	6.3	4	114.3	3.6	152	5.03
219 139	8	219.1	6.3	5	139.7	4.0	152	5.12
219 168	8	219.1	6.3	6	168.3	4.5	152	5.18
*273 114	10	273.0	6.3	4	114.3	3.6	178	7.00
*273 139	10	273.0	6.3	5	139.7	4.0	178	7.20
273 168	10	273.0	6.3	6	168.3	4.5	178	7.40
273 219	10	273.0	6.3	8	219.1	6.3	178	7.55
323 168	12	323.9	7.1	6	168.3	4.5	203	11.00
323 219	12	323.9	7.1	8	219.1	6.3	203	11.10
323 273	12	323.9	7.1	10	273	6.3	203	11.20

Sch 160 Concentric Reducer Table Weight

NPS	LBS	KG
3/4-1/2	0.17	0.08
3/4-3/8	0.15	0.07
1-3/4	0.4	0.18
1-1/2	0.4	0.18
1.1/4-1	0.5	0.23
1.1/4-3/4	0.4	0.18
1.1/4-1/2	0.4	0.18
1.1/2-1.1/4	0.7	0.32
1.1/2-1	0.62	0.28
1.1/2-3/4	0.54	0.24
1.1/2-1/2	0.5	0.23
2-1.1/2	0.9	0.41
2-1.1/4	0.84	0.38
2-1	0.76	0.34
2-3/4	0.7	0.32
2.1/2-2	1.5	0.68
2.1/2-1.1/2	1.38	0.63
2.1/2-1.1/4	1.25	0.57
2.1/2-1	1.25	0.57
3-2.1/2	2	0.91
3-2	1.8	0.82
3-1.1/2	1.7	0.77
3-1.1/4	1.6	0.73
3.1/2-3	3.15	1.43
3.1/2-2.1/2	2.88	1.31
3.1/2-2	2.75	1.25
3.1/2-1.1/2	2.5	1.13
3.1/2-1.1/4	2.4	1.09
4-3.1/2	3.5	1.59
4-3	3.38	1.53
4-2.1/2	3.25	1.47
4-2	3	1.36
4-1.1/2	2.88	1.31
5-4	6	2.72
5-3.1/2	5.75	2.61
5-3	5.5	2.49
5-2.1/2	5.25	2.38
5-2	5	2.27
6-5	8.5	3.86
6-4	8.25	3.74
6-3.1/2	8.25	3.74
6-3	8	3.63
6-2.1/2	7.25	3.29
8-6	13.2	5.99
8-5	12	5.44
8-4	11	4.99
8-3.1/2	11	4.99
10-8	22	9.98
10-6	21.5	9.75
10-5	21	9.53
10-4	20	9.07
12-10	34	15.42
12-8	32	14.51
12-6	31	14.06
12-5	30	13.61
14-12	60	27.22
14-10	59.2	26.85
14-8	58.5	26.54
14-6	58	26.31
16-14	71	32.21
16-12	70	31.75
16-10	69.5	31.52
16-8	68.5	31.07
16-6	-	-
18-16	85	38.56
18-14	84	38.1
18-12	83	37.65
18-10	82	37.19
18-8	-	-
20-18	125	56.7
20-16	124	56.25
20-14	122	55.34
20-12	120	54.43
20-10	-	-
20-8	-	-
22-20	142	64.41
22-18	138	62.6
22-16	131	59.42
22-14	123	55.79
22-12	-	-
22-10	-	-
24-22	-	-
24-20	150	68.04
24-18	148	67.13
24-16	145	65.77
24-14	-	-
24-12	-	-
24-10	-	-
26-24	207	93.89
26-22	200	90.72
26-20	190	86.18
26-18	182	82.55
26-16	-	-
26-14	-	-
26-12	-	-
28-26	224	101.6
28-24	216	97.98
28-22	210	95.25
28-20	199	90.26
30-28	241	109.32
30-26	232	105.23
30-24	224	101.6
30-22	220	99.79
30-20	220	99.79
NPS	LBS	KG

Bsp Concentric Reducer Fitting Dimensional Tolerances

col_1	col_2	col_3	col_4	col_5
Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameter / at Bevel (D)	+ 1.6 / – 0.8	1.6	1.6	+ 2.4 / – 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Overall Length (H)	2	2	2	2
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameter / at Bevel (D)	+ 4 / – 3.2	+ 6.4 / – 4.8	+ 6.4 / – 4.8	+ 6.4 / – 4.8
Inside Diameter at End	3.2	4.8	+ 6.4 / – 4.8	+ 6.4 / – 4.8
Overall Length (H)	2	2	5	5
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness	Not less than 87.5% of Nominal Wall Thickness	Not less than 87.5% of Nominal Wall Thickness	Not less than 87.5% of Nominal Wall Thickness

Malleable Eccentric Reducer Dimensions

inches	mm	D	d	H
3/4 x 3/4	20 x 15	26,67	21,34	38,10
3/4 x 3/8	20 x 10	26,67	17,14	38,10
1 x 3/4	25 x 20	33,40	26,67	50,80
1 x 1/2	25 x 15	33,40	21,34	50,80
1 1/4 x 1	32 x 25	42,16	33,40	50,80
1 1/4 x 3/4	32 x 20	42,16	26,67	50,80
1 1/4 x 1/2	32 x 15	42,16	21,34	50,80
1 1/2 x 1 1/4	40 x 32	48,26	42,16	63,50
1 1/2 x 1	40 x 25	48,26	33,40	63,50
1 1/2 x 3/4	40 x 20	48,26	26,67	63,50
1 1/2 x 1/2	40 x 15	48,26	21,34	63,50
2 x 1 1/2	50 x 40	60,32	48,26	76,20
2 x 1 1/4	50 x 32	60,32	42,16	76,20
2 x 1	50 x 25	60,32	33,40	76,20
2 x 3/4	50 x 20	60,32	26,67	76,20
2 1/2 x 2	65 x 50	73,02	60,32	88,90
2 1/2 x 1 1/2	65 x 40	73,02	48,26	88,90
2 1/2 x 1 1/4	65 x 32	73,02	42,16	88,90
2 1/2 x1	65 x 25	73,02	33,40	88,90
3 x 2 1/2	80 x 65	88,90	73,02	88,90
3 x 2	80 x 50	88,90	60,32	88,90
3 x 1 1/2	80 x 40	88,90	48,26	88,90
3 x 1 1/4	80 x 32	88,90	42,16	88,90
3 1/2 x 3	90 x 80	101,60	88,90	101.60
3 1/2 x 2 1/2	90 x 65	101,60	73,02	101.60
3 1/2 x 2	90 x 50	101,60	60,32	101.60
3 1/2 x 1 1/2	90 x 40	101,60	48,26	101.60
3 1/2 x 1 1/4	90 x 32	101,60	42,16	101.60
4 x 3 1/2	100 x 90	114,30	73,02	101.60
4 x 3	100 x 80	114,30	88,90	101.60
4 x 2 1/2	100 x 65	114,30	73,02	101.60
4 x 2	100 x 50	114,30	60,32	101.60
4 x 1 1/2	100 x 40	114,30	48,26	101.60
5 x 4	125 x 100	141,30	114,30	127,00
5 x 3 1/2	125 x 90	141,30	101,60	127,00
5 x 3	125 x 80	141,30	88,90	127,00
5 x 2 1/2	125 x 65	141,30	73,02	127,00
5 x 2	125 x 50	141,30	60,32	127,00
6 x 5	150 x 125	168,27	141,30	139,7
6 x 4	150 x 100	168,27	114,30	139,7
6 x 1/2	150 x 90	168,27	101,60	139,7
6 x 3	150 x 80	168,27	88,90	139,7
6 x 1/2	150 x 65	168,27	73,02	139,7
8 x 6	200 x 150	219,07	168,27	152,4
8 x 5	200 x 125	219,07	141,30	152,4
8 x 4	200 x 100	219,07	114,30	152,4
8 x 3 1/2	200 x 90	219,07	101,60	152,4
10 x 8	250 x 200	273,05	219,07	177,8
10 x 6	250 x 150	273,05	168,27	177,8
10 x 5	250 x 125	273,05	141,30	177,8
10 x 4	250 x 100	273,05	114,30	177,8
12 x 10	300 x 250	323,85	273,05	203,2
12 x 8	300 x 200	323,85	219,07	203,2
12 x 6	300 x 150	323,85	168,27	203,2
12 x 5	300 x 125	323,85	141,30	203,2
14 x 12	350 x 300	355,60	323,85	330,2
14 x 10	350 x 250	355,60	273,05	330,2
14 x 8	350 x 200	355,60	219,07	330,2
14 x 6	350 x 150	355,60	168,27	330,2
16 x 14	400 x 350	406,40	355,60	355,6
16 x 12	400 x 300	406,40	323,85	355,6
16 x 10	400 x 250	406,40	273,05	355,6
16 x 8	400 x 200	406,40	219,07	355,6
18 x 16	450 x 400	457,20	406,40	381,0
18 x 14	450 x 350	457,20	355,60	381,0
18 x 12	450 x 300	457,20	323,85	381,0
18 x 10	450 x 250	457,20	273,05	381,0
20 x 18	500 x 450	508,00	457,20	508,0
20 x 16	500 x 400	508,00	406,40	508,0
20 x 14	500 x 350	508,00	355,60	508,0
20 x 12	500 x 300	508,00	323,85	508,0
22 x 20	550 x 500	558,80	508,00	508,0
22 x 18	550 x 450	558,80	457,20	508,0
22 x 16	550 x 400	558,80	406,40	508,0
22 x 14	550 x 350	558,80	355,60	508,0
24 x 22	600 x 550	609,6	558,80	508,0
24 x 20	600 x 500	609,6	508,00	508,0
24 x 18	600 x 450	609,6	457,20	508,0
24 x 16	600 x 400	609,6	406,40	508,0
Dimension in mm.	Dimension in mm.	Dimension in mm.	Dimension in mm.	Dimension in mm.

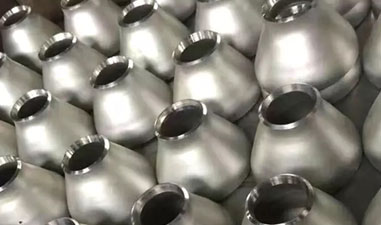

Cast Iron Eccentric Reducer Weight Chart

col_1	col_2	col_3	col_4	col_5
/ Nominal Diameter	/ Nominal Diameter	Outside Diameter	Outside Diameter	/ End to End
/ Nominal Diameter	/ Nominal Diameter	D1*D2	D1*D2	/ End to End
DN	NPS	Series A	Series B	H
20*15	3/4*1/2	26.9*21.3	25*18	38
20*10	3/4*3/8	26.9*17.3	25*14	38
25*20	1*3/4	33.7*26.9	32*25	51
25*15	1*1/2	33.7*21.3	32*18	51
32*25	1.1/4*1	42.4*33.7	38*32	51
32*20	1.1/4*3/4	42.4*26.9	38*25	51
32*15	1.1/4*1/2	42.4*21.3	38*18	51
40*32	1.1/2*1.1/4	48.3*42.4	45*38	64
40*25	1.1/2*1	48.3*33.7	45*32	64
40*20	1.1/2*3/4	48.3*26.9	45*25	64
40*15	1.1/2*1/2	48.3*21.3	45*18	64
50*40	2*1.1/2	60.3*48.3	57*45	76
50*32	2*1.1/4	60.3*42.4	57*38	76
50*25	2*1	60.3*33.7	57*32	76
50*20	2*3/4	60.3*26.9	57*25	76
65*50	2.1/2*2	73.0*60.3	76*57	89
65*40	2.1/2*1.1/2	73.0*48.3	76*45	89
65*32	2.1/2*1.1/4	73.0*42.4	76*38	89
65*25	2.1/2*1	73.0*33.7	76*32	89
80*65	3*2.1/2	88.9*73.0	89*76	89
80*50	3*2	88.9*60.3	89*57	89
80*40	3*1.1/2	88.9*48.3	89*45	89
80*32	3*1.1/4	88.9*42.4	89*38	89
90*80	3.1/2*3	101.6*88.9	-	102
90*65	3.1/2*2.1/2	101.6*73.0	-	102
90*50	3.1/2*2	101.6*60.3	-	102
90*40	3.1/2*1.1/2	101.6*48.3	-	102
90*32	3.1/2*1.1/4	101.6*42.4	-	102
100*90	4*3.1/2	114.3*101.6	-	102
100*80	4*3	114.3*88.9	108*89	102
100*65	4*2.1/2	114.3*73.0	108*76	102
100*50	4*2	114.3*60.3	108*57	102
100*40	4*1.1/2	114.3*48.3	108*45	102
125*100	5*4	141.3*114.3	133*108	127
125*90	5*3.1/2	141.3*101.6	-	127
125*80	5*3	141.3*88.9	133*89	127
125*65	5*2.1/2	141.3*73.0	133*76	127
125*50	5*2	141.3*60.3	133*57	127
150*125	6*5	168.3*141.3	159*133	140
150*100	6*5	168.3*114.3	159*108	140
150*90	6*3.1/2	168.3*101.6	-	140
150*80	6*3	168.3*88.9	159*89	140
150*65	6*2.1/2	168.3*73.0	159*76	140
200*150	8*6	219.1*168.3	219*159	152
200*125	8*5	219.1*141.3	219*133	152
200*100	8*4	219.1*114.3	219*108	152
200*90	8*3.1/2	219.1*101.6	-	152
250*200	10*8	273.0*219.1	273*219	178
250*150	10*6	273.0*168.3	273*159	178
250*125	10*5	273.0*141.3	273*133	178
250*100	10*4	273.0*114.3	273*108	178
300*250	12*10	323.9*273.1	325*273	203
300*200	12*8	323.9*219.1	325*219	203
300*150	12*6	323.9*168.3	325*159	203
300*125	12*5	323.9*141.3	325*133	203
350*300	14*12	355.6*323.9	377*325	330
350*250	14*10	355.6*273.0	377*273	330
350*200	14*8	355.6*219.1	377*219	330
350*150	14*6	355.6*168.3	377*159	330
400*350	16*14	406.4*355.6	426*377	356
400*300	16*12	406.4*323.9	426*325	356
400*250	16*10	406.4*273.0	426*273	356
400*200	16*8	406.4*219.1	426*219	356
450*400	18*16	457*406.4	478*426	381
450*350	18*14	457*355.6	478*377	381
450*300	18*12	457*323.9	478*325	381
450*250	18*10	457*273.0	478*273	381
500*450	20*18	508*457	529*478	508
500*400	20*16	508*406.4	529*426	508
500*350	20*14	508*355.6	529*377	508
500*300	20*12	508*323.9	529*325	508
550*500	22*20	559*508	-	508
550*450	22*18	559*457	-	508
550*400	22*16	559×406.4	-	508
550*350	22*14	559*355.6	-	508
600*550	24*22	610*559	-	508
600*500	24*20	610*508	630*529	508
600*450	24*18	610*457	630*478	508
600*400	24*22	610*406.4	630*426	508
650*600	26*24	660*610	-	610
650*550	26*22	660*559	-	610
650*500	26*20	660*508	-	610
650*450	26*18	660*457	-	610
700*650	28*26	711*660	-	610
700*600	28*24	711*610	720*630	610
700*550	28*22	711*559	-	610
700*500	28*20	711*508	720*530	610
750*700	30*28	762*711	-	610
750*650	30*26	762*660	-	610
750*600	30*24	762*610	-	610
750*550	30*22	762*559	-	610
800*750	32*30	813*762	-	610
800*700	32*28	813*711	820*720	610
800*650	32*26	813*660	-	610
800*600	32*24	813*610	820*630	610
850*800	34*32	864*813	-	610
850*750	34*30	864*762	-	610
850*700	34*28	864*711	-	610
850*650	34*26	864*660	-	610
900*850	36*34	914*864	-	610
900*800	36*32	914*813	920*820	610
900*750	36*30	914*762	-	610
900*700	36*28	914*711	920*720	610
950*900	38*36	965*914	-	610
950*850	38*34	965*864	-	610
950*800	38*32	965*813	-	610
950*750	38*30	965*762	-	610
1000*950	40*38	1016*965	-	610
1000*900	40*36	1016*914	1020*920	610
1000*850	40*34	1016*864	-	610
1000*800	40*32	1016*813	1020*820	610
1050*1000	42*40	1067*1016	-	610
1050*950	42*38	1067*965	-	610
1050*900	42*36	1067*914	-	610
1050*850	42*34	1067*864	-	610
1100*1050	44*42	1118*1067	-	610
1100*1000	44*40	1118*1016	1120*1020	610
1100*950	44*38	1118*965	-	610
1100*900	44*36	1118*914	1220*920	610
1150*1100	46*44	1168*1118	-	711
1150*1050	46*42	1168*1067	-	711
1150*1000	46*40	1168*1016	-	711
1150*950	46*38	1168*965	-	711
1200*1150	48*46	1220*1168	-	711
1200*1100	48*44	1220*1118	1220*1120	711
1200*1050	48*42	1220*1067	-	711
1200*1000	48*40	1220*1016	1220*1020	711

Dimensional Tolerances of Din 2616 Eccentric Reducer

col_1	col_2	col_3	col_4	col_5
Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameter / at Bevel (D)	+ 1.6 / – 0.8	1.6	1.6	+ 2.4 / – 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Overall Length (H)	2	2	2	2
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameter / at Bevel (D)	+ 4 / – 3.2	+ 6.4 / – 4.8	+ 6.4 / – 4.8	+ 6.4 / – 4.8
Inside Diameter at End	3.2	4.8	+ 6.4 / – 4.8	+ 6.4 / – 4.8
Overall Length (H)	2	2	5	5
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness	Not less than 87.5% of Nominal Wall Thickness	Not less than 87.5% of Nominal Wall Thickness	Not less than 87.5% of Nominal Wall Thickness

ASME B16.9 Reducer

Get a Price

Request a quote for this item

Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.

Request a Quote for ASME B16.9 Reducer

Contact

Send us the spec

Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.

Enquiry FormReply same working day

Direct Contact

Head Office

Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India

Phone / WhatsApp

+91 93240 06771

exportompmo@gmail.com

Working Hours

Monday – Saturday8:00 AM – 8:00 PM

SundayClosed
