ASME B16.9 Stub End

ASME B16.9 Stub End Manufacturers, Stock of Stainless Steel Long Stub End In India. Refer Carbon steel Lap Joint Stub End Dimensions, Buy JIS 10K type a stub end, stub end ansi b16.5 At Low Price.

Types of Fititngs

On This Page

Specification Format of ASME B16.9 Stub End Mss Type C Stub End End Length Threaded Lap Joint Stub End Weight Chart Stub End Ansi B16.5 European Standard Din 2642 Stub End Tolerance Long Neck Stub End Dimensions Short Stub End Dimensions Lap Joint Stub End Inch Dimensions as per ASME B16.9 Material of Stub End En 1092-1 Type 33

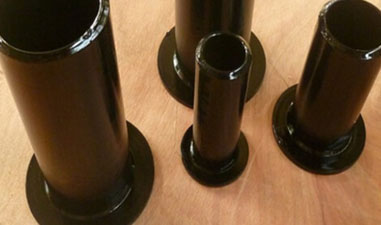

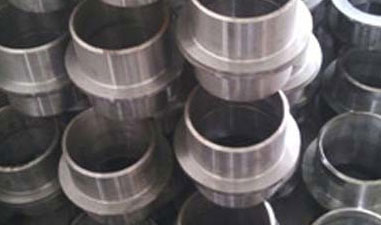

Gallery

ASME B16.9 Stub End in Detail

Technical Data

Full Specifications

›Finishes & Forms

Specification Format of ASME B16.9 Stub End

Dimensions	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Sizes	1/2″NB TO 36 “NB IN
Schedule Wall Thickness	5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS Schedule
Export to	Thailand, Egypt, Singapore, Saudi Arabia, Oman, Indonesia, Korea, Iran, Spain, Canada, India, Dubai, Ireland, Brazil, Ukraine, USA, Peru, etc
Types	Pipe Stub Ends, Butt weld Long Stub Ends, Long Stub Ends, Lap Joint Stub Ends.
Value Added Services	Electro Polish, Hot Dipped Galvanizing, Epoxy & FBE Coating, Sand Blasting, Threading, Soldering

›Technical Data

Mss Type C Stub End End Length

Scroll to see all columns →

Nominal	Schedule	D	t	G	F	R. Max.	kg / St.	col_9
1/2 “	10s	21.3	2.11	34.9	50.8	3.18	0.07	s
40s	2.77	0.09	s
3/4 “	10s	26.7	2.11	42.9	50.8	3.18	0.10	s
40s	2.87	0.12	s
1 “	10s	33.4	2.77	50.8	50.8	3.18	0.16	s / w
40s	3.38	0.17	s
1 1/4 “	10s	42.2	2.77	63.5	50.8	4.76	0.22	s
40s	3.56	0.25	s
1 1/2 “	10s	48.3	2.77	73.0	50.8	6.35	0.25	s / w
40s	3.68	0.31	s
2 “	10s	60.3	2.77	92.1	63.5	7.94	0.43	s / w
40s	3.91	0.61	s
2 1/2 “	10s	73.0	3.05	104.8	63.5	7.94	0.57	s / w
40s	5.16	0.80	s
3 “	10s	88.9	3.05	127.0	63.5	9.53	0.73	s / w
40s	5.49	1.13	s
4 “	10s	114.3	3.05	157.2	76.2	11.11	1.09	s / w
40s	6.02	1.87	s
5 “	10s	141.3	3.40	185.7	76.2	11.11	1.47	s / w
40s	6.55	2.28	s
6 “	10s	168.3	3.40	215.9	88.9	12.70	2.15	s / w
40s	7.11	3.57	s / w
8 “	10s	219.1	3.76	269.9	101.6	12.70	3.22	s / w
40s	8.18	6.07	s / w
10 “	10s	273.1	4.19	323.9	127.0	12.70	5.13	w
40s	9.27	10.07	w
12 “	10s	323.9	4.57	381.0	152.4	12.70	8.16	w
40s	9.53	14.29	w
14 “	10s	355.6	4.78	412.8	152.4	12.70	10.89	w
40s	9.53	17.15	w
16 “	10s	406.4	4.78	469.9	152.4	12.70	12.70	w
40s	9.53	20.41	w
18 “	10s	457.2	4.78	533.4	152.4	12.70	17.24	w
20 “	10s	508.0	5.54	584.2	152.4	12.70	21.77	w
24 “	10s	609.6	6.35	692.2	152.4	12.70	27.22	w

Stub End Ansi B16.5 European Standard

ASME:	ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN:	DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN:	EN10253-1, EN10253-2

Material of Stub End En 1092-1 Type 33

col_1	col_2
Stainless Steel	ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel	ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Duplex Steel	ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy	ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
Low Temperature Carbon Steel	ASTM A420 WPL3, A420 WPL6
Alloy Steel	ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

View our reference of material in below countries

col_1	col_2
Mss Sp-43 Type B Stub End	France, Hong Kong, UAE, Oman
ASME B16.9 Butt Welding Long & Short Stub End	Europe, Norway, Malaysia, United Arab Emirates (UAE)
stainless steel stub end ASME B16.9	Saudi Arabia (KSA), Malaysia, Singapore, Egypt
Short Type And Long Type Lap Joint Stub End	Turkey, Canada, Dubai, Europe
Stub End En 1092-1 Type 35	Germany, Iran, Singapore, Chile
Jis 10k Stub End	South Africa, Los Alamos -Mexico, Malaysia, United Kingdom -UK
Type C Lap Joint Stub End	Malaysia, Russia, UAE, Malaysia
welded titanium lap joint stub end	Colombia, Bangladesh, Finland, Malaysia
Stainless Steel Stub End 2'' SCH40 ASME B16.9	Malaysia, Malaysia, Philippines, UK
Sch80S polished Lap Joint titanium stub end	Italy, Poland, Malaysia, Philippines
Asme B16.9 Long Short Lap Joint Stub Ends	Malaysia, Europe, Thailand, Qatar
1/2"-48" Short Pattern Stub End	Australia, NY 12203 (USA), China, Sweden
MSS SP-43 8'' SCH10S Stub End	Indonesia, UK, Nigeria, Philippines
Ti Short Type And Long Type Lap Joint Stub End	Japan, Thailand, Malaysia, Czechia
SCH40 ASME B16.9 BW STUB END	Canada, Philippines, Belgium, Dammam -KSA
ASME B16.9 Butt Weld Lap Joint Flange	South Korea, Singapore, Singapore, Bahrain
1-48 Inch ASME B16.9 Stub Ends	USA, Romania, Ellington -United States, Netherlands
Lap Joint Flange Type A Stub End	Spain, Mexico, UK, Singapore
Stub End ASTM CuNi 90/10 4'' SCH40s	Taiwan, Kuwait, Brazil, South Africa

›Dimensions & Weight

Threaded Lap Joint Stub End Weight Chart

Scroll to see all columns →

Size	Other Diameter	Pipe I.D.	WT	Standard to XXHY	Weight	Section Modulus	Schedule / Pipe #	Gallon
1/2	0.84	0.622	0.109	STD	0.85	.0407	40	.0158
		0.546	0.147	XHY	1.09	.0478	80	.0122
		0.464	0.188		1.31	.0528	160	.0088
3/4	1.05	0.824	0.113	STD	1.13	.0705	40	.0277
		0.742	0.154	XHY	1.48	.0853	80	.0225
		0.612	0.219		1.95	.1006	160	.0153
1	1.315	1.049	0.133	STD	1.68	.1328	40	.0449
		0.957	0.179	XHY	2.17	.1606	80	.0374
		0.815	0.250		2.85	.1904	160	.0271
1 1/4	1.66	1.380	0.140	STD	2.27	.2346	40	.0777
		1.278	0.191	XHY	3.00	.2913	80	.0666
		1.160	0.250		3.77	.3421	160	.0549
1 1/2	1.90	1.610	0.145	STD	2.72	.3262	40	.1058
		1.500	0.200	XHY	3.63	.4118	80	.0918
		1.338	0.281		4.86	.5079	160	.0730
2	2.375	2.157	0.109		2.64	.4205	10	.1898
		2.067	0.154	STD	3.66	.5606	40	.1743
		1.939	0.218	XHY	5.03	.7309	80	.1534
		1.875	0.250		5.68	.8045		.1434
		1.813	0.281		6.29	.8666		.1344
		1.687	0.344		7.47	.9806	160	.1161
2 1/2	2.875	2.635	0.120		3.53	.6870	10	.2833
		2.469	0.203	STD.	5.80	1.0640	40	.2487
		2.443	0.216		6.14	1.1169		.2435
		2.375	0.250		7.02	1.2468		.2301
		2.323	0.276	XHY	7.67	1.3386	80	.2202
		2.125	0.375		10.02	1.6371	160	.1842
3	3.50	3.260	0.120		4.34	1.0411		.4336
		3.188	0.156		5.58	1.3122		.4147
		3.156	0.172		6.12	1.4265		.4064
		3.124	0.188		6.66	1.5342		.3984
		3.068	0.216	STD.	7.58	1.7241	40	.3840
		3.000	0.250		8.69	1.9372		.3672
		2.938	0.281		9.67	2.1207		.3521
		2.900	0.300	XHY	10.26	2.2253	80	.3431
		2.624	0.438		14.34	2.8774	160	.2811
3 1/2	4.0	3.760	0.120		4.98	1.3776	10	.5768
		3.548	0.226	STD.	9.12	2.3939	140	.5136
		3.500	0.250		10.02	2.6001		.4998
		3.438	0.281		11.17	2.8562		.4821
		3.364	0.318	XHY	12.52	3.1400	80	.4617
4	4.5	4.260	0.120		5.62	1.7612	10	.7404
		4.188	0.156		7.24	2.2354		.7156
		4.124	0.188		8.67	2.6296		.6942
		4.094	0.203		9.32	2.8173		.6838
		4.062	0.219		10.02	3.0184		.6725
		4.026	0.237	STD.	10.80	3.2145	40	.6613
		4.000	0.250		11.36	3.3611		.6528
		3.938	0.281		12.67	3.7021	60	.6326
		3.876	0.312		13.97	4.0273		.6126
		3.826	0.337	XHY	15.00	4.2713	80	.5972
		3.624	0.438		19.02	5.1790	120	.5361
		3.438	0.531		22.53	5.8997	160	.4822
5	5.563	5.187	0.188		10.80	4.1161		1.0979
		5.125	0.219		12.51	4.7279		1.0716
		5.047	0.258	STD.	14.63	5.4500	40	1.0391
		5.001	0.281		15.87	5.8644		1.0204
		4.939	0.312		17.51	6.4074		.99647
		4.875	0.344		19.19	6.9358		.9696
		4.813	0.375	XHY	20.80	7.4300	80	.9449
		4.563	0.500		27.06	9.2534	120	.8495
		4.313	0.625		32.99	10.7976	160	.7590
6	6.625	6.407	0.109		7.59	3.5769	5	1.6748
		6.357	0.134		9.30	4.3475	10	1.6488
		6.313	0.156		10.79	5.0107		1.6260
		6.249	0.188		12.94	5.9351		1.5937
		6.219	0.203		13.94	6.3804		1.5780
		6.187	0.219		15.00	6.8261		1.5620
		6.125	0.250		17.04	7.6905		1.5306
		6.065	0.280	STD.	18.99	8.4958	40	1.5008
		6.001	0.312		21.06	9.3416		1.4688
		5.937	0.344		23.10	10.111		1.4391
		5.875	0.375		25.05	10.893		1.4082
		5.761	0.432	XHY	28.60	12.224	80	1.3541
		5.625	0.500		32.74	13.711		1.2909
		5.501	0.562		36.43	14.9806	120	1.2346
		5.375	0.625		40.09	16.1821		1.1787
		5.187	0.719		45.39	17.8243	160	1.0977
		4.897	0.864	XXHY	53.21	20.025		.9784
		4.625	1.000		60.13	21.7719		.8727
		4.375	1.125		66.14	23.1237		.7809

Long Neck Stub End Dimensions

Scroll to see all columns →

Product	Nom. Pipe Size	Dia (G)	Length (F), Short	Outside Dia (O.D.)	Sch 160, Inside Dia (I.D.)	Sch 160, Lap Thickness (t)	Schedule 160, Wall Thickness (T)	XX Strong Wall Approx. Weight	XX Strong Wall, Inside Dia (I.D.)
1 1/2″ Stub Ends Long Type “A	1.5	2.875	2	1.9	1.338	0.281	0.281	2.98	1.1
1 1/2″ Stub Ends Long Type “A”	1.5	2.875	4	1.9	0.15	0.15	1.49	1.5	0.2
1 1/4″ Stub Ends Long Type “A	1.25	2.5	2	1.66	1.16	0.25	0.25	2.52	0.896
1 1/4″ Stub Ends Long Types “A”	1.25	2.5	4	1.66	0.14	0.14	1.26	1.278	0.191
1″ Stub Ends Long Types “A	1	2	2	1.315	0.815	0.25	0.25	1.76	0.599
1″ Stub Ends Long Types “A”	1	2	4	1.315	0.133	0.133	0.88	0.957	0.179
1/2″ Stub Ends Long Types “A	0.5	1.375	2	0.84	0.464	0.187	0.188	0.68	0.252
1/2″ Stubs Ends Long Types “A”	0.5	1.375	3	0.84	0.109	0.109	0.34	0.546	0.147
10″ Stubs Ends Long Types “A	10	12.75	5	10.75	8.5	1.125	1.125	–	–
10″ Stubs Ends Long Types “A”	10	12.75	10	10.75	0.365	0.365	54	9.75	0.5
12″ Stubs Ends Long Types “A	12	15	6	12.75	10.126	1.312	1.312	–	–
12″ Stubs Ends Long Types “A”	12	15	10	12.75	0.375	0.375	64.5	11.75	0.5
14″ Stubs Ends Long Types “A”	14	16.25	12	14	0.375	0.375	84	13	0.5
16″ Stubs Ends Long Types “A”	16	18.5	12	16	0.375	0.375	98	15	0.5
18″ Stubs Ends Long Types “A”	18	21	12	18	0.375	0.375	136	17	0.5
2 1/2″ Stubs Ends Long Types “A	2.5	4.125	2.5	2.875	2.125	0.375	0.375	8.8	1.771
2 1/2″ Stubs Ends Long Types “A”	2.5	4.125	6	2.875	0.203	0.203	4.4	2.323	0.276
2″ Stubs Ends Long Types “A	2	3.625	2.5	2.375	1.689	0.343	0.343	6.1	1.503
2″ Stubs Ends Long Types “A”	2	3.625	6	2.375	0.154	0.154	3.05	1.939	0.218
20″ Stubs Ends Long Types “A”	20	23	12	20	0.375	0.375	157	19	0.5
3 1/2″ Stubs Ends Long Types “A	3.5	5.5	3	4	–	–	–	15.5	2.728
3 1/2″ Stubs Ends Long Types “A”	3.5	5.5	6	4	0.226	0.226	7.75	3.364	0.318
3″ Stubs Ends Long Types “A	3	5	2.5	3.5	2.624	0.438	0.438	9.8	2.3
3″ Stubs Ends Long Types “A”	3	5	6	3.5	0.216	0.216	6.5	2.9	0.3
3/4″ Stubs Ends Long Types “A	0.75	1.688	2	1.05	0.612	0.218	0.219	0.94	0.434
3/4″ Stubs Ends Long Types “A”	0.75	1.688	3	1.05	0.113	0.113	0.47	0.742	0.154
4″ Stubs Ends Long Types “A	4	6.188	3	4.5	3.438	0.531	0.531	19.3	3.152
4″ Stubs Ends Long Types “A”	4	6.188	6	4.5	0.237	0.237	9.65	3.826	0.337
5″ Stubs Ends Long Types “A	5	7.313	3	5.563	4.313	0.625	0.625	32.66	4.063
5″ Stubs Ends Long Types “A”	5	7.313	8	5.563	0.258	0.258	16.33	4.813	0.375
6″ Stubs Ends Long Types “A	6	8.5	3.5	6.625	5.187	0.718	0.719	45.26	4.897
6″ Stubs Ends Long Types “A”	6	8.5	8	6.625	0.28	0.28	22.63	5.761	0.432
8″ Stubs Ends Long Types “A	8	10.625	4	8.625	6.813	0.906	0.906	59.71	6.875
8″ Stubs Ends Long Types “A”	8	10.625	8	8.625	0.322	0.322	34.12	7.625	0.5

Short Stub End Dimensions

Scroll to see all columns →

Product	Nom. Pipe Size	Diameter (G)	Length (J)	Outside Diameter (O.D.)	Schedule 5S Approx. Weight	Schedule 5S, Inside Diameter (I.D.)	Schedule 5S, Wall Thickness (T)
1 1/2″ Short Stubs Ends Short Type “C”	1.5	2.875	2	1.9	0.29	1.77	0.065
1 1/4″ Short Stubs Ends Short Type “C”	1.25	2.5	2	1.66	0.21	1.53	0.065
1″ Short Stubs Ends Short Type “C”	1	2	2	1.315	0.19	1.185	0.065
1/2″ Short Stubs Ends Short Type “C”	0.5	1.375	2	0.84	0.13	0.71	0.065
10″ Short Stubs Ends Short Type “C”	10	12.75	5	10.75	7.48	10.482	0.134
12″ Short Stubs Ends Short Type “C”	12	15	6	12.75	15	12.438	0.156
14″ Short Stubs Ends Short Type “C”	14	16.25	6	14	19.2	13.688	0.156
16″ Short Stubs Ends Short Type “C”	16	18.5	6	16	23.9	15.67	0.165
18″ Short Stubs Ends Short Type “C”	18	21	6	18	28.5	17.67	0.165
2 1/2″ Short Stubs Ends Short Type “C”	2.5	4.125	2.5	2.875	0.75	2.709	0.083
2″ Short Stubs Ends Short Type “C”	2	3.625	2.5	2.375	0.44	2.245	0.065
20″ Short Stubs End Short Type “C”	20	23	6	20	36.3	19.624	0.188
24″ Short Stubs Ends Short Type “C”	24	27.25	6	24	56	23.564	0.218
3″ Short Stubs End Short Type “C”	3	5	2.5	3.5	0.94	3.334	0.083
3/4″ Short Stubs Ends Short Type “C”	0.75	1.688	2	1.05	0.14	0.92	0.065
4″ Short Stubs End Short Type “C”	4	6.188	3	4.5	1.38	4.334	0.083
5″ Short Stubs Ends Short Type “C”	5	7.313	3	5.563	2.06	5.345	0.109
6″ Short Stub End Short Type “C”	6	8.5	3.5	6.625	2.75	6.407	0.109
8″ Short Stub End Short Type “C”	8	10.625	4	8.625	3.88	8.407	0.109

Lap Joint Stub End Inch Dimensions as per ASME B16.9

Scroll to see all columns →

Nominal Pipe Size (NPS)	Outside Diameter at Bevel	Outside Diameter at Bevel_2	Long Pattern	Short Pattern	Radius of Fillet	Diameter of Lap
Nominal Pipe Size (NPS)	Max	Min	F	F	R	G
1/2	22.8	20.5	76	51	3	35
3/4	28.1	25.9	76	51	3	43
1	35.0	32.6	102	51	3	51
1-1/4	43.6	41.4	102	51	5	64
1-1/2	49.9	47.5	102	51	6	73
2	62.4	59.5	152	64	8	92
2-1/2	75.3	72.2	152	64	8	105
3	91.3	88.1	152	64	10	127
3-1/2	104.0	100.8	152	76	10	140
4	116.7	113.5	152	76	11	157
5	144.3	140.5	203	76	11	186
6	171.3	167.5	203	89	13	216
8	222.1	218.3	203	102	13	270
10	277.2	272.3	254	127	13	324
12	328.0	323.1	254	152	13	381
14	359.5	354.8	305	152	13	413
16	411.0	405.6	305	152	13	470
18	462	456	305	152	13	533
20	514	507	305	152	13	584
22	565	558	305	152	13	641
24	616	609	305	152	13	692

›Tolerances

Din 2642 Stub End Tolerance

Scroll to see all columns →

Nominal Pipe Size	1/2 up to 2½	3 to 3½	4	5 to 8	10 to 18	20 to 24
Outside Diameter at Welding End (OD)	0.8	0.8	0.8	+ 1.6 / - 0.8	+ 2.29 / - 0.76	+ 3.05 / - 0.76
Overall Length (F)	1.6	1.6	1.6	1.6	2	2
Outside Diameter of Lap (G)	+ 0 / - 0.76	+ 0 / - 0.76	+ 0 / - 0.76	+ 0 / - 0.76	+ 0 / - 1.6	+ 0 / - 1.6
Thickness of Lap (T)	+ 1.52 / - 0	+ 1.52 / - 0	+ 1.52 / - 0	+ 1.52 / - 0	+ 1.52 / - 0	+ 1.52 / - 0
Fillet Radius of Lap (R)	+ 0 / - 0.76	+ 0 / - 0.76	+ 0 / - 1.6	+ 0 / - 1.6	+ 0 / - 1.6	+ 0 / - 1.6
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness	Not less than 87.5% of Nominal Wall Thickness	Not less than 87.5% of Nominal Wall Thickness	Not less than 87.5% of Nominal Wall Thickness	Not less than 87.5% of Nominal Wall Thickness	Not less than 87.5% of Nominal Wall Thickness

ASME B16.9 Stub End

Get a Price

Request a quote for this item

Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.

Request a Quote for ASME B16.9 Stub End

Contact

Send us the spec

Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.

Enquiry FormReply same working day

Direct Contact

Head Office

Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India

Phone / WhatsApp

+91 93240 06771

exportompmo@gmail.com

Working Hours

Monday – Saturday8:00 AM – 8:00 PM

SundayClosed
