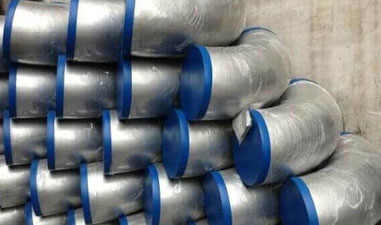

ASME B16.9 Elbow

ASME B16.9 Elbow Manufacturers in India, Buy Stainless Steel Long Radius Elbow Mumbai. Check Carbon Steel 45 Degree Pipe Elbow Dimension, ANSI B16.9 SR Pipe Elbow Weight, Alloy Steel 3d elbow Price.

Types of Fititngs

On This Page

Specification List of ASME B16.9 Elbow 45 Deg Elbow Dimensions In MM 90 Degree Elbow In Inch Dimensions 180 Degree Steel Pipe Elbow Dimensions ASME B16.9 Long And Short Radius Elbow Dimensions Weight Chart of ASME B16.9 Elbow Tolerances Of 3D Short Radius Elbow Available Material of 45 Degree Pipe Elbow Weight Chart of SS Pipe Bend Equivalent Length of Stainless Steel Bend Check the Material List supplied in Europe, Africa

Gallery

ASME B16.9 Elbow in Detail

Technical Data

Full Specifications

›Technical Data

Specification List of ASME B16.9 Elbow

col_1	col_2
Chek Specifications	ASME B16.9
Standard Size Of:	SLMS BW Pipe Fittings To 1/2″ – 10″ / Weld BW Pipe Fitting To 1/2″ – 48″
Types Of Elbow	BW / SMLS / Welded / Fabricated Fittings
Check Standard:	ASME B16.47, ASME B16.38, MSS-SP-43, ANSI B16.28, ASME B16.9, BS, GB, ISO, DIN, ASME B16.25, JISB2313, BS4504, BS4504, MSS SP-75 DIN2605, JISB2311, JISB2312, BS1560, BS10
Industries For Use	Petrochemical Industry / Nuclear Power Plant / Oil And Gas Industry /
Bending Radius :	Radius=1D, 2D, 3D, 5D, 6D, 8D, 10D
Thickness Chart:	SCH10, 20, 30, STD 40, 60, XS, 80, 100, 120, 140
Export to	Ireland, Indonesia, Ukraine, Oman, Dubai, Singapore, Korea, Iran, India, Thailand, Egypt, Saudi Arabia, Spain, Brazil, Canada, USA, Peru, etc
Manufacturers Process :	Cast, Marking, Push, Press, forge, Packing In Boxes For Sale.
Mills And Origin :	USA, Japanese, Indian, Russian

Available Material of 45 Degree Pipe Elbow

col_1	col_2
Stainless Steel	ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel	ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Duplex Steel	ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy	ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
Low Temperature Carbon Steel	ASTM A420 WPL3, A420 WPL6
Alloy Steel	ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Equivalent Length of Stainless Steel Bend

Fittings	Rigid PVC/HDPE / e = 0.005 mm	GRP/FRP / e = 0.02 mm	Commercial Steel / e = 0.05 mm	Spiral Weld Steel / e = 0.1 mm

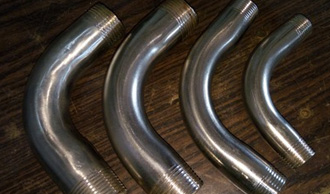

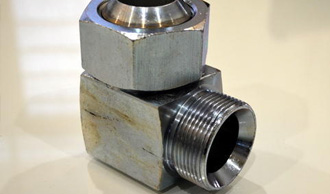

Threaded bends
90° elbow, r/d=1	37	34	30	26
45° elbow, r/d=1	20	18	16	14
Welded bends
90° elbow, sharp bend	69	63	55	49
90° elbow, r/d=1	23	21	19	16
90° elbow, r/d=1.5	17	15	13	12
90° elbow, r/d=2	14	13	11	10
45° elbow, sharp bend	22	20	18	16
45° elbow, r/d=1	17	16	14	12
45° elbow, r/d=1.5	12	11	9.4	8.3
Threaded tees
Tee, straight through	25	23	20	18
Tee, through branch	75	68	60	53
Welded tees
Tee, square, straight through	0	0	0	0
Tee, square, through branch	87	79	70	61
Tee, radiused, straight through	13	12	10	9
Tee, radiused, through branch	72	65	57	50
Valves / Strainers
Globe valve, full open	400	370	320	280
Gate valve, full open	9	8.5	7.5	6.6
Ball valve, full bore	3.3	3.0	2.6	2.3
Ball valve, reduced bore	31	28	25	22
Plug valve, 2-way	21	19	17	15
Plug valve, 3-way, / straight through	36	32	29	25
Plug valve, 3-way, / through branch	100	95	84	74
Diaphragm valve, weir type	200	190	160	140
Butterfly valve	46	42	37	32
Lift check valve	700	640	560	490
Swing check valve	120	110	95	85
Wafer disk check valve	530	480	420	370
Y-strainer, clean	300	280	250	220
Buy directly from ASME B16.9 Pipe Bend Manufacturer in India for finest deals	Buy directly from ASME B16.9 Pipe Bend Manufacturer in India for finest deals	Buy directly from ASME B16.9 Pipe Bend Manufacturer in India for finest deals	Buy directly from ASME B16.9 Pipe Bend Manufacturer in India for finest deals	Buy directly from ASME B16.9 Pipe Bend Manufacturer in India for finest deals

Check the Material List supplied in Europe, Africa

col_1	col_2
B16.9 butt-welded 45 elbow 4 6 Inch	Turkey, Canada, Dubai, Europe
ASME B16.9 SCH80 90 DEGREE LR SEAMLESS Butt Weld Elbow	South Africa, Los Alamos -Mexico, Malaysia, United Kingdom -UK
90 degree ASME B16.9 stainless 304	Japan, Thailand, Malaysia, Czechia
90 degree LR BW elbow	France, Hong Kong, UAE, Oman
sch80 6in 90 degree bend elbows	Canada, Philippines, Belgium, Dammam -KSA
Long radius asme/ansi b16.9 pipe elbow 90 degree	Germany, Iran, Singapore, Chile
ASME B16.9 304L Short Radius Elbow	Australia, NY 12203 (USA), China, Sweden
22.5 degree pipe elbow 6 inch	Europe, Norway, Malaysia, United Arab Emirates (UAE)
ASME B16.9 DIN 2605 Sanitary Elbow	Spain, Mexico, UK, Singapore
90 Degree stainless steel elbow	Taiwan, Kuwait, Brazil, South Africa
DN150 sch80 long radius Elbow	USA, Romania, Ellington -United States, Netherlands
B16.9 1/2"-24" 180 degree elbow	Colombia, Bangladesh, Finland, Malaysia
ANSI/ASME B16.9 ELBOW LR/SR 45/90/180 DEG SCH40 /80	Saudi Arabia (KSA), Malaysia, Singapore, Egypt
1/2inch elbow	Italy, Poland, Malaysia, Philippines
4 inch stainless steel 90 degree elbow	Malaysia, Europe, Thailand, Qatar
Carbon Steel 90 Degree Long Radius Elbow	Indonesia, UK, Nigeria, Philippines
90 degree long radius elbow r=1.5d ASME B16.9	South Korea, Singapore, Singapore, Bahrain
22.5/45/90/130 degree malleable iron elbow	Malaysia, Malaysia, Philippines, UK
10 inch 90 degree cs elbow	Malaysia, Russia, UAE, Malaysia

›Dimensions & Weight

45 Deg Elbow Dimensions In MM

NPS	O.D. / D	ASME B16.9 45 deg / LR / Center-to-End / A	ASME B16.9 45 deg / LR / Center-to-End / B	ASME B16.9 45 deg / 3D / Center-to-End / A	ASME B16.9 45 deg / 3D / Center-to-End / B
1/2	21.3	38	16	–	–
3/4	26.7	38	19	57	24
1	33.4	38	22	76	31
1¼	42.2	48	25	95	39
1½	48.3	57	29	114	47
2	60.3	76	35	152	63
2½	73	95	44	190	79
3	88.9	114	51	229	95
3½	101.6	133	57	267	111
4	114.3	152	64	305	127
5	141.3	190	79	381	157
6	168.3	229	95	457	189
8	219.1	305	127	610	252
10	273	381	159	762	316
12	323.8	457	190	914	378
14	355.6	533	222	1067	441
16	406.4	610	254	1219	505
18	457	686	286	1372	568
20	508	762	318	1524	632
22	559	838	343	1676	694
24	610	914	381	1829	757
26	660	991	406	1981	821
28	711	1067	438	2134	883
30	762	1143	470	2286	964
32	813	1219	502	2438	1010
34	864	1295	533	2591	1073
36	914	1372	565	2743	1135
38	965	1448	600	2896	1200
40	1016	1524	632	3048	1264
42	1067	1600	660	3200	1326
44	1118	1676	695	3353	1389
46	1168	1753	727	3505	1453
48	1219	1829	759	3658	1516

90 Degree Elbow In Inch Dimensions

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7
inch	ND	mm	Center to center	Radius	Center to end	Back to face
D	D	D	O	A	B	K
1/2	15	21,34	76,20	38,10	15,87	47,62
3/4	20	26,67	57,15	28,57	11,11	42,86
1	25	33,40	76,20	38,10	22,22	55,56
1 1/4	32	42,16	95,25	47,60	25,40	69,85
1 1/2	40	48,26	114,30	57,15	28,57	82,55
2	50	60,32	152,40	76,20	34,92	106,40
2 1/2	65	73,02	190,50	95,25	44,45	131,80
3	80	88,90	228,60	114,30	50,80	158,75
3 1/2	90	101,60	266,70	133,35	57,15	184,15
4	100	114,30	304,80	152,40	63,50	209,55
5	125	141,30	381,00	190,50	79,38	261,90
6	150	168,27	457,20	228,60	95,25	312,70
8	200	219,07	609,60	304,80	127,00	414,30
10	250	273,05	762,00	381,00	158,75	517,50
12	300	323,85	914,40	457,20	190,50	619,10
14	350	355,60	1066,80	533,40	222,25	711,20
16	400	406,40	1219,20	609,60	254,00	812,80
18	450	457,20	1371,60	685,80	285,74	914,40
20	500	508,00	1524,00	762,00	317,50	1016,00
22	550	558,80	1676,40	838,20	342,90	1117,60
24	600	609,60	1828,80	914,40	381,00	1219,20
28	700	711,20	2133,60	1066,80	441,90	1422,40
Dimensions in mm.	Dimensions in mm.	Dimensions in mm.	Dimensions in mm.	Dimensions in mm.	Dimensions in mm.	Dimensions in mm.

180 Degree Steel Pipe Elbow Dimensions

col_1	col_2	col_3	col_4	col_5	col_6
NPS	O.D. / D	180 Degree Elbow Long Radius	180 Degree Elbow Long Radius	180 Degree Short Radius	180 Degree Short Radius
NPS	O.D. / D	Center to / Center / O	Back to / Face / K	Center to / Center / O	Back to / Face / K
1/2	21.3	76	48	…	…
3/4	26.7	76	51	…	…
1	33.4	76	56	51	41
1.1/4	42.2	95	70	64	52
1.1/2	48.3	114	83	76	62
2	60.3	152	106	102	81
2.1/2	73	190	132	127	100
3	88.9	229	159	152	121
3.1/2	101.6	267	184	178	140
4	114.3	305	210	203	159
5	141.3	381	262	254	197
6	168.3	457	313	305	237
8	219.1	610	414	406	313
10	273	762	518	508	391
12	323.8	914	619	610	467
14	355.6	1067	711	711	533
16	406.4	1219	813	813	610
18	457	1372	914	914	686
20	508	1524	1016	1016	762
22	559	1676	1118	1118	838
24	610	1829	1219	1219	914

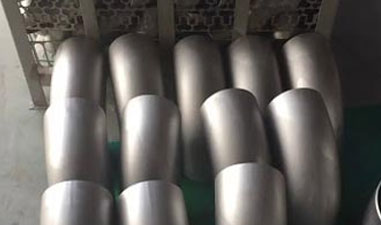

ASME B16.9 Long And Short Radius Elbow Dimensions

NPS	O.D. / D	45 deg / LR Elbow / Center-to-End / A	45 deg SR Elbow / 3D / Center-to-End / A
1/2	21.3	38	-
3/4	26.7	38	57
1	33.4	38	76
1¼	42.2	48	95
1½	48.3	57	114
2	60.3	76	152
2½	73	95	190
3	88.9	114	229
3½	101.6	133	267
4	114.3	152	305
5	141.3	190	381
6	168.3	229	457
8	219.1	305	610
10	273	381	762
12	323.8	457	914
14	355.6	533	1067
16	406.4	610	1219
18	457	686	1372
20	508	762	1524
22	559	838	1676
24	610	914	1829
26	660	991	1981
28	711	1067	2134
30	762	1143	2286
32	813	1219	2438
34	864	1295	2591
36	914	1372	2743
38	965	1448	2896
40	1016	1524	3048
42	1067	1600	3200
44	1118	1676	3353
46	1168	1753	3505
48	1219	1829	3658

Weight Chart of ASME B16.9 Elbow

Nominal Pipe Size	LBS	Kilogram
1/2	0.09	0.04
3/4	0.09	0.04
1	0.25	0.11
1.1/4	0.38	0.17
1.1/2	0.4	0.18
2	0.81	0.37
2.1/2	1.75	0.79
3	2.63	1.19
3.1/2	3.5	1.59
4	4.5	2.04
5	7.5	3.4
6	12	5.44
8	23	10.43
10	43	19.5
12	62	28.12
14	80	36.29
16	100	45.36
18	126	57.15
20	160	72.57
22	197	89.36
24	238	107.95
26	275	124.74
30	367	166.47
36	531	240.86
NPS	LBS	KG

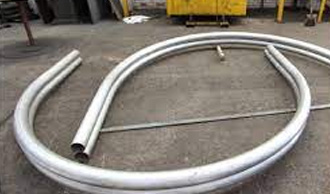

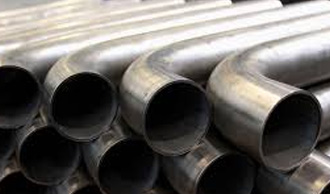

Weight Chart of SS Pipe Bend

NPS (A)	OD	Wall Thickness	Wt/Ft
2.5 NPS	2.875	0.276	7.66
3 NPS	3.5	0.300	10.25
4 NPS	4.5	0.230	11.35
4 NPS	4.5	0.337	14.98
5 NPS	5.563	0.258	14.62
5 NPS	5.563	0.375	20.78
6 NPS	6.625	0.280	18.97
6 NPS	6.625	0.432	28.57
8 NPS	8.625	0.322	28.55
8 NPS	8.625	0.500	43.39
10 NPS	10.75	0.365	40.48
10 NPS	10.75	0.500	54.74
12 NPS	12.75	0.375	49.56
12 NPS	12.75	0.500	65.42
14 NPS	14	0.375	54.57
14 NPS	14	0.500	72.09
16 NPS	16	0.375	62.58
16 NPS	16	0.500	82.77
18 NPS	18	0.500	95.64
20 NPS	20	0.500	106.57

›Tolerances

Tolerances Of 3D Short Radius Elbow

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
For all fittings	For all fittings	For all fittings	For all fittings	Elbow 90 Deg / Elbow 45 Deg	180 Deg Returns Elbow	180 Deg Returns Elbow	180 Deg Returns Elbow
Nominal Size (NPS)	Outside Ø / at Bevel	Inside Ø / at End	Wall Thickness / t / t1	Center to End Dim. A-B-C-M	Center to Center Dim. / O	Back to Face Dim. / K	Align- ment of Ends / U
1/2 a 2 1/2	1	0,8	Not	2	7	7	1
3 a 3 1/2	1	1,6	less	2	7	7	1
4	+2 -1	1,6	than	2	7	7	1
5 a 6	+3 -1	1,6	87,50%	2	7	7	1
8	2	1,6	of nominal	2	7	7	1
10	+4 -3	3,2	tickness	2	7	7	2
12 a 18	+4 -3	3,2		3	10	7	2
20 a 24	+6 -5	4,8		3	10	7	2
26 a 30	+7 -5	4,8		3	…..	…..	…..
32 a 48	+7 -5	4,8		5	…..	…..	…..
