ASME B16.9 End Cap
Leading ASME B16.9 End Cap Manufacturer In India, Refer Stainless/ Carbon Steel Pipe Cap Dimensions, Get Copper Pipe End Cap At Best Price, Check 4 Inch End Cap Weight, Brass End Cap Tolerance.
Types of Fititngs
Gallery

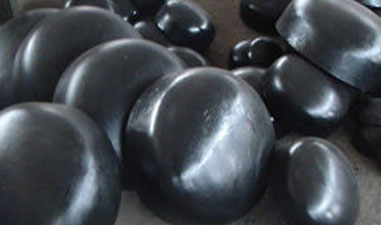

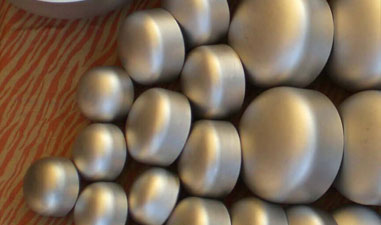

ASME B16.9 End Cap in Detail
Technical Data
Full Specifications
›Technical Data
Spec Chart of ASME B16.9 End Cap
| col_1 | col_2 |
|---|---|
| Specification : | ASME B16.9 End Cap |
| Size Chart : | SLMS BW Cap : To 1/2″ – 10″ / Weld Pipe Cap : To 1/2″ – 48″ |
| Type : | SMLS / Welded / BW / Fabricated / ERW |
| Manufacturers Process : | Push, Press, forge, Cast, Marking, Packing In Boxes For Sale. |
| Export to | USA, Saudi Arabia, Egypt, Korea, Spain, Dubai, Ireland, Iran, Ukraine,Brazil, Indonesia, Singapore, Canada, India, Oman, Thailand, Peru, etc |
| Size Range : | ½" NB to 24" NB in Schedule 10s, Schedule40s, Schedule 80s, Schedule 160s |
| Standard : | ASME B16.9, BS10, ANSI B16.28, ASME B16.25, MSS SP-75 DIN2605, JISB2312, JISB2313, ASME B16.47, ASME B16.38, MSS-SP-43, JISB2311, BS4504, BS4504, BS1560, BS, GB, ISO, DIN |
| Origin And Mills : | Russian, India, Japanese, USA |
| Connection Type : | Welding |
| Industries For Use : | Nuclear Power Plant / Oil And Gas Industry / Petrochemical Industry / |
| Thickness :: | SCH10, 20, 30, STD 40, 60, XS, 80, 100, 120, 140 |
Check Material of Steel Pipe End Cap
| col_1 | col_2 |
|---|---|
| Stainless Steel | ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Carbon Steel | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Duplex Steel | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
| Nickel Alloy | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) |
| Low Temperature Carbon Steel | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
We Supply Regular Consignments To Below Places
| col_1 | col_2 |
|---|---|
| ASME b16.9 butt weld pipe cap | USA, Romania, Ellington -United States, Netherlands |
| 3 Aluminum Pipe Cap | France, Hong Kong, UAE, Oman |
| BW tube cap ASTM B16.9 | Taiwan, Kuwait, Brazil, South Africa |
| 2'' SCH10 ASME b16.9 seamless cap | Japan, Thailand, Malaysia, Czechia |
| 1/2"-72" sch80 seamless cap | South Africa, Los Alamos -Mexico, Malaysia, United Kingdom -UK |
| ASME B16.9 Black Carbon Steel cap 8inch sch60 | Malaysia, Europe, Thailand, Qatar |
| End Cap 6 Inch Stainless Steel | Malaysia, Russia, UAE, Malaysia |
| 16" End Cap Sch120 Asme B16.9 | Australia, NY 12203 (USA), China, Sweden |
| ASME B16.9 butt welding stainless steel end cap | Canada, Philippines, Belgium, Dammam -KSA |
| 36" Carbon Steel Pipe End Cap | Malaysia, Malaysia, Philippines, UK |
| pipe cap sch80 | Turkey, Canada, Dubai, Europe |
| Large Diameter Carbon Steel 48 inch Pipe End Cap | Spain, Mexico, UK, Singapore |
| 48Inch SCH40 End Cap BW B16.9 | Germany, Iran, Singapore, Chile |
| 316L large size 12 inch pipe end cap | South Korea, Singapore, Singapore, Bahrain |
| High pressure 12 inch steel pipe cap | Colombia, Bangladesh, Finland, Malaysia |
| Asme B16.9 Large Steel Pipe End Caps | Saudi Arabia (KSA), Malaysia, Singapore, Egypt |
| 3" Sch80 stainless steel pipe end cap | Europe, Norway, Malaysia, United Arab Emirates (UAE) |
| 4 inch stainless steel butt welded sch80 pipe end cap | Italy, Poland, Malaysia, Philippines |
| dish heads tank end cap for vessel | Indonesia, UK, Nigeria, Philippines |
›Dimensions & Weight
Aluminum Pipe Cap Dimensions In MM
| Normal Pipe Size | O.D. / D | LENGTH / H | LENGTH / H1 |
|---|---|---|---|
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 25 | 25 |
| 1 | 33.4 | 38 | 38 |
| 1.1/4 | 42.2 | 38 | 38 |
| 1.1/2 | 48.3 | 38 | 38 |
| 2 | 60.3 | 38 | 44 |
| 2.1/2 | 73 | 38 | 51 |
| 3 | 88.9 | 51 | 64 |
| 3.1/2 | 101.6 | 64 | 76 |
| 4 | 114.3 | 64 | 76 |
| 5 | 141.3 | 76 | 89 |
| 6 | 168.3 | 89 | 102 |
| 8 | 219.1 | 102 | 127 |
| 10 | 273 | 127 | 152 |
| 12 | 323.8 | 152 | 178 |
| 14 | 355.6 | 165 | 191 |
| 16 | 406.4 | 178 | 203 |
| 18 | 457 | 203 | 229 |
| 20 | 508 | 229 | 254 |
| 22 | 559 | 254 | 254 |
| 24 | 610 | 267 | 305 |
| 26 | 660 | 267 | … |
| 28 | 711 | 267 | … |
| 30 | 762 | 267 | … |
| 32 | 813 | 267 | … |
| 34 | 864 | 237 | … |
| 36 | 914 | 267 | … |
| 38 | 965 | 305 | … |
| 40 | 1016 | 305 | … |
| 42 | 1067 | 305 | … |
| 44 | 1118 | 343 | … |
| 46 | 1168 | 343 | … |
| 48 | 1219 | 343 | … |
Carbon Steel Pipe Cap Weight Chart
| Normal Pipes Size | STD | XS | Schedule 160 | XXS |
|---|---|---|---|---|
| 1 | 0.09 | 0.14 | 0.18 | 0.23 |
| 1.1/4 | 0.14 | 0.18 | 0.23 | 0.34 |
| 1.1/2 | 0.18 | 0.23 | 0.27 | 0.41 |
| 2 | 0.27 | 0.34 | 0.57 | 0.68 |
| 2.1/2 | 0.41 | 0.45 | 0.79 | 1.13 |
| 3 | 0.68 | 0.79 | 1.32 | 1.81 |
| 3.1/2 | 0.91 | 1.13 | – | 2.72 |
| 4 | 1.13 | 1.36 | 2.68 | 3.4 |
| 5 | 2.04 | 2.49 | 4.54 | 5.44 |
| 6 | 2.95 | 4.08 | 6.8 | 8.16 |
| 8 | 5.44 | 7.26 | 14.06 | 13.61 |
| 10 | 9.07 | 11.34 | 25.85 | – |
| 12 | 13.61 | 16.33 | 43.09 | – |
| 14 | 16.33 | 20.41 | – | – |
| 16 | 18.14 | 24.49 | – | – |
| 18 | 24.49 | 32.66 | – | – |
| 20 | 34.02 | 39.01 | – | – |
| 22 | 42.64 | 56.7 | – | – |
| 24 | 43.54 | 58.97 | – | – |
| 26 | 53.98 | 72.12 | – | – |
| 30 | 78.02 | 103.87 | – | – |
| NPS | STD | XS | SCH 160 | XXS |
View Dimensional Tolerances Of Brass End Cap
| col_1 | col_2 | col_3 | col_4 | col_5 |
|---|---|---|---|---|
| For all fittings | For all fittings | For all fittings | For all fittings | Caps |
| Nominal Pipe Size (NPS) | Outside Ø at Bevel | Inside Ø at End | Wall Thickness / t / t1 | Overall Length E |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 4 |
| 3 a 3 1/2 | 1 | 1,6 | less | 4 |
| 4 | +2 -1 | 1,6 | than | 4 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 7 |
| 8 | 2 | 1,6 | of nominal | 7 |
| 10 | +4 -3 | 3,2 | tickness | 7 |
| 12 a 18 | +4 -3 | 3,2 | 7 | |
| 20 a 24 | +6 -5 | 4,8 | 7 | |
| 26 a 30 | +7 -5 | 4,8 | 10 | |
| 32 a 48 | +7 -5 | 4,8 | 10 |
