Stainless Steel Threaded Fittings Manufacturer in India in Detail

Technical Data

Full Specifications

›Technical Data

Specification Chart of Stainless Steel Threaded Fittings

col_1	col_2
Specification :	Stainless Steel Forged Fittings
Pressure:	Rating Of Socket, Threaded: 6000 LBS, 3000 LBS, 9000 LBS
Forged Type :	BSPT, NPT (Threaded), BSPP.
Mills And Origin :	Russian, USA, Europe, India, Japanese
Export to	Singapore, Indonesia, Dubai, Brazil, Ukraine, India, Thailand, Korea, Oman, Spain, Canada, USA, Ireland, Iran, Egypt, Saudi Arabia, Peru, etc
Connection Type :	Welding
Dimensions Class:	2000#, 3000#, 6000#, 9000#

Equivalent of ASTM A182 Threaded Elbow

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	3304S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 304H	1.4301	S30409	–	–	–	–	–
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	–	X8CrNi25-21
SS 310H	–	S31009	–	–	–	–	–
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H	1.4401	S31609	–	–	–	–	–
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2
SS 317	1.4449	S31700	SUS 317	–	–	–	–
SS 317L	1.4438	S31703	SUS 317L	–	–	–	X2CrNiMo18-15-4
SS 321	1.4541	S32100	SUS 321	–	–	–	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	–	–	–	X12CrNiTi18-9
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10
SS 347H	1.4961	S34709	SUS 347H	–	–	–	X6CrNiNb18-12
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

Class & Sizes of SS Threaded Fittings

Description	Class Designation	Class Designation_2	Class Designation_3
Description	2000	3000	6000
Elbows 45 and 90 degrees / Tees, Crosses, Coupling / Half-Coupling, Cap	1/2 - 4	1/2 - 2	1/2 - 2
Elbows 45 and 90 degrees / Tees, Crosses, Coupling / Half-Coupling, Cap	1/2 - 4	1/2 - 2	1/2 - 2
Elbows 45 and 90 degrees / Tees, Crosses, Coupling / Half-Coupling, Cap	1/2 - 4	1/2 - 2	1/2 - 2
Pipe Wall	SCH 80 / XS	SCH 160	XXS

Look who buy from Us and What

col_1	col_2
1/2 NPT 6000 PSI Stainless steel Male Thread 90 Degree Elbow	Chile, Iran, Canada, Philippines
Stainless steel BSP thread hose fittings	United Arab Emirates (UAE), Norway, Romania, Europe
Hydraulic Stainless Steel Union NPT Threaded	Netherlands, Russia, Malaysia, Sweden
304 SS NPT threaded pipe fittings	Egypt, Mexico, Los Alamos -Mexico, Malaysia
SS316 NPT Threaded Full Coupling	United Kingdom -UK, Malaysia, NY 12203 (USA), Singapore
stainless steel threaded Nipple Tee for water supply	UK, Poland, Philippines, Dammam -KSA
316 stainless steel 1/2" BSP/NPT female thread coupling	Singapore, Malaysia, Europe, Qatar
SS304 female thread equal tee 3 Way	Malaysia, Japan, Thailand, Czechia
stainless steel 150lb threaded 45 degree elbow	China, Colombia, Bangladesh, Malaysia
threaded steel stainless pipe fittings	Philippines, Taiwan, Kuwait, South Africa
316 Stainless Steel NPT Threaded Pipe Fittings	Malaysia, South Korea, Singapore, Bahrain
1/4 inch NPT Thread 304/316 Stainless Steel Male Adapter	Belgium, Indonesia, UK, Philippines
316L NPT Male Threaded Stainless Steel Screw Pipe Fittings	Thailand, France, Hong Kong, Oman
stainless steel threaded coupling	Malaysia, Germany, Turkey, Malaysia
1/8" DN6 BSP Female Thread Stainless Steel 201 Fittings	Finland, USA, Malaysia, Dubai
stainless steel threaded reducer insert bushing	Brazil, Saudi Arabia (KSA), Spain, UK
Stainless Steel Internal Thread Bushing	Singapore, South Africa, Europe, UAE
1/4 Npt 304 Stainless Steel Nipple	Nigeria, Australia, Canada, Ellington -United States
Stainless Steel Union NPT Threaded nipple aisi 304	UAE, Malaysia, Italy, Singapore

›Material Properties

Chemical Equation of ASTM A182 Stainless Steel Threaded Cap

Scroll to see all columns →

Grade	Grade_2	C	Mn	Si	P	S	Cr	Mo	Ni	N	Ti	Fe
304	min.						18.0		8.0
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10
304L	min.						18.0		8.0
304L	max.	0.030	2.0	0.75	0.045	0.030	20.0		12.0	0.10
304H	min.	0.04					18.0		8.0
304H	max.	0.010	2.0	0.75	0.045	0.030	20.0		10.5
SS 310		0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 26.00	0.10 max	19.00 21.00	54.7 min
SS 310S		0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00	0.75 max	19.00 21.00	53.095 min
SS 310H		0.04 0.10	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00		19.00 21.00	53.885 min
316	min.						16.0	2.03.0	10.0
316	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316L	min.						16.0	2.03.0	10.0
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316TI		0.08 max	10.00 14.00	2.0 max	0.045 max	0.030 max	16.00 18.00	0.75 max	2.00 3.00
317		0.08 max	2 max	1 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00				57.845 min
SS 317L		0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00	11.00 15.00			57.89 min
SS 321		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	5(C+N) 0.70 max
SS 321H		0.04 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	4(C+N) 0.70 max
347/ 347H		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 20.00		9.0013.00
410	min.						11.5
410	max.	0.15	1.0	1.00	0.040	0.030	13.5		0.75
446	min.						23.0			0.10
446	max.	0.2	1.5	0.75	0.040	0.030	30.0		0.50	0.25
904L	min.						19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

Mechanical Behaviour of ASME B16.11 SS Half Coupling

col_1	col_2	col_3	col_4	col_5	col_6
Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
304H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	8.0 g/cm3	1399 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
317	7.9 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
321	8.0 g/cm3	1457 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	8.0 g/cm3	1454 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
904L	7.95 g/cm3	1350 °C (2460 °F)	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %

›Dimensions & Weight

Dimensions of Stainless Steel Threaded Fittings

DN-NPT	Major Diameter / mm	Tapping / Drill Size mm /	TPI	Pitch / mm
1/16"	7.895	6.00	27	0.941
1/8"	10.242	8.25	27	0.941
1/4"	13.616	10.70	18	1.411
3/8"	17.055	14.10	18	1.411
1/2"	21.223	17.40	14	1.814
3/4"	26.568	22.60	14	1.814
1"	33.228	28.50	11.5	2.209
1¼"	41.985	37.00	11.5	2.209
1½"	48.054	43.50	11.5	2.209
2"	60.092	55.00	11.5	2.209
2½"	72.699	65.50	8	3.175
3"	88.608	81.50	8	3.175
3½"	101.316	94.30	8	3.175
4"	113.973	107.00	8	3.175
5"	141.300	134.384	8	3.175
6"	168.275	161.191	8	3.175
8"	219.075	211.673	8	3.175
10"	273.050	265.311	8	3.175
12"	323.850	315.793	8	3.175

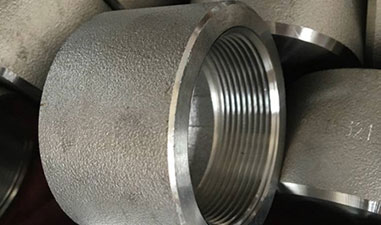

Metric Dimensions of ASME B16.11 SS Threaded Cap

NPS	P	D	G	B	L2
1/8	19	16	4.8	6.4	6.7
1/4	25	19	4.8	8.1	10.2
3/8	25	22	4.8	9.1	10.4
1/2	32	28	6.4	10.9	13.6
3/4	37	35	6.4	12.7	13.9
1	41	44	9.7	14.7	17.3
1-1/4	44	57	9.7	17	18
1-1/2	44	64	11.2	17.8	18.4
2	48	76	12.7	19	19.2
2-1/2	60	92	15.7	23.6	28.9
3	65	108	19	25.9	30.5
4	68	140	22.4	27.7	33
NPS	P	D	G	B	L2

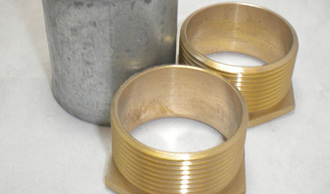

Dimensions of of Stainless Steel Bushes

Scroll to see all columns →

Size	1/8"	1/4"	3/8"	1/2"	3/4"	1"	1 1/4"	1 1/2"	2"	2 1/2"	3"	4"
I		14.5	18	22	27	34	42.7	48.5	60.5	78	91	116
J		14.5	16	20	21	24	27	27	31	34	37.5	44

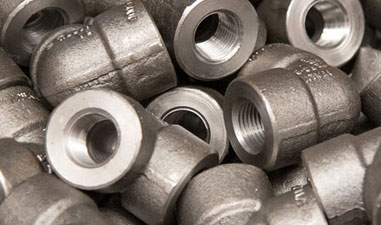

SS Threaded 90 Degree Elbows Dimension Table

NPS	A	H	G	B	L2
1/8	21	22	3.18	6.4	6.7
1/4	21	22	3.18	8.1	10.2
3/8	25	25	3.18	9.1	10.4
1/2	28	33	3.18	10.9	13.6
3/4	33	38	3.18	12.7	13.9
1	38	46	3.68	14.7	17.3
1-1/4	44	56	3.89	17	18
1-1/2	51	62	4.01	17.8	18.4
2	60	75	4.27	19	19.2
2-1/2	76	92	5.61	23.6	28.9
3	86	109	5.99	25.9	30.5
4	106	146	6.55	27.7	33
NPS	A	H	G	B	L2
