Stainless Steel Pipe Elbow Manufacturer in India

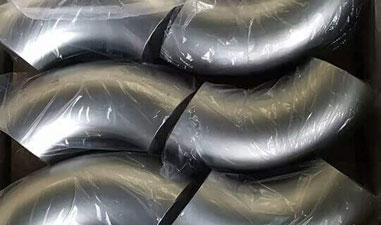

A leading Stainless Steel Pipe Elbow manufacturer in India, best price of SS Short Radius Elbow in Mumbai. Refer Price List, sizes and Weigh Chart of ASTM A403 Long Radius Elbow

Stainless Steel

On This Page

Standard Specification of Stainless Steel Pipe Elbow Chemical Equation of Stainless Steel Tubing Elbows Mechanical Characteristics of SS pipe elbow Equivalent Material of A403 SS double wall stove pipe elbow Dimensions Table Of SS Long Radius Elbow Dimensional Tolerances Of Stainless Steel Sch 40 Elbow Weight Chart of Stainless Elbow Fittings

Gallery

Stainless Steel Pipe Elbow Manufacturer in India in Detail

Technical Data

Full Specifications

›Technical Data

Standard Specification of Stainless Steel Pipe Elbow

col_1	col_2
Chek Specifications	ASME B16.9
Standard Size Of:	SLMS BW Pipe Fittings To 1/2″ – 10″ / Weld BW Pipe Fitting To 1/2″ – 48″
Industries For Use	Petrochemical Industry / Nuclear Power Plant / Oil And Gas Industry /
Bending Radius :	Radius=1D, 2D, 3D, 5D, 6D, 8D, 10D
Types Of Elbow	BW / SMLS / Welded / Fabricated Fittings
Check Standard Of Pipe Elbow:	ASME B16.47, ASME B16.38, MSS-SP-43, ANSI B16.28, ASME B16.9, BS, GB, ISO, DIN, ASME B16.25, JISB2313, BS4504, BS4504, MSS SP-75 DIN2605, JISB2311, JISB2312, BS1560, BS10
Thickness Chart:	SCH10, 20, 30, STD 40, 60, XS, 80, 100, 120, 140
Export to	Ireland, Indonesia, Ukraine, Oman, Dubai, Singapore, Korea, Iran, India, Thailand, Egypt, Saudi Arabia, Spain, Brazil, Canada, USA, Peru, etc
Manufacturers Process :	Cast, Marking, Push, Press, forge, Packing In Boxes For Sale.
Mills And Origin :	USA, Japanese, Indian, Russian

Equivalent Material of A403 SS double wall stove pipe elbow

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	3304S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 304H	1.4301	S30409	–	–	–	–	–
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	–	X8CrNi25-21
SS 310H	–	S31009	–	–	–	–	–
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H	1.4401	S31609	–	–	–	–	–
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2
SS 317	1.4449	S31700	SUS 317	–	–	–	–
SS 317L	1.4438	S31703	SUS 317L	–	–	–	X2CrNiMo18-15-4
SS 321	1.4541	S32100	SUS 321	–	–	–	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	–	–	–	X12CrNiTi18-9
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10
SS 347H	1.4961	S34709	SUS 347H	–	–	–	X6CrNiNb18-12
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

We sale Below Products on regular basis in USA, Far East Asia

col_1	col_2
316 Stainless steel butt-weld BW LR long radius 90 degree sch10 Elbow	Philippines, Iran, Chile, Canada
Stainless Steel 180 Degree Butt Weld Elbow	Europe, Norway, United Arab Emirates (UAE), Romania
SS321 Stainless Steel Seamless / Welded Elbow	Sweden, Russia, Netherlands, Malaysia
stainless steel 90 degree elbow	Malaysia, Mexico, Egypt, Los Alamos -Mexico
304 stainless steel 90 degree mandrel elbow	Singapore, Malaysia, United Kingdom -UK, NY 12203 (USA)
90 degree sanitary stainless steel elbow	Dammam -KSA, Poland, UK, Philippines
316L sanitary welding elbow	Qatar, Malaysia, Singapore, Europe
stainless steel DN150 sch80 long radius Elbow	Czechia, Japan, Malaysia, Jakarta, Thailand
stainless steel pipe joint elbow	Malaysia, Colombia, China, Bangladesh
6 Inch stainless steel polished elbow	South Africa, Taiwan, Philippines, Kuwait
OD 38mm 1.5" Sanitary Weld Elbow	Bahrain, South Korea, Malaysia, Singapore
90 Degree Stainless Steel 304	Philippines, Indonesia, Belgium, UK
stainless steel 90 degree curved tube elbow	Oman, France, Thailand, Hong Kong
Stainless steel 1.5D Seamless elbow	Malaysia, Germany, Malaysia, Turkey
stainless steel 3 way elbow 90 Degree	Dubai, USA, Finland, Malaysia
SS304 Sanitary welded elbow bend(90 degree)	UK, Saudi Arabia (KSA), Brazil, Spain
Stainless Steel 316L 6inch 45degree Long radius elbow	UAE, South Africa, Singapore, Europe
SCH80 90 Degree Stainless steel Elbow	Ellington -United States, Australia, Nigeria, Canada
90 short radius ss304 Elbow	Singapore, Malaysia, UAE, Italy

›Material Properties

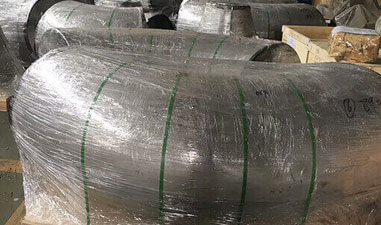

Chemical Equation of Stainless Steel Tubing Elbows

Scroll to see all columns →

Grade	Grade_2	C	Mn	Si	P	S	Cr	Mo	Ni	N	Ti	Fe
304	min.						18.0		8.0
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10
304L	min.						18.0		8.0
304L	max.	0.030	2.0	0.75	0.045	0.030	20.0		12.0	0.10
304H	min.	0.04					18.0		8.0
304H	max.	0.010	2.0	0.75	0.045	0.030	20.0		10.5
SS 310		0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 26.00	0.10 max	19.00 21.00	54.7 min
SS 310S		0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00	0.75 max	19.00 21.00	53.095 min
SS 310H		0.04 0.10	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00		19.00 21.00	53.885 min
316	min.						16.0	2.03.0	10.0
316	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316L	min.						16.0	2.03.0	10.0
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316TI		0.08 max	10.00 14.00	2.0 max	0.045 max	0.030 max	16.00 18.00	0.75 max	2.00 3.00
317		0.08 max	2 max	1 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00				57.845 min
SS 317L		0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00	11.00 15.00			57.89 min
SS 321		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	5(C+N) 0.70 max
SS 321H		0.04 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	4(C+N) 0.70 max
347/ 347H		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 20.00		9.0013.00
410	min.						11.5
410	max.	0.15	1.0	1.00	0.040	0.030	13.5		0.75
446	min.						23.0			0.10
446	max.	0.2	1.5	0.75	0.040	0.030	30.0		0.50	0.25
904L	min.						19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

Mechanical Characteristics of SS pipe elbow

col_1	col_2	col_3	col_4	col_5	col_6
Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
304H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	8.0 g/cm3	1399 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
317	7.9 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
321	8.0 g/cm3	1457 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	8.0 g/cm3	1454 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
904L	7.95 g/cm3	1350 °C (2460 °F)	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %

›Dimensions & Weight

Dimensions Table Of SS Long Radius Elbow

Scroll to see all columns →

Nominal / Pipe / Size	Outside / Diameter	Outside / Diameter_2	90° Elbows	90° Elbows_2	45° Elbows	45° Elbows_2	180° Returns	180° Returns_2
(inches)			Long Radius	Short Radius	Long Radius	Long Radius	Long Radius	Long Radius
	(mm)	(inches)	Center to Face / (inches)	Center to Face / (inches)	Center to Face / (inches)	Radius / (inches)	Center to Center / (inches)	Back to face / (inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8	–	7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Dimensional Tolerances Of Stainless Steel Sch 40 Elbow

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
For all fittings	For all fittings	For all fittings	For all fittings	Elbows 90/45 deg	180° Returns	180° Returns	180° Returns
Nominal Pipe Size (NPS)	Outside Ø / at Bevel	Inside Ø / at End	Wall Thickness / t / t1	Center to End Dim. A-B-C-M	Center to Center Dim. / O	Back to Face Dim. / K	Align- ment of Ends / U
1/2 a 2 1/2	1	0,8	Not	2	7	7	1
3 a 3 1/2	1	1,6	less	2	7	7	1
4	+2 -1	1,6	than	2	7	7	1
5 a 6	+3 -1	1,6	87,50%	2	7	7	1
8	2	1,6	of nominal	2	7	7	1
10	+4 -3	3,2	tickness	2	7	7	2
12 a 18	+4 -3	3,2		3	10	7	2
20 a 24	+6 -5	4,8		3	10	7	2
26 a 30	+7 -5	4,8		3	…..	…..	…..
32 a 48	+7 -5	4,8		5	…..	…..	…..

Weight Chart of Stainless Elbow Fittings

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7
Nom. / Pipe / Size	Pipe / Sched. / or No.	Center- / to-end / Dimen.	Outside / Dia.	Inside / Dia.	Wall / Thick.	Approx. / Weight / (lb.)
		F	OD	ID	T
STANDARD WEIGHT	STANDARD WEIGHT	STANDARD WEIGHT	STANDARD WEIGHT	STANDARD WEIGHT	STANDARD WEIGHT	STANDARD WEIGHT
1/2	40	5/8	0.840	0.622	0.109	0.1
3/4	40	7/16	1.050	0.824	0.113	0.1
1	40	7/8	1.315	1.049	0.133	0.2
1 1/4	40	1	1.660	1.380	0.140	0.4
1 1/2	40	1 1/8	1.900	1.610	0.145	0.5
2	40	1 3/8	2.375	2.067	0.154	0.9
2 1/2	40	1 3/4	2.875	2.469	0.203	1.5
3	40	2	3.500	3.068	0.216	2.5
3 1/2	40	2 1/4	4.000	3.548	0.226	3.5
4	40	2 1/2	4.500	4.026	0.237	4.8
5	40	3 1/8	5.563	5.047	0.258	7.8
6	40	3 3/4	6.625	6.065	0.280	12
8	40	5	8.625	7.981	0.322	23
10	40	6 1/4	10.750	10.020	0.365	42
12	–	7 1/2	12.750	12.000	0.375	61
14	30	8 3/4	14.000	13.250	0.375	79
16	30	10	16.000	15.250	0.375	103
18	–	11 1/4	18.000	17.250	0.375	132
20	20	12 1/2	20.000	19.250	0.375	160
22	20	13 1/2	22.000	21.250	0.375	195
24	20	15	24.000	23.250	0.375	238
EXTRA STRONG	EXTRA STRONG	EXTRA STRONG	EXTRA STRONG	EXTRA STRONG	EXTRA STRONG	EXTRA STRONG
Nom. / Pipe / Size	Pipe / Sched. / or No.	Center- / to-end / Dimen.	Outside / Dia.	Inside / Dia.	Wall / Thick.	Approx. / Weight / (lb.)
		F	OD	ID	T
1/2	80	5/8	0.840	0.546	0.147	0.2
3/4	80	7/16	1.050	0.742	0.154	0.3
1	80	7/8	1.315	0.957	0.179	0.4
1 1/4	80	1	1.660	1.278	0.191	0.5
1 1/2	80	1 1/8	1.900	1.500	0.200	0.6
2	80	1 3/8	2.375	1.939	0.218	1.1
2 1/2	80	1 3/4	2.875	2.323	0.276	2.1
3	80	2	3.500	2.900	0.300	3.5
3 1/2	80	2 1/4	4.000	3.364	0.318	4.8
4	80	2 1/2	4.500	3.826	0.337	6.5
5	80	3 1/8	5.563	4.813	0.375	11
6	80	3 3/4	6.625	5.761	0.432	18
8	80	5	8.625	7.625	0.500	35
10	60	6 1/4	10.750	9.750	0.500	56
12	–	7 1/2	12.750	11.750	0.500	80
14	–	8 3/4	14.000	13.000	0.500	100
16	40	10	16.000	15.000	0.500	131
18	–	11 1/4	18.000	17.000	0.500	172
20	30	12 1/2	20.000	19.000	0.500	210
22	30	13 1/2	22.000	21.000	0.500	259
24	–	15	24.000	23.000	0.500	302
