Stainless Steel Forged Fittings Manufacturer in India

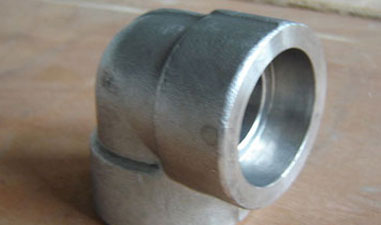

Manufacturer of Stainless Steel Forged Fittings in India, Check price list of SS BSP Elbow, Refer dimensions and weight chart of Stainless Steel Npt Fittings and 1 Inch Stainless Steel Coupling.

Stainless Steel

On This Page

Stainless Steel Forged Fittings Spec Chart Chemical Composition of ASTM A182 SS Union Mechanical Properties of SS Forged Fittings Equivalent Grade of Stainless Steel Coupling Wall Thickness of ASTM A182 Stainless Steel Forged Fittings Weight Chart of ASME B16.11 SS Socket weld Fittings Dimensions of SS Socket Weld 90 Degree Elbows

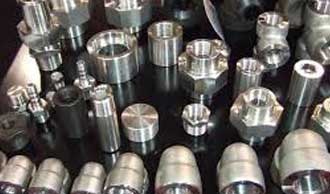

Gallery

Stainless Steel Forged Fittings Manufacturer in India in Detail

Technical Data

Full Specifications

›Technical Data

Stainless Steel Forged Fittings Spec Chart

col_1	col_2
Specification :	Stainless Steel Forged Fittings
Dimensions Class:	3000#, 6000#, 2000#, 9000#
Pressure:	Check Pressure Rating Of Socket, Threaded: 6000 LBS, 3000 LBS, 9000 LBS
Export to	Singapore, Indonesia, Dubai, Brazil, Ukraine, India, Thailand, Korea, Oman, Spain, Canada, USA, Ireland, Iran, Egypt, Saudi Arabia, Peru, etc
Size Chart Of:	1/8” NB to 4” NB (Screwed-Socket)
Forged Type :	BSPT, NPT (Threaded), BSPP.
Mills And Origin :	Russian, USA, Europe, India, Japanese
Connection Type :	Welding

Wall Thickness of ASTM A182 Stainless Steel Forged Fittings

Description	Stainless Steel Forged Fittings Class Designation	Stainless Steel Forged Fittings Class Designation_2	Stainless Steel Forged Fittings Class Designation_3
Description	Class 3000	Class 6000	Class 9000
SW Elbows 45 degrees and NPT 90 Elbows degrees, / SW Tees, NPT Crosses, SW Couplings, / NPT Half-Couplings, / Socket End or Pipe Caps	1/2 – 4	1/2 – 2	1/2 – 2
SW Elbows 45 degrees and NPT 90 Elbows degrees, / SW Tees, NPT Crosses, SW Couplings, / NPT Half-Couplings, / Socket End or Pipe Caps	1/2 – 4	1/2 – 2	1/2 – 2
SW Elbows 45 degrees and NPT 90 Elbows degrees, / SW Tees, NPT Crosses, SW Couplings, / NPT Half-Couplings, / Socket End or Pipe Caps	1/2 – 4	1/2 – 2	1/2 – 2
NPS / by Wall Thick.	SCH80	SCH160	XXS

Know more about our clients worldwide

col_1	col_2
201 malleable iron stainless steel NPT threaded pipe fittings	Belgium, Philippines, Indonesia, Dammam -KSA
stainless steel union male	Thailand, Europe, France, Qatar
Stainless Steel Male Equal Round Casting Silver Union 1"	Malaysia, Thailand, Germany, Czechia
SW Pipe fittings ASME B16.11 Stainless Steel 316	Finland, Bangladesh, USA, Malaysia
316L D25 3000LB Union	Brazil, Kuwait, Saudi Arabia (KSA), South Africa
1/4" x 1/4" 6000psi 316 Stainless Steel Straight Union Connector	Singapore, Singapore, South Africa, Bahrain
stainless steel threaded pipe fittings Hex nipple 304	Nigeria, UK, Australia, Philippines
STAINLESS STEEL-SS316 UNION ELBOW	UAE, Hong Kong, Malaysia, Oman
316 stainless steel tee Male BSP NPT	Singapore, Iran, Italy, Chile
150# Stainless Steel Forged Fitting Equal Tee	Malaysia, Norway, Turkey, United Arab Emirates (UAE)
Stainless Steel Union Male Run Tee Saline Water	Dubai, Russia, Malaysia, Netherlands
stainless steel bearing bushing	UK, Mexico, Spain, Egypt
316L Stainless Steel Composite Bushing	UAE, Malaysia, Europe, United Kingdom -UK
forging stainless steel bushing with female thread	Ellington -United States, Poland, Canada, UK
Stainless Steel Hose Nipple Female	Singapore, Canada, Malaysia, Philippines
stainless steel 304/316 hex nipple	Malaysia, Romania, Japan, Europe
SS304 Nipple NPT Thread 3/8" x 1-1/2"	China, Malaysia, Colombia, Sweden
Stainless Steel High Pressure Forged BSPT Male Thread Connectors	Philippines, Los Alamos -Mexico, Taiwan, Malaysia
forged stainless steel 1/2" NPT male threaded nipple	Malaysia, NY 12203 (USA), South Korea, Singapore

›Material Properties

Chemical Composition of ASTM A182 SS Union

Scroll to see all columns →

Grade	Grade_2	C	Mn	Si	P	S	Cr	Mo	Ni	N	Ti	Fe
304	min.						18.0		8.0
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10
304L	min.						18.0		8.0
304L	max.	0.030	2.0	0.75	0.045	0.030	20.0		12.0	0.10
304H	min.	0.04					18.0		8.0
304H	max.	0.010	2.0	0.75	0.045	0.030	20.0		10.5
SS 310		0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 26.00	0.10 max	19.00 21.00	54.7 min
SS 310S		0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00	0.75 max	19.00 21.00	53.095 min
SS 310H		0.04 0.10	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00		19.00 21.00	53.885 min
316	min.						16.0	2.03.0	10.0
316	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316L	min.						16.0	2.03.0	10.0
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316TI		0.08 max	10.00 14.00	2.0 max	0.045 max	0.030 max	16.00 18.00	0.75 max	2.00 3.00
317		0.08 max	2 max	1 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00				57.845 min
SS 317L		0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00	11.00 15.00			57.89 min
SS 321		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	5(C+N) 0.70 max
SS 321H		0.04 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	4(C+N) 0.70 max
347/ 347H		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 20.00		9.0013.00
410	min.						11.5
410	max.	0.15	1.0	1.00	0.040	0.030	13.5		0.75
446	min.						23.0			0.10
446	max.	0.2	1.5	0.75	0.040	0.030	30.0		0.50	0.25
904L	min.						19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

Mechanical Properties of SS Forged Fittings

col_1	col_2	col_3	col_4	col_5	col_6
Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
304H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	8.0 g/cm3	1399 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
317	7.9 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
321	8.0 g/cm3	1457 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	8.0 g/cm3	1454 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
904L	7.95 g/cm3	1350 °C (2460 °F)	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %

Equivalent Grade of Stainless Steel Coupling

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	3304S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 304H	1.4301	S30409	–	–	–	–	–
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	–	X8CrNi25-21
SS 310H	–	S31009	–	–	–	–	–
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H	1.4401	S31609	–	–	–	–	–
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2
SS 317	1.4449	S31700	SUS 317	–	–	–	–
SS 317L	1.4438	S31703	SUS 317L	–	–	–	X2CrNiMo18-15-4
SS 321	1.4541	S32100	SUS 321	–	–	–	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	–	–	–	X12CrNiTi18-9
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10
SS 347H	1.4961	S34709	SUS 347H	–	–	–	X6CrNiNb18-12
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

›Dimensions & Weight

Weight Chart of ASME B16.11 SS Socket weld Fittings

col_1	col_2	col_3	col_4	col_5
Nominal Size	Nominal Size	Approximate Weight/kg	Approximate Weight/kg	Approximate Weight/kg
DN	NPS	3000 LB	6000 LB	9000 LB
6	1/8	0.13	0.22
8	1/4	0.13	0.22
10	3/8	0.16	0.45
15	1/2	0.35	0.55	1.15
20	3/4	0.4	0.9	1.8
25	1	0.66	1.46	2.25
32	1 1/4	1	1.9	3.95
40	1 1/2	1.4	3.4	4.87
50	2	2.2	3.7	8.89
65	2 1/2	4	7.2
80	3	6.15	10.7
100	4	14.3

Dimensions of SS Socket Weld 90 Degree Elbows

NPS	A	B Max	B Min	C Avg	C Min
1/8	11	11.2	10.8	3.18	3.18
1/4	11	14.6	14.2	3.78	3.3
3/8	13.5	18	17.6	4.01	3.5
1/2	15.5	22.2	21.8	4.67	4.09
3/4	19	27.6	27.2	4.9	4.27
1	22.5	34.3	33.9	5.69	4.98
1-1/4	27	43.1	42.7	6.07	5.28
1-1/2	32	49.2	48.8	6.35	5.54
2	38	61.7	61.2	6.93	6.04
2-1/2	41	74.4	73.9	8.76	7.67
3	57	90.3	89.8	9.52	8.3
4	66.5	115.7	115.2	10.69	9.35
NPS	A	B Max	B Min	C Avg	C Min
