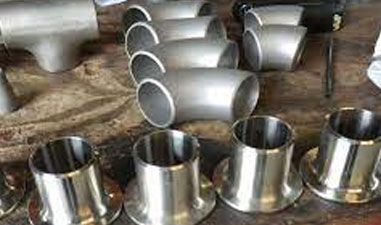

Monel 400 Pipe Fittings

Monel 400 Pipe Fittings

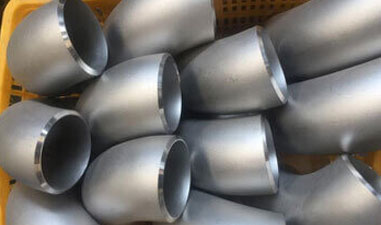

Call Now for ASTM B366 UNS N04400 Buttweld Elbow at Factory Price, Manufacturer of Monel 400 Fittings in India. View Accurate Sizes of Alloy 400 Reducer as Per ASME B16.11 Standards.

Nickel Alloys

On This Page

Gallery

Monel 400 Pipe Fittings in Detail

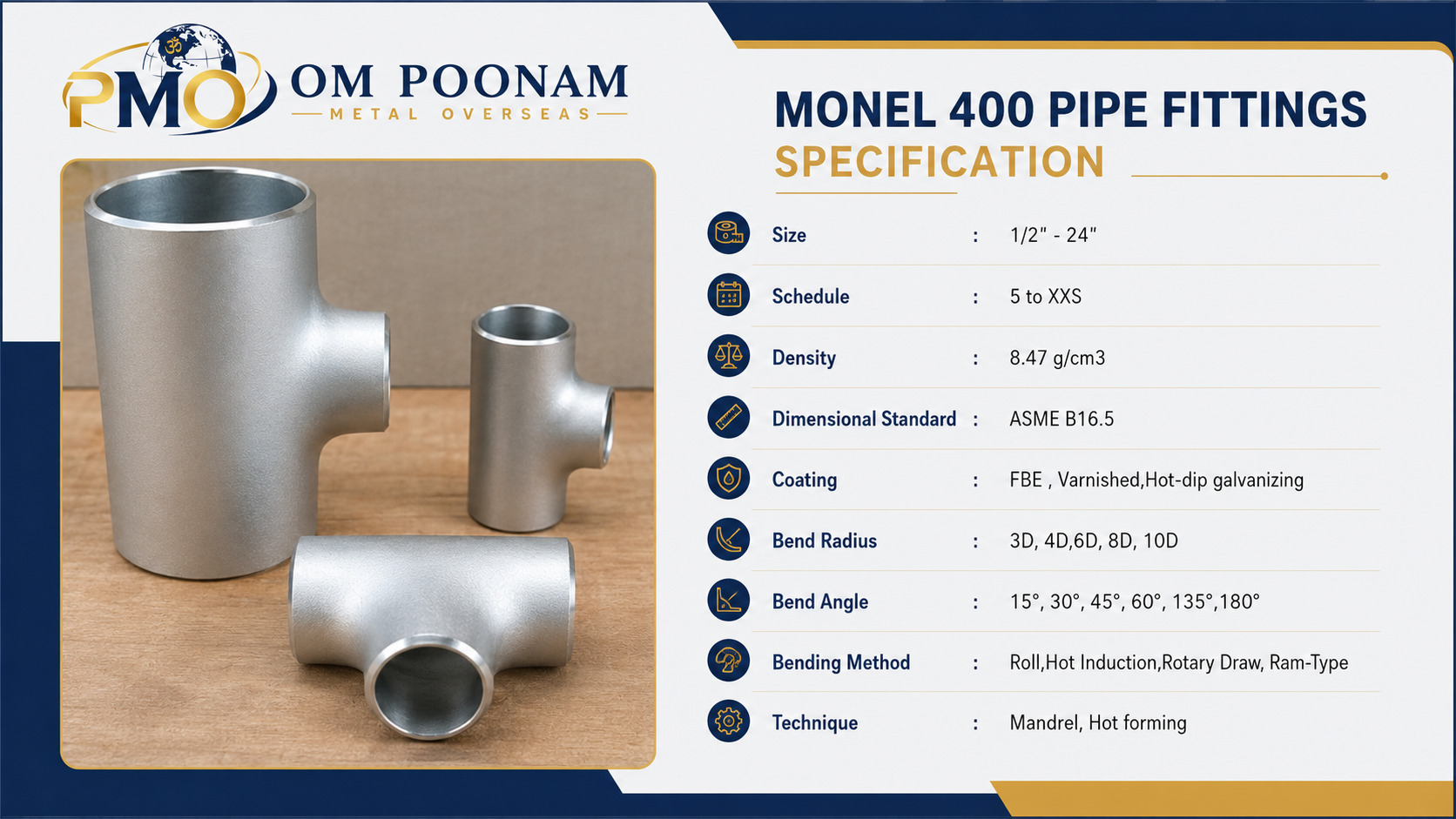

Specification

Features & Applications

UNS N04400 Buttweld Fittings Tensile Strength

  • 80000 psi
  • 550 Mpa

Alloy 400 BW Fittings Yield Strength

  • 35000 psi
  • 240 Mpa

Monel 400 Pipe Fittings Sizes

  • Seamless : 1/2" - 24"
  • Welded : 24 - 96"

Monel Alloy 400 Elbow Size

  • 1/2 to 48

Werkstoff NR. 2.4360 Seamless Pipe Fittings Schedule

  • 5 to XXS

Nickel Alloy 400 Welded Pipe Fittings Dimensional Standard

  • ASME B16.9

Nickelvac® 400 Reducer Manufacturing Technique

  • Mandrel
  • Hot forming

Nicorros® 400 Pipe Bend JIS standard

  • JIS B2313
  • JIS B2312

AMS 4574 Stub End Coating

  • FBE coated
  • Varnished
  • Anti rust light oiling
  • PE coating
  • Hot-dip galvanizing
  • Back painting

Monel 400 Welded Fittings American Standard

  • MSS-SP-43
  • ANSI / ASME B16.9
  • MSS-SP-83
  • ANSI/ ASME B16.25
  • ANSI/ ASME B16.28
  • MSS-SP-95

DIN 2.4360 Cross Testing Methods

  • Magnetic Particle Examination
  • Hyrdrostatic test
  • Positive Material Identification
  • HIC tested
  • Ultrasonic test

WNR 2.4360 Pipe Bend Radius

  • 3D
  • 4D
  • 5D
  • 6D
  • 8D
  • 10D

Requirements Meet for Monel 400 Cap

  • NACE MR0103
  • HIC tested
  • NACE TM-0284
  • Sour service
  • IBR
  • MTC EN 10204 3.1/ 3.2 certificate
  • ISO 15156
  • NORSOK
  • NACE MR0175

UNS N04400 Pipe Bending Method

  • Roll Bending
  • Hot Induction Bending
  • Mandrel Bending
  • Rotary Draw Bending
  • Ram-Type Bending

Alloy 400 Elbow Working Temperatures Ranging

  • 1000°F
  • 538°C

Co-Efficient of Expansion of Nickelvac® 400 Seamless Fittings

  • 13.9µm/m.°C
  • 7.7 x 10-6 in/in.°F

Marking for Nickel Alloy 400 Butt Weld Fittings

  • Dimensional standard
  • Manufacturers name
  • Grade
  • Size
  • Heat number

Nickelvac® 400 Fittings Packaging

  • Carton Box
  • Wooden Pallet
  • Custom
  • Wooden Cases

Nickelvac® 400 Pipe Bend Angle

  • 15°
  • 22.5
  • 30°
  • 45°
  • 60°
  • 90°
  • 135°
  • 180°

Monel 400 Fittings Types

  • Monel 400 Pipe Bend
  • UNS N04400 Stub End
  • Alloy 400 Reducer
  • Werkstoff NR. 2.4360 Cross
  • Nickel Alloy 400 Elbow
  • Nickelvac® 400 Tee
  • Monel Alloy 400 Cap

ASTM B366 UNS N04400 Reducers suitable fluids

  • Air
  • Gas
  • Water
  • Oil
  • Steam

Alloy 400 Cap and Stub End

  • AMS 4574 Short Stub End
  • Monel 400 Lap Joint Stub End
  • DIN 2.4360 Collar
  • WNR 2.4360 Butt Welded Hemi-head Pipe Cap
  • ASTM B366 UNS N04400 Long Stub End

End types of ASME B 16.11 Alloy 400 Tee

  • Beveled Both Ends
  • Treaded Both Ends
  • Plain large end
  • Treaded large end
  • Beveled small end
  • Plain small end
  • Treaded small end
  • Plain Both Ends
  • Beveled large end

Alloy 400 Long Radius Bend Equivalent Standard

  • UNS : N04400
  • EN : NiCu30Fe
  • WERKSTOFF NR. : 2.4360
  • GOST : МНЖМц 28-2,5-1,5
  • AFNOR : NU-30M
  • BS : NA 13
  • JIS : NW 4400

ASME SB 366 Monel 400 Elbows Density

  • 8.80 g/cm3
  • 0.318 lb/in.3

UNS N04400 Monel 400 Pipe Fittings Melting Range

  • 2370 °F - 2460 °F
  • 1300 °C - 1350 °C

Monel 400 Pipe Fittings Specific Heat

  • 0.102 Btu/lb•°F

Monel UNS N04400 Equal Tees Thermal Conductivity

  • 427 W/m•°C

ASTM B366 UNS N04400 Elbow Heat Treatment

  • 1000° to 1050°F

Common Trade Names of B366 UNS N04400 Monel 400 Fitting

  • Monel 400®
  • Nicorros® 400
  • Nickelvac® 400

Monel 400 90° Elbows Value Added Services

  • Forging
  • Rolling
  • Pickling
  • Cladding
  • Bending
  • Heat Treatment
  • Polish
  • Cutting

Monel 45° Elbows Properties

  • Good mechanical properties
  • easily welded
  • High resistance to acid salts
  • Good resistance to corrosion cracking
  • Strong resistance to hydrofluoric acids

Available As

Nicorros® 400 5d Pipe BendAMS 4574 L BendMonel 400 Welded Pipe BendDIN 2.4360 J BendWNR 2.4360 Short Radius BendASTM B366 UNS N04400 Hot Induction BendASME SB366 N04400 Seamless Pipe BendASTM B366 N04400 Piggable BendASME SB366 UNS N04400 2.5d Pipe BendMonel 400 Mitered Pipe BendUNS N04400 Return BendAlloy 400 22d Pipe BendWerkstoff NR. 2.4360 10d Pipe BendNickel Alloy 400 Long Radius BendNickelvac® 400 3d Pipe BendMonel Alloy 400 8d ElbowNicorros® 400 Seamless ElbowAMS 4574 Welded ElbowMonel 400 Reducing Elbow180° Short Radius DIN 2.4360 Elbow45° Short Radius WNR 2.4360 ElbowASTM B366 UNS N04400 Long Radius Elbow60° ASME SB366 N04400 Elbow180° ASTM B366 N04400 Elbow180° Long Radius ASME SB366 UNS N04400 Elbow90° Monel 400 Elbow45° UNS N04400 Elbow45° Long Radius Alloy 400 ElbowWerkstoff NR. 2.4360 5d ElbowNickel Alloy 400 1d Elbow120° Nickelvac® 400 Elbow90° Short Radius Monel Alloy 400 Elbow30° Nicorros® 400 Elbow22.5 Degree AMS 4574 ElbowMonel 400 Short Radius ElbowDIN 2.4360 1.5d ElbowWNR 2.4360 3d ElbowASTM B366 UNS N04400 2d Elbow90° Long Radius ASME SB366 N04400 ElbowASTM B366 N04400 Buttweld TeeASME SB366 UNS N04400 Lateral TeeMonel 400 Barred TeeUNS N04400 Equal TeeAlloy 400 Straight TeesWerkstoff NR. 2.4360 Y TeeNickel Alloy 400 Reducing TeeNickelvac® 400 Saddle TeeMonel Alloy 400 Reducing Outlet TeesNicorros® 400 Swept TeeASME SB366 N04400 Straight CrossesASTM B366 N04400 Reducing Outlet CrossesASME SB366 UNS N04400 Unequal CrossMonel 400 Equal CrossUNS N04400 Eccentric Swage NippleAlloy 400 Concentric Swage NippleWerkstoff NR. 2.4360 Eccentric ReducerNickel Alloy 400 Concentric Reducer

Technical Data

Full Specifications

›Material Properties

Mechanical Characteristics of Alloy 400 Reducer

ElementMelting Pointcol_3Tensile StrengthElongation
Element2460 °F / 1350 °C–80000 Psi / 550 MPaElongation
Monel 400DensityYield Strength40 %
Monel 4008.8 g/cm335000 Psi / 240 MPa40 %
›Technical Data

Material Equivalent of Nickel 400 End cap

Scroll to see all columns →

STANDARDEuropeNorth AmericaWERKSTOFF NR.RussiaJapanBritish StandardFrance
Monel 400NiCu30FeN044002.4360МНЖМц 28-2,5-1,5NW 4400NA 13NU-30M
›Dimensions & Weight

Dimension of DIN 2.4360 Buttweld Fitting

Scroll to see all columns →

NPSSize(inches)Size(inches)_21/211 1/22 1/23 1/25812
OD(inches)(inches)0.841.3151.92.87545.5638.62512.75
OD(mm)(mm)21.333.448.373101.6141.3219.1323.9
90° ElbowsShort RadiusCenter to Face in inches–11 1/22 1/23 1/25812
90° ElbowsLong RadiusCenter to Face in inches1 1/21 1/22 1/43 3/45 1/47 1/21218
45° ElbowsLong RadiusRadius in inches357101218
45° ElbowsLong RadiusCenter to Face in inches5/87/81 1/81 3/42 1/43 1/857 1/2
180° ReturnsLong RadiusBack to face in inches1 7/82 3/163 1/45 3/167 1/410 5/1616 5/1624 3/8
180° ReturnsLong RadiusCenter to Center n inches234 1/27 1/210 1/2152436

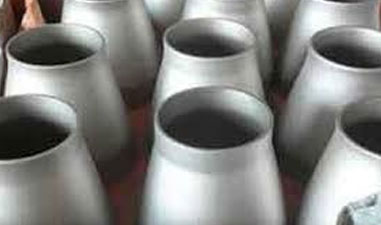

Dimension Table of Alloy 400 Pipe Reducer

NPSODOD_2ReducersReducers_2
Reduced from (inches)(inches)(mm)Eccentric and Concentric Length (inches)Reduced to (inches)
1/20.8421.31 1/23/8
1/20.8421.31 1/21/4
3/41.0526.721/2
3/41.0526.723/8
11.31533.421/2
11.31533.423/8
11.31533.423/4
1 1/41.6642.223/4
1 1/41.6642.221/2
1 1/41.6642.221
1 1/21.948.32 1/23/4
1 1/21.948.32 1/21/2
1 1/21.948.32 1/21 1/4
22.37560.331
22.37560.333/4
22.37560.331 1/2
22.37560.331 1/4
2 1/22.875733 1/21 1/4
2 1/22.875733 1/21
2 1/22.875733 1/22
2 1/22.875733 1/21 1/2
33.588.93 1/21 1/2
33.588.93 1/21
33.588.93 1/22 1/2
33.588.93 1/22
3 1/24101.641 1/2
3 1/24101.641 1/4
3 1/24101.642 1/2
3 1/24101.642
3 1/24101.643
55.563141.352 1/2
55.563141.352
55.563141.353 1/2
55.563141.353
55.563141.354
66.625168.35 1/23
66.625168.35 1/22 1/2
66.625168.35 1/24
66.625168.35 1/23 1/2
66.625168.35 1/25
88.625219.163 1/2
88.625219.163
88.625219.165
88.625219.164
88.625219.166
1010.75273.176
1010.75273.175
1010.75273.174
1010.75273.178
1212.75323.986
1212.75323.985
1212.75323.9810
1212.75323.988

Nickel 400 Tee, Cap, Stub End Dimensions

Scroll to see all columns →

NPS Size(inches)(inches)_21/23/411 1/41 1/222 1/233 1/245
OD(inches)(inches)0.841.051.3151.661.92.3752.8753.544.55.563
OD(mm)(mm)21.326.733.442.248.360.37388.9101.6114.3141.3
CapsLength(inches)111 1/21 1/21 1/21 1/21 1/222 1/22 1/23
Straight CrossesCenter to End(inches)––1 1/21 7/82 1/42 1/233 3/83 3/44 1/84 7/8
Straight TeesCenter to End(inches)11 1/81 1/21 7/82 1/42 1/233 3/83 3/44 1/84 7/8
Stub EndsLong Length(inches)33444666668
Stub EndsLap Diameter(inches)1 3/81 11/1622 1/22 7/83 5/84 1/855 1/26 3/167 5/16
Stub EndsShort Length(inches)222222 1/22 1/22 1/2333

Weight Chart of ASTM B366 UNS N04400 pipe fittings

Scroll to see all columns →

DNDN_281525406580100200300
Schedule 10S450 Elbow.01.03.08.17.48.631.085.3313.62
Schedule 10S900 Elbow.02.06.14.3.851.252.11 .225.8
Schedule 10SEqual tee.03.09.28.681.411.773.4615.6539.46
Schedule 40S450 Elbow.02.04.11.23.771.082.091 .7729.71
Schedule 40S900 Elbow.03.08.15.41.42.24.4721.5459.42
Schedule 40SEqual tee.06.1.29.862.193.315.272 .9162.14
Schedule 80S450 Elbow.03.05.14.29.991.52.8116.5639.69
Schedule 80S900 Elbow.04.1.22.511.812.976.1833.1179.38
Schedule 80SEqual tee.07.14.381.023.134.457.7128.1283.91
