Inconel 825 Fittings
Read More About Incoloy 800 Elbow / Tee Dimension. Manufacturer of Inconel 825 Fittings in India as Per ASTM B366 Standard, Check Price List and Specification With MTC.
Nickel Alloys
On This Page
Incoloy 800 Buttweld Fittings Equivalent MaterialNickel Alloy 800H Tee Chemical CompositionWerkstoff NR. 2.4858 Reducer Mechanical PropertyAlloy 825 Fittings Pressure ratingIncoloy Alloy 800 Elbow DimensionDimensional Tolerances of Alloy Incoloy 825 ElbowAlloy Incoloy 800H Tee Dimension ChartASME SB366 UNS N08800 Reducer Dimension
Gallery
Inconel 825 Fittings in Detail

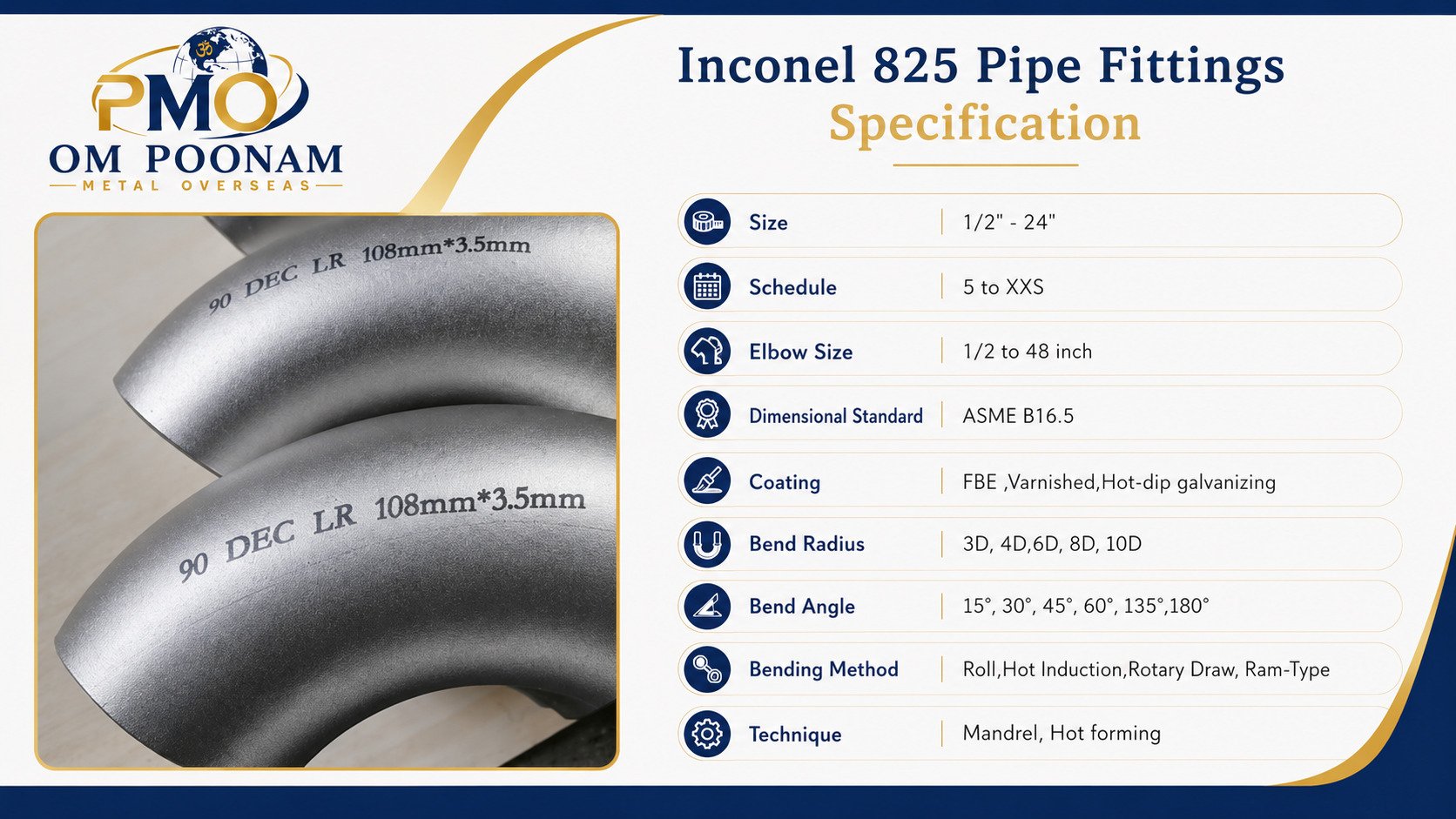

Specification
Features & Applications
Incoloy 825 Buttweld Fittings Sizes
- Seamless : 1/2" - 24"
- Welded : 24 - 96"
Alloy 825 Elbow Size
- 1/2 to 48
Incoloy 800 Reducer Service Temperatures
- Upto 1500°F
- Upto 816°C
Inconel 800 Seamless Pipe Fittings Hot Forming Temperature Range
- 870 to 1200°C
- 1600 to 2200°F
Inconel 800 Fittings Schedule
- 5 to XXS
Inconel 800H Fittings UNS Number
- UNS N08810
Nickel Alloy 800 Cap Manufacturing Technique
- Mandrel
- Hot forming
Alloy Incoloy 800H Cross JIS Standard
- JIS B2313
- JIS B2312
Inconel Alloy 800 Welded Pipe Fittings Coating
- Back painting
- FBE coated
- Hot-dip galvanizing
- Anti rust light oiling
- Varnished
- PE coating
ASTM B366 UNS N08825 Buttweld Pipe Fittings American Standard
- ASME B16.25
- ASME B16.9
- MSS-SP-43
- ASME B16.28
- MSS SP-25
Werkstoff NR. 2.4858 SR Elbow ASTM Standard
- ASTM B366
- ASME SB366
Incoloy 800H Tee Dimensional Standard
- ASTM, SAE, ASME, DIN, ISO, BS, AMS and EN
Nickel Alloy 825 Butt Welded Fittings Testing Methods
- Hyrdrostatic test
- Positive Material Identification
- Ultrasonic test
- HIC tested
- Magnetic Particle Examination
Nicrofer 4241 Pipe Bend Radius
- 3D
- 4D
- 5D
- 6D
- 8D
- 10D
Incoloy Alloy 800 Fittings Operating Temperature
- <600 °C
Alloy 800H Stub End Operating Temperature
- 600 to 50 °C
Requirements Meet for Inconel Alloy 800H BW Fittings
- ISO 15156
- NORSOK
- NACE TM-0284
- IBR
- Sour service
- NACE MR0103
- HIC tested
- NACE MR0175
- MTC EN 10204 3.1/ 3.2 certificate
Nickel 800 Pipe Bending Method
- Ram-Type Bending
- Mandrel Bending
- Hot Induction Bending
- Roll Bending
- Rotary Draw Bending
Heat treatment for Alloy Incoloy 800 LR Elbow
- Soft annealed : 920-980°C
Heat treatment Inconel 800H Fittings
- Solution annealed : 1150°C
Marking for Inconel Alloy 825 45 Degree Elbow
- Dimensional standard
- Grade
- Heat number
- Size
- Manufacturers name
Alloy Incoloy 825 Pipe Fittings Packaging
- Wooden Pallet
- Carton Box
- Custom
- Wooden Cases
DIN 1.4958 Concentric Reducer Characteristics
- Good creep resistance
- Metallurgical stability
- Good resistance to oxidizing
Inco 800 Alloy Schedule 40 fittings Melting Point
- 1385 °C
- 2525 °F
Incoloy 800 / 800H Pipe Bend Angle
- 15°
- 22.5
- 30°
- 45°
- 60°
- 90°
- 135°
- 180°
Alloy 825 Fittings Types
- Nickel 800 Elbow
- NCF 800H Reducer
- ASTM B366 Incoloy 800 Pipe Bend
- UNS N08810 Tee
- Inconel 825 Stub End
- ASTM B366 Incoloy 800H Cap
- Nickel Alloy 800 Cross
Alloy 800 BW Pipe Fittings Equivalent Grades
- UNS : N08800
- JIS : NCF 800
- WERKSTOFF NR. : 1.4876
- GOST : ЭИ670
- OR : XH32T
- BS : NA 15
- EN : X10NiCrAlTi32-20
End types of Incoloy 800 Fittings
- Beveled Both Ends
- Treaded Both Ends
- Plain large end
- Treaded large end
- Beveled small end
- Plain small end
- Treaded small end
- Plain Both Ends
- Beveled large end
Incoloy Alloy 800H Eccentric Reducers Equivalent Standard
- WERKSTOFF NR. : 1.4958 / 1.4876
- UNS : N08810
- AFNOR : Z8NC33-21
- JIS : NCF 800H
- EN : X5NiCrAlTi31-20
UNS N08825 90 Degree Elbow Equivalent Material Standard
- UNS : N08825
- WERKSTOFF NR. : 2.4858
- GOST : ЭП703
- BS : NA 16
- JIS : NCF 825
- OR : XH38BT
- EN : NiCr21Mo
Nickelvac 825 Tee International Specifications
- BS 3072-3076
- DIN 17742
- DIN 17754
- DIN 17750
Value Added Services
- Forging
- Rolling
- Pickling
- Cladding
- Bending
- Heat Treatment
- Polish
- Cutting
UNS N08800 Equal Tee Application
- Petrochemical Industries
- Gas Processing Industries
- Food Processing Industries
- Fertilizers Industries
- Oil & Gas Industries
- Chemical Industries
- Sugar Industries
Inconel 2.4858 Pipe Fittings Temperature Range
- 650 °C to 760 °C
Dimension Tolerance
- ±12.5%
Available As
45° WNR 2.4858 Elbow180° Long Radius Nickelvac 825 Elbow60° EN 1.4876 Elbow45° Short Radius Nickel Alloy 800H Elbow30° UNS 8800 ElbowUNS N08800 Long Radius ElbowDIN 2.4858 1d Elbow120° Alloy 825 Elbow22.5 Degree UNS 8811 Elbow800 Inconel Short Radius Elbow90° Alloy Incoloy 800 Elbow90° Long Radius ASTM B366 UNS N08811 Elbow45° Long Radius WNR 1.4876 ElbowASTM B366 Incoloy 825 3d Elbow180° Incoloy 825 ElbowIncoloy Alloy 825 Reducing ElbowAlloy 825 5d Elbow180° Short Radius UNS N08825 Elbow825 Inconel Welded ElbowEN 1.4958 1.5d ElbowWerkstoff NR. 1.4876 Seamless ElbowASTM B366 UNS N08810 2d Elbow800 Inconel 8d Elbow90° Short Radius ASTM B366 UNS N08825 Elbow800H Inconel Straight TeesASTM B366 Inconel 800 Lateral TeeNicrofer 4241 Buttweld TeeInconel Alloy 800H Barred TeeInconel 1.4876 Reducing Outlet Tees825 Inconel Saddle TeeWNR 1.4958 Y TeeWerkstoff NR. 2.4858 Swept TeeNCF 825 Reducing TeeASME SB 366 UNS N08810 Equal TeeNickel 825 Seamless Pipe BendWerkstoff NR. 1.4958 Short Radius BendNickel 825 5d Pipe BendInconel 1.4876 10d Pipe BendAlloy 800H Piggable BendIncoloy 800 J BendASME SB 366 UNS N08811 22d Pipe BendInconel Alloy 825 Mitered Pipe BendASTM B366 Inconel 825 Return BendAlloy Incoloy 825 3d Pipe BendInconel Alloy 800 Long Radius BendUNS 8810 2.5d Pipe BendASME SB 366 UNS N08825 L BendIncoloy Alloy 800H Hot Induction BendEN 1.4958 Welded Pipe BendAlloy 800 Butt Welded Hemi-head Pipe CapInconel 800 CollarNickel 800H Long Stub EndInconel 1.4958 Lap Joint Stub EndNickel Alloy 825 Short Stub EndIncoloy Alloy 800 Straight CrossesAlloy Incoloy 800H Reducing Outlet CrossesIncoloy 800H Equal CrossASTM B366 Inconel 800H Unequal CrossEN 2.4858 Eccentric Swage NippleDIN 1.4876 Concentric Swage NippleInconel 800H Eccentric ReducerWNR 2.4858 Concentric Reducer
Technical Data
Full Specifications
›Technical Data
Incoloy 800 Buttweld Fittings Equivalent Material
| Standard | Incoloy 800HT | Incoloy 800 | Incoloy 825 | Incoloy 800H |
|---|---|---|---|---|
| Germany - WERKSTOFF NR. | 1.4859 / 1.4876 | 1.4876 | 2.4858 | 1.4958 / 1.4876 |
| North America - UNS | N08811 | N08800 | N08825 | N08810 |
| Russia - GOST | ЭИ670 | ЭИ670 | ЭП703 | ЭИ670 |
| Europe - EN | X8NiCrAlTi32-21 | X10NiCrAlTi32-20 | NiCr21Mo | X5NiCrAlTi31-20 |
| France - AFNOR | - | Z8NC32-21 | NFE30C20DUM | Z8NC33-21 |
| Japan - JIS | NCF 800HT | NCF 800 | NCF 825 | NCF 800H |
| OR | XH32T | XH32T | XH38BT | XH32T |
| British Standard - BS | NA 15(HT) | NA 15 | NA 16 | NA 15(H) |
›Material Properties
Nickel Alloy 800H Tee Chemical Composition
| Incoloy | 800H | 800 | 825 | 800HT |
|---|---|---|---|---|
| Fe | 39.5 min | 39.5 min | 22.0 min | 39.5 min |
| Ti | 0.15-0.60 | 0.15-0.60 | 0.6 - 1.2 | 0.25-0.60 |
| Ni | 30-35 | 30-35 | 38.0 – 46.0 | 30-35 |
| Al | 0.15-0.60 | 0.15-0.60 | 0.2 max | 0.85-1.20 |
| Cu | 0.75 max | 0.75 max | 1.5 - 3.0 | 0.75 max |
| Mn | 1.5 max | 1.5 max | 1.0 max | 1.5 max |
| Cr | 19-23 | 19-23 | 19.5 - 23.5 | 19-23 |
| S | 0.015 max | 0.015 max | 0.015 max | 0.015 max |
| C | 0.05-0.1 | 0.1 max | 0.05 max | 0.06-0.1 |
| Si | 1.0 max | 1.0 max | 0.5 max | 1.0 max |
Werkstoff NR. 2.4858 Reducer Mechanical Property
| Grade | Density | Tensile Strength | Melting Point | Elongation | Yield Strength (0.2%Offset) |
|---|---|---|---|---|---|
| 800/800H/800HT | 7.94 g/cm3 | 520 MPa 75000 Psi | 2525 °F 1385 °C | 30 % | 205 MPa 30000 Psi |
| 825 | 8.14 g/cm3 | 550 MPa 80000 Psi | 2550 °F 1400 °C | 30 % | 220 MPa 32000 Psi |
›Pressure Ratings
Alloy 825 Fittings Pressure rating
| °C | °F | 150 |
|---|---|---|
| 29 to 66 | 20 to 150 | 300 |
| 93 | 200 | 265 |
| 121 | 250 | 225 |
| 149 | 300 | 185 |
| 177 | 350 | 150 |
| 204 | 400 | |
| 232 | 450 | |
| 260 | 500 | |
| 288 | 550 |
›Dimensions & Weight

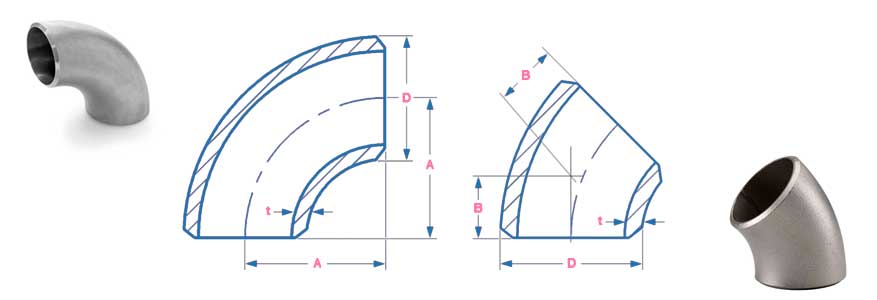

Incoloy Alloy 800 Elbow Dimension
| NPS | O.D. | 45° 3D | 90° 3D | 45° LR | 90° LR |
|---|---|---|---|---|---|
| NPS | D | B | A | B | A |
| 1/2 | 21.3 | 16 | 38 | ||
| 1 | 33.4 | 31 | 76 | 22 | 38 |
| 1.1/2 | 48.3 | 47 | 114 | 29 | 57 |
| 2 | 60.3 | 63 | 152 | 35 | 76 |
| 3 | 88.9 | 95 | 229 | 51 | 114 |
| 4 | 114.3 | 127 | 305 | 64 | 152 |
| 6 | 168.3 | 189 | 457 | 95 | 229 |
| 10 | 273 | 316 | 762 | 159 | 381 |
| 14 | 355.6 | 441 | 1067 | 222 | 533 |
| 18 | 457 | 568 | 1372 | 286 | 686 |
| 22 | 559 | 694 | 1676 | 343 | 838 |
| 26 | 660 | 821 | 1981 | 406 | 991 |
| 30 | 762 | 946 | 2286 | 470 | 1143 |
| 34 | 864 | 1073 | 2591 | 533 | 1295 |
| 36 | 914 | 1135 | 2743 | 565 | 1372 |
| 38 | 965 | 1200 | 2896 | 600 | 1448 |
| 40 | 1016 | 1264 | 3048 | 632 | 1524 |
| 42 | 1067 | 1326 | 3200 | 660 | 1600 |
| 44 | 1118 | 1389 | 3353 | 695 | 1676 |
| 46 | 1168 | 1453 | 3505 | 727 | 1753 |
| 48 | 1219 | 1516 | 3658 | 759 | 1829 |
Dimensional Tolerances of Alloy Incoloy 825 Elbow
| Nominal Pipe Size | ID at End | OD at Bevel (D) | Center to End 3D (A/B) | Center to End LR (A/B) |
|---|---|---|---|---|
| 1/2 to 2.1/2 | 0.8 | 1.6 -0.8 | 3 | 2 |
| 3 to 3.1/2 | 1.6 | 1.6 | 3 | 2 |
| 4 | 1.6 | 1.6 | 3 | 2 |
| 5 to 8 | 1.6 | 2.4 -1.6 | 3 | 2 |
| 10 to 18 | 3.2 | 4 -3.2 | 3 | 2 |
| 20 to 24 | 4.8 | 6.4 -4.8 | 3 | 2 |
| 26 to 30 | 6.4 -4.8 | 6.4 -4.8 | 6 | 3 |
| 32 to 48 | 6.4 -4.8 | 6.4 -4.8 | 6 | 5 |

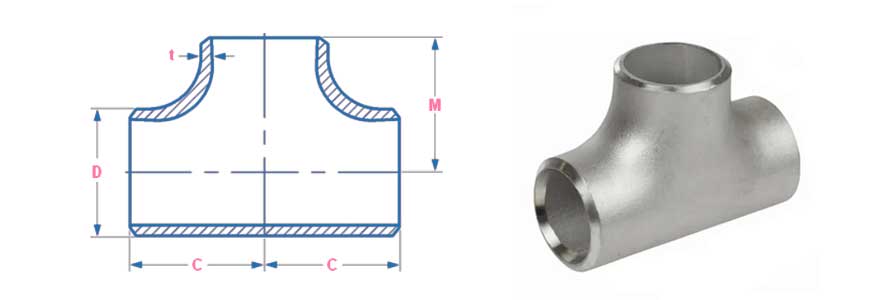

Alloy Incoloy 800H Tee Dimension Chart
| NPS | Center to End | Outer Diameter | Center to End_2 |
|---|---|---|---|
| NPS | C | D | M |
| 1/2 | 25 | 21.3 | 25 |
| 1 | 38 | 33.4 | 38 |
| 1.1/2 | 57 | 48.3 | 57 |
| 2 | 64 | 60.3 | 64 |
| 3 | 86 | 88.9 | 86 |
| 4 | 105 | 114.3 | 105 |
| 6 | 143 | 168.3 | 143 |
| 10 | 216 | 273 | 216 |
| 14 | 279 | 355.6 | 279 |
| 18 | 343 | 457 | 343 |
| 22 | 419 | 559 | 419 |
| 26 | 495 | 660 | 495 |
| 30 | 559 | 762 | 559 |
| 34 | 635 | 864 | 635 |
| 38 | 711 | 965 | 711 |
| 42 | 762 | 1067 | 711 |
| 46 | 851 | 1168 | 800 |
| 48 | 889 | 1219 | 838 |

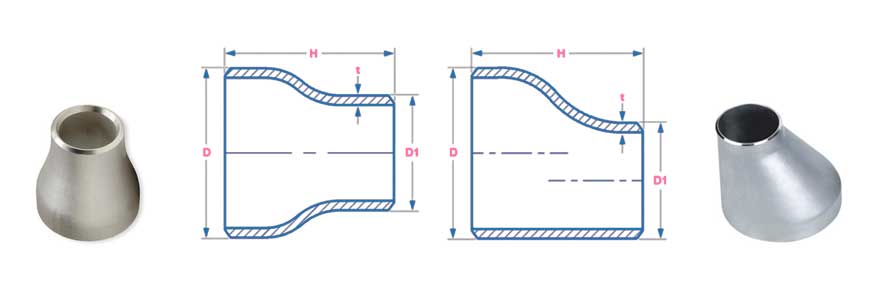

ASME SB366 UNS N08800 Reducer Dimension
| Size (NPS) | Outer Dia. / D1 | Outer Dia. / D | Length / H |
|---|---|---|---|
| 3/4 - 1/2 | 21.3 | 26.7 | 38 |
| 1 - 3/4 | 26.7 | 33.4 | 51 |
| 1.1/4 - 3/4 | 26.7 | 42.2 | 51 |
| 1.1/2 - 1/2 | 21.3 | 48.3 | 64 |
| 1.1/2 - 1 | 33.4 | 48.3 | 64 |
| 2 - 3/4 | 26.7 | 60.3 | 76 |
| 2 - 1.1/4 | 42.2 | 60.3 | 76 |
| 2.1/2 - 1 | 33.4 | 73 | 89 |
| 2.1/2 - 1.1/2 | 48.3 | 73 | 89 |
| 3 - 1.1/4 | 42.2 | 88.9 | 89 |
| 3 - 2 | 60.3 | 88.9 | 89 |
| 3.1/2 - 1.1/4 | 42.2 | 101.6 | 102 |
| 3.1/2 - 2 | 60.3 | 101.6 | 102 |
| 3.1/2 - 3 | 88.9 | 101.6 | 102 |
| 4 - 2 | 60.3 | 114.3 | 102 |
| 4 - 3 | 88.9 | 114.3 | 102 |
| 5 - 2 | 60.3 | 141.3 | 127 |
| 5 - 3 | 88.9 | 141.3 | 127 |
| 5 - 4 | 114.3 | 141.3 | 127 |
| 6 - 3 | 88.9 | 168.3 | 140 |
| 6 - 4 | 114.3 | 168.3 | 140 |
| 8 - 3.1/2 | 101.6 | 219.1 | 152 |
| 8 - 5 | 141.3 | 219.1 | 152 |
| 10 - 4 | 114.3 | 273 | 178 |
| 10 - 6 | 168.3 | 273 | 178 |
| 12 - 5 | 141.3 | 323.9 | 203 |
| 12 - 8 | 219.1 | 323.9 | 203 |
| 14 - 6 | 168.3 | 355.6 | 330 |
| 14 - 10 | 273 | 355.6 | 330 |
| 16 - 8 | 219 | 406.4 | 356 |
| 16 - 12 | 323.9 | 406.4 | 356 |
| 18 - 10 | 273 | 457 | 381 |
| 18 - 14 | 355.6 | 457 | 381 |
| 20 - 12 | 323.9 | 508 | 508 |
| 20 - 16 | 406.4 | 508 | 508 |
| 22 - 14 | 355.6 | 559 | 508 |
| 22 - 18 | 457 | 559 | 508 |
| 24 - 16 | 406.4 | 610 | 508 |
| 24 - 20 | 508 | 610 | 508 |
| 26 - 18 | 457 | 660 | 610 |
| 26 - 22 | 559 | 660 | 610 |
| 28 - 18 | 457 | 711 | 610 |
| 28 - 24 | 610 | 711 | 610 |
| 30 - 20 | 508 | 762 | 610 |
| 30 - 26 | 660 | 762 | 610 |
| 32 - 24 | 610 | 813 | 610 |
| 32 - 28 | 711 | 813 | 610 |
| 34 - 24 | 610 | 864 | 610 |
| 34 - 30 | 762 | 864 | 610 |
| 36 - 24 | 610 | 914 | 610 |
| 36 - 30 | 762 | 914 | 610 |
| 36 - 34 | 864 | 914 | 610 |
| 38 - 28 | 711 | 965 | 610 |
| 38 - 36 | 914 | 965 | 610 |
| 40 - 32 | 813 | 1016 | 610 |
| 40 - 38 | 965 | 1016 | 610 |
