Mss Sp-75 Fittings

Mss Sp-75 Fittings Manufacturer in India, View MSS SP 75 Buttweld Tee Dimensions, Sizes and Price List, Best Supplier of MSS SP75 Pipe Elbow

MSS Sp75

On This Page

Spec Chart of Mss Sp-75 Fittings Chemical Structure of MSS SP75 Pipe Elbow Mechanical Properties Chart of MSS SP 75 Buttweld Tee Pressure Rating of MSS SP 75 Pipe Reducers MSS SP 75 Elbow Dimension

Gallery

Mss Sp-75 Fittings in Detail

Technical Data

Full Specifications

›Technical Data

Spec Chart of Mss Sp-75 Fittings

col_1	col_2
Standard Specification :	MSS SP-75 Fittings
Application:	Nuclear Power Plant / Water Pipeline Industry / Fabrication Industry / Natural Gas Industry / Chemical Industry / Oil And Gas Industry /
Coating Fitting Faces :	Cold and Hot Dip Galvanized, Oil Black Paint, Zinc Plated, Anti-rust Paint, Yellow Transparent
Check Sizes:	(SMLS UPTO 24”) / 1/2” TO 36” / (Buttweld 8” TO 36” )
Thickness:	View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard:	JIS B2313, ANSI B16.9, MSS-SP-43 Type b, ANSI B16.28, JIS B2312, MSS-SP-43 Type A
Fitting Machining Equipment:	Electric bevelling machine, Pushing Machine, Bending machine, Press machine, Sand-blasting machine etc

Check Where We Supplied Our Materials

col_1	col_2
MSS SP-75 concentric reducer	Malaysia, Malaysia, Philippines, UK
MSS SP75 WPHY steel pipe fittings	South Korea, Singapore, Singapore, Bahrain
MSS SP 75 Elbow B16.9 BW R=1.5D, SCH-40	France, Hong Kong, UAE, Oman
MSS SP 75 Unequal Tee	Australia, NY 12203 (USA), China, Sweden
MSS SP 75 Weld Eccentric Reducer	USA, Romania, Ellington -United States, Netherlands
MSS SP 75 Lap Joint Stub Ends	Malaysia, Europe, Thailand, Qatar
MSS SP-75 Cross	South Africa, Los Alamos -Mexico, Malaysia, United Kingdom -UK
MSS SP-75 Long Stub End	Indonesia, UK, Nigeria, Philippines
MSS SP 75 90 Degree Elbows	Canada, Philippines, Belgium, Dammam -KSA
MSS SP 75 Equal Tee B16.9 BW SCH-40	Saudi Arabia (KSA), Malaysia, Singapore, Egypt
MSS SP 75 Return Bends	Spain, Mexico, UK, Singapore
Buttweld MSS SP-75 Elbow	Europe, Norway, Malaysia, United Arab Emirates (UAE)
A860 MSS SP 75 Material	Japan, Thailand, Malaysia, Czechia
MSS-SP75 long radius Elbows	Taiwan, Kuwait, Brazil, South Africa
MSS SP75 SCH40 Fittings	Colombia, Bangladesh, Finland, Malaysia
Low temperature MSS SP75 ECC Pipeline Steel Tee	Turkey, Canada, Dubai, Europe
MSS-SP75 Straight Elbow	Italy, Poland, Malaysia, Philippines
MSS SP75 16"-60" sch5S-schXXS straight tees	Germany, Iran, Singapore, Chile
MSS SP75 high pressure alloy steel elbow	Malaysia, Russia, UAE, Malaysia

›Material Properties

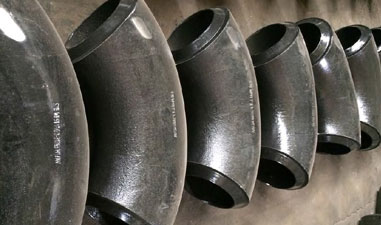

Chemical Structure of MSS SP75 Pipe Elbow

Scroll to see all columns →

C	Mn	S	P	Si	Ni	Cr	Mo	Cu	Ti	V	Cb
0.20	1.00-1.45	0.03	0.01	0.15-0.40	0.50	0.30	0.25	0.35	0.05	0.10	0.06

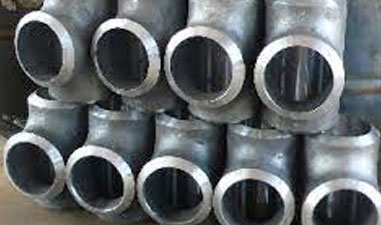

Mechanical Properties Chart of MSS SP 75 Buttweld Tee

MSS SP 75 Class	Tensile Strength	Yield Strength	Elongation	Charpy Test
MSS SP 75 Class	Min. psi	Min. psi	min. %	Ave. Energy absorbed @ 20°F
WPHY 42	60000	42000	25	≥20ft*lbs
WPHY 46	63000	46000	25	≥20ft*lbs
WPHY 52	66000	52000	25	≥20ft*lbs
WPHY 56	71000	56000	20	≥20ft*lbs
WPHY 60	75000	60000	20	≥20ft*lbs
WPHY 65	77000	65000	20	≥20ft*lbs
WPHY 70	82000	70000	18	≥20ft*lbs

›Pressure Ratings

Pressure Rating of MSS SP 75 Pipe Reducers

Scroll to see all columns →

NPS / (inch)	Pipe Sch.	OD / (inch) /	Wall / Thick. / (in) /	Temperature (oF)	Temperature (oF)_2	Temperature (oF)_3	Temperature (oF)_4	Temperature (oF)_5	Temperature (oF)_6	Temperature (oF)_7	Temperature (oF)_8	Temperature (oF)_9
NPS / (inch)	Pipe Sch.	OD / (inch) /	Wall / Thick. / (in) /	100	200	300	400	500	600
NPS / (inch)	Pipe Sch.	OD / (inch) /	Wall / Thick. / (in) /	(Pressure Rating)	(Pressure Rating)	(Pressure Rating)	(Pressure Rating)	(Pressure Rating)	(Pressure Rating)	(Pressure Rating)	(Pressure Rating)	(Pressure Rating)
NPS / (inch)	Pipe Sch.	OD / (inch) /	Wall / Thick. / (in) /	16700	16700	16700	15500	14400	13500
1"	40	1.315	0.133	2205	2205	2205	2047	1902	1783
1"	80	1.315	0.179	3061	3061	3061	2841	2640	2475
1"	160	1.315	0.250	4493	4493	4493	4170	3874	3632
1 1/2"	40	1.900	0.145	1629	1629	1629	1512	1404	1317
1 1/2"	80	1.900	0.200	2303	2303	2303	2138	1986	1862
1 1/2"	160	1.900	0.281	3362	3362	3362	3120	2899	2717
2"	40	2.375	0.154	1371	1371	1371	1272	1182	1108
2"	80	2.375	0.218	1985	1985	1985	1843	1712	1605
2"	160	2.375	0.344	3283	3283	3283	3047	2831	2654
3"	40	3.500	0.216	1301	1301	1301	1208	1122	1052
3"	80	3.500	0.300	1844	1844	1844	1712	1590	1491
3"	160	3.500	0.438	2787	2787	2787	2587	2403	2253
4"	40	4.500	0.237	1102	1102	1102	1023	950	891
4"	80	4.500	0.337	1596	1596	1596	1482	1377	1291
4"	160	4.500	0.531	2611	2611	2611	2424	2552	2111
5"	40	5.563	0.258	965	965	965	896	832	780
5"	80	5.563	0.375	1428	1428	1428	1325	1231	1154
5"	160	5.563	0.625	2474	2474	2474	2296	2133	2000
6"	40	6.625	0.280	877	877	877	814	756	709
6"	80	6.625	0.432	1379	1379	1379	1280	1189	1115
6"	160	6.625	0.719	2382	2382	2382	2211	2054	1925
8"	40	8.625	0.322	771	771	771	716	665	623
8"	80	8.625	0.500	1218	1218	1218	1131	1050	985
8"	160	8.625	0.906	2298	2298	2298	2133	1982	1858
10"	40	10.750	0.365	699	699	699	649	603	565
10"	80	10.750	0.594	1159	1159	1159	1075	999	937
10"	160	10.750	1.125	2289	2289	2289	2124	1974	1850

›Dimensions & Weight

MSS SP 75 Elbow Dimension

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10	col_11
ANSI b16.9 fittings Sizes Nominal	ANSI b16.9 fittings Sizes Nominal	ASME b16 9 Pipe Fitting Outside / Diameter Y	Wall Thickness T / (Pipe Elbow Schedule)	Wall Thickness T / (Pipe Elbow Schedule)	45 Deg Long Radius Elbow Centre to Face B	45 Deg Short Radius Elbow / Weight	90 Deg Long Radiu Elbow Centre to Face A	90 Deg Long Radiu Elbow Weight	90 Deg Short Radius Elbow Centre to Face A	90 Deg Short Radius Elbow Weight Chart
mm	in	mm	mm	Schedule	mm	kg	mm	kg	mm	kg
15	1/2”	21.3	2.78	STD	15.9	0.04	38.1	0.08	–	–
			3.73	X.S	15.9	0.05	38.1	0.10	–	–
20	3/4”	26.7	2.87	STD	11.1	0.04	28.6	0.08	–	–
			3.91	X.S	11.1	0.05	28.6	0.11	–	–
25	1”	33.4	3.38	STD	22.2	0.09	38.1	0.15	25.4	0.11
			4.55	X.S	22.2	0.11	38.1	0.19	25.4	0.14
32	11/4”	42.2	3.56	STD	25.4	0.14	47.6	0.28	31.75	0.18
			4.85	X.S	25.4	0.2	47.6	0.39	31.75	0.24
40	11/2”	48.3	3.68	STD	28.6	0.2	57.1	0.4	38.1	0.26
			5.08	X.S	28.6	0.25	57.1	0.5	38.1	0.35
50	2”	60.3	3.91	STD	34.9	0.36	76.2	0.72	50.8	0.5
			5.54	X.S	34.9	0.5	76.2	1.0	50.8	0.68
65	21/2”	73.0	5.16	STD	44.4	0.73	95.2	1.46	63.5	0.95
			7.01	X.S	44.4	0.91	95.2	1.82	63.5	1.27
80	3”	88.9	5.49	STD	50.8	1.1	114.3	2.18	76.2	1.45
			7.62	X.S	50.8	1.45	114.3	2.86	76.2	1.95
100	4”	114.3	6.02	STD	63.5	2.1	152.4	4.2	101.6	2.8
			8.56	X.S	63.5	2.9	152.4	5.7	101.6	3.9
125	5”	141.3	6.65	STD	79.4	3.4	190.0	6.8	127.0	4.8
			9.5	X.S	79.4	5.0	190.0	10.0	127.0	6.5
150	6”	168.3	7.11	STD	95.2	5.1	229.0	10.1	152.4	6.8
			10.97	X.S	95.2	7.7	229.0	15.3	152.4	10.2
200	8”	219.1	8.18	STD	127.0	10.2	305.0	20.4	203.0	13.6
			12.7	X.S	127.0	15.5	305.0	30.9	203.0	20.9
250	10”	273.9	9.27	STD	159.0	18.1	381.0	36.1	254.0	24.1
			12.7	X.S	159.0	24.4	381.0	48.8	254.0	32.5
300	12”	323.9	9.52	STD	190.0	26.6	457.0	53.1	305.0	35.4
			12.7	X.S	190.0	35.0	457.0	70.0	305.0	46.7
350	14”	355.6	9.52	STD	222.0	34.1	533.0	68.1	356.0	45.4
			12.7	X.S	222.0	45.0	533.0	90.0	356.0	60.0
400	16”	406.4	9.52	STD	254.0	45.0	610.0	89.3	406.0	59.5
			12.7	X.S	254.0	59.0	610.0	118.0	406.0	78.7
450	18”	457.0	9.52	STD	286.0	56.5	686.0	113.0	457.0	75.6
			12.7	X.S	286.0	75.0	686.0	150.0	457.0	100.0
500	20”	508.0	9.52	STD	318.0	85.0	762.0	140.0	508.0	93.5
			12.7	X.S	318.0	112.5	762.0	186.0	508.0	124.0
600	24”	610.00	9.52	STD	381.0	101.5	914.0	203.0	610.0	135.0
			12.7	X.S	381.0	134.5	914.0	269.0	610.0	179.0
