ASTM A860 Wphy 42 Fittings

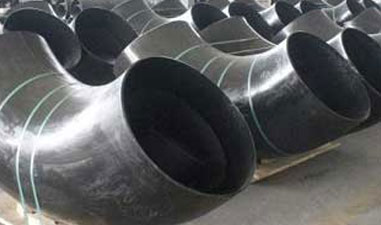

A leading Astm A860 Wphy 42 Fittings manufacturer in India, best price of Mss Sp75 Wphy 42 Elbow in Mumbai. Refer Sizes and Dimensions Astm A234 Wphy 42 Tee/ Reducer/ Stub End
Carbon Steel
On This Page
Gallery
ASTM A860 Wphy 42 Fittings in Detail
Technical Data
Full Specifications
›Finishes & Forms
Specification Format of Astm A860 Wphy 42 Fittings
| col_1 | col_2 |
|---|---|
| Grade | WPHY 42 |
| Type | Seamless / >Welded / Fabricated |
| Dimensions | MSS-SP-43, ANSI/ASME B16.9, B16.28, . |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Wall thickness | SCH30, STD, SCH40, SCH60, SCH10, SCH20, XS, SCH80, SCH120, SCH140, SCH160, SCH100, XXS available with NACE MR 01-75 |
| Export to | Egypt, Ireland, Brazil, Iran, Spain, Canada, Korea, India, Saudi Arabia, Thailand, Singapore, Indonesia, Oman, Dubai, Ukraine, USA, Peru, etc |
| Size Range | ½” to 48″ in Sch XXS, 10s, 80s, 160s, 40s. |
| Elbows | Angle : 180 deg, 1.0D, 22.5 deg, 30deg, 45 deg, 90 deg, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D . / Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, 45º Elbows, Stub End, Pipe Bend, Pipe Cap |
›Material Properties

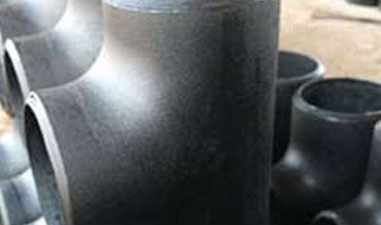

Chemical Compatibility of Astm A234 Wphy 42 Tee
Scroll to see all columns →
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WPHY 42 | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
Mechanical Characteristics of Wphy 42 Stub End
| Element | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|
| WPHY 42 | 515-690 | 415 | 28 % |
›Technical Data
A860 Grade WPHY 42 fittings MSS standard list
| MSS SP-25 | Standard Marking System for Valves, Fittings, Flanges and Unions. |
|---|---|
| MSS SP-43 | Wrought Stainless Steel Butt Welding Fittings. |
| MSS SP-44 | Standard for Steel Pipe Line Flanges. |
| MSS SP-75 | Specification for High Test Wrought Butt Welding Fittings |
| MSS SP-79 | Socket Welding Reducer Inserts Fittings. |
| MSS SP-83 | Carbon Steel Pipe Unions Socket welding and Threaded Fittings. |
| MSS SP-87 | Factory-Made Butt Welding Fittings for Class 1 Nuclear Piping Applications. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs Fittings. |
| MSS SP-97 | Integrally Reinforced Forged Branch Outlet Fittings-socket Welding, Threaded and Butt Welding Ends. |
Manufacturing Standards of A234 Wphy 42 Fittings
| col_1 | col_2 | col_3 |
|---|---|---|
| WPHY 42 Fittings | Factory-Made Wrought Buttwelding Fittings | Long Radius Elbows, Long Radius Reducing Elbows, Long Radius Returns, Short Radius Elbows, Short Radius 180-deg Rerurns, 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Lap Joint Stub Ends, Caps, Reducers |
| ASME B16.28 | Short Radius Elbows, Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, reducers |
Pressure Temperature Rating of WPHY 42 Butt Weld Fittings
| col_1 | col_2 | col_3 | col_4 | col_5 | col_6 |
|---|---|---|---|---|---|
| Nominal Pipe Size | Wall Thickness* | ** Working Pressure– lbs per square inch at the Fahrenheit Temperature Indicated | ** Working Pressure– lbs per square inch at the Fahrenheit Temperature Indicated | ** Working Pressure– lbs per square inch at the Fahrenheit Temperature Indicated | |
| Nominal Pipe Size | Wall Thickness* | -20 to 650 | 700 | 750 | *** 800 |
| 1/2 | 0.109 | 1695 | 1621 | 1463 | 1220 |
| 3/4 | 0.113 | 1455 | 1392 | 1256 | 1046 |
| 1 | 0.133 | 1575 | 1506 | 1359 | 1134 |
| 1 1/4 | 0.140 | 1065 | 1019 | 919 | 766 |
| 1 1/2 | 0.145 | 1005 | 960 | 867 | 723 |
| 2 | 0.154 | 900 | 861 | 777 | 648 |
| 2 1/2 | 0.203 | 1215 | 1162 | 1048 | 874 |
| 3 | 0.216 | 1095 | 1047 | 945 | 788 |
| 3 1/2 | 0.226 | 1020 | 975 | 880 | 734 |
| 4 | 0.237 | 975 | 932 | 841 | 702 |
| 5 | 0.258 | 885 | 846 | 764 | 637 |
| 6 | 0.280 | 840 | 803 | 725 | 604 |
| 8 | 0.322 | 765 | 731 | 660 | 550 |
| 10 | 0.365 | 720 | 688 | 621 | 518 |
| 12 | 0.375 | 630 | 602 | 543 | 453 |
| 14 | 0.375 | 570 | 545 | 492 | 410 |
| 16 | 0.375 | 495 | 473 | 427 | 356 |
| 18 | 0.375 | 450 | 430 | 388 | 354 |
| 20 | 0.375 | 405 | 387 | 349 | 291 |
| 24 | 0.375 | 330 | 315 | 284 | 237 |
| 30 | 0.375 | 265 | 254 | 229 | 190 |
| 36 | 0.375 | 220 | 198 | 178 | 148 |
| 42 | 0.375 | 189 | 181 | 163 | 136 |
| 48 | 0.375 | 165 | 158 | 143 | 118 |
Refer Material supplied in following Countries
| col_1 | col_2 |
|---|---|
| LR 180 Degree Elbow WPHY 42 | Poland, Singapore, Romania, Kuwait |
| CS WPHY Gr 42 Seamless Butt Weld Fittings | Canada, Iran, Malaysia, Singapore |
| carbon steel welding a860 wphy-42 elbow pipe fitting | Europe, Malaysia, Singapore, USA |
| Reducers Ecc smls butt weld 102mm long sch80 WPHY 42 | Singapore, Norway, Los Alamos -Mexico, Finland |
| WPHY 42 Seamless Eccentric Reducer, ANSI B16.9, BW | Mexico, Malaysia, Taiwan, Thailand |
| 14 Inch, SCH 60, ASTM A860 WPHY 42 Seamless Pipe Cap | Singapore, Hong Kong, Dammam -KSA, UAE |
| A860 WPHY 42 schedule 40 pipe elbow | Europe, Egypt, Sweden, Oman |
| astm a860 wphy 42 seamless equal tee | Malaysia, Philippines, Europe, France |
| 16" Equal Tee Sch-80 ASTM A860 WPHY GR-42 | Malaysia, Dubai, Qatar, Nigeria |
| ASTM A860 WPHY 42 SEAMLESS ELBOW - 80" x SCH.100 | Spain, Australia, Malaysia, Germany |
| C.S WELDED 90deg. elbow SR ASTM A860 Gr. WPHY 42 | UK, United Arab Emirates (UAE), Philippines, Bahrain |
| Pipe Reducer ASTM A860 WPHY 42 BW MSS SP 75 | Ellington -United States, Russia, NY 12203 (USA), Brazil |
| Sch 60, DN1200, ASTM A860 WPHY 42 BW 90 Deg LR, Elbow | Belgium, Malaysia, Czechia, UAE |
| 1/2"~48" ASTM A860 WPHY-42 ASME B16.9 STEEL ELBOW TEE | United Kingdom -UK, Chile, China, South Africa |
| A860 WPHY 42 Equal Tee B16.9 BW SCH-40 | Malaysia, Turkey, Colombia, South Africa |
| A860 WPHY 42 Fittings B16.9 BW R=1.5D, SCH-40 | Canada, Italy, Japan, Saudi Arabia (KSA) |
| 26 Inch, SCH 80 Carbon Steel Beveled Ends Pipe Cap | Malaysia, UK, South Korea, Bangladesh |
| SCH XS, 26 Inch, ASME B16.9, ASTM A860 WPHY 42 Cap | Thailand, UK, Malaysia, Indonesia |
| 2 Inch x 1 Inch, BW, ASTM A860 WPHY 42 Concentric Reducer | Philippines, Netherlands, Malaysia, Philippines |
