Titanium Grade 2 Pipe

PED approved Titanium Grade 2 Pipe Manufacturer, Ask ASTM B338 Gr 2 Boiler Tube Price Per Kg in India, UNS R50400 Seamless/ Welded Pipe Supplier, View Din 3.7035 Round/ Square Tubing Size & Dimensions

Titanium

On This Page

Material Specification of Titanium Grade 2 Pipe Grade 2 Titanium Pipe Weight Chart Titanium Gr 2 Pipe Sizes Pressure Rating of Cp Grade 2 Titanium ERW Pipe Grade 2 Titanium pipe test Titanium NCF Grade 2 Tubes Sizes Chemical Formula of ASTM B338 Gr 2 Boiler Tube Mechanical Strength of WERKSTOFF NR. 3.7035 Pipe Equivalent Material of Cp Grade 2 Titanium Tubing Titanium Grade 2 Pipe & Tubing Physical Properties Titanium 3.7165 Pipe Schedule Chart Thermal Properties of Titanium Grade 2 Pipe Applications of UNS R50400 Heat Exchanger Tube Corrosion resistance of Ti Alloy Gr 2 Tubing ASTM B338 Gr 2 Boiler Tube Features

Gallery

Titanium Grade 2 Pipe in Detail

Specification

Features & Applications

Grade 2 Titanium pipe test

Hardness Test
Flaring Test
Flattening Test
Chemical Analysis – Spectro Analysis
Intergranular Corrosion (IGC) Test
Pitting Resistance Test

Applications of UNS R50400 Heat Exchanger Tube

Chemical processing equipment
Power plant cooling system components
Hydrocarbon refining/processing
Anode/cathode/cell parts
Pulp/paper bleaching/washing equipment
Air pollution control equipment
Hydrometallurgical extraction

Corrosion resistance of Ti Alloy Gr 2 Tubing

Seawater and brines
Oxidizing acids
Organics and organic acids
Inorganic salts
Alkaline solutions
Sulfur compounds
Moist chlorine gas

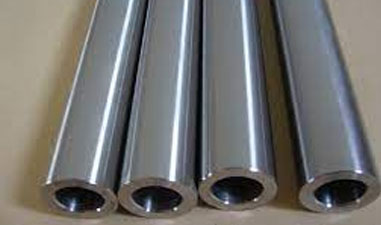

ASTM B338 Gr 2 Boiler Tube Features

High heat transfer efficiency
Good formability and weldability
Very low thermal expansion
Moderate strength
Resistant to stress corrosion cracking

Technical Data

Full Specifications

›Technical Data

Material Specification of Titanium Grade 2 Pipe

col_1	col_2
Dimensions	ASTM, ASME and API
Specialized in	Large Diameter Size
Schedule	SCH80, XS, SCH60, SCH80, SCH20, SCH30, SCH40, STD, SCH120, SCH140, SCH160, XXS
Export to	Thailand, Singapore, Indonesia, Iran, Spain, Canada, Korea, Ireland, Brazil, Oman, Dubai, India, Saudi Arabia, Egypt, Ukraine, USA, Peru, etc
Length	Double Random , Single Random, & Cut Length.
Type	Welded / Fabricated / Seamless / ERW / LSAW Pipes
Form	Square, Rectangular, Round, Hydraulic Etc
End	Beveled End, Plain End, Treaded

Titanium Gr 2 Pipe Sizes

Pipe OD / mm	Pipe WT / mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	3.02	1/4	80S	0.81
13.72	2.24	1/4	40S	0.64
17.15	1.65	3/8	10S	0.64
17.15	3.20	3/8	80S	1.12
17.15	2.31	3/8	40S	0.86
21.34	2.11	1/2	10S	1.02
21.34	3.73	1/2	80S	1.65
21.34	2.77	1/2	40S	1.29
26.67	2.11	3/4	10S	1.30
26.67	3.91	3/4	80S	2.23
26.67	2.87	3/4	40S	1.71
33.40	2.77	1	10S	2.13
33.40	4.55	1	80S	3.29
33.40	3.38	1	40S	2.54
33.40	6.352)	1	160	4.30
42.16	3.56	1¼	40S	3.44
42.16	2.77	1¼	10S	2.73
42.16	4.85	1¼	80S	4.53
48.26	2.77	1½	10S	3.16
42.16	6.352)	1¼	160	5.69
48.26	3.68	1½	40S	4.11
60.33	2.77	2	10S	3.99
48.26	5.08	1½	80S	5.49
60.33	3.91	2	40S	5.52
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
60.33	5.54	2	80S	7.60
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
73.03	5.16	2½	40S	8.77
88.90	7.62	3	80S	15.51
88.90	5.49	3	40S	11.47
88.90	11.132)	3	160	21.67
101.60	5.74	3½	40S	13.78
101.60	3.05	3½	10S	7.53
101.60	8.08	3½	80S	18.92
114.30	6.02	4	40S	16.32
114.30	3.05	4	10S	8.50
114.30	8.56	4	80S	22.67
141.30	6.55	5	40S	22.10
114.30	13.492)	4	160	34.05
141.30	9.53	5	80S	31.44
168.28	3.4	6	10S	14.04
141.30	15.882)	5	160	49.87
168.28	7.11	6	40S	28.69
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
168.28	10.97	6	80S	43.21
219.08	8.18	8	40S	43.20
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97
219.08	12.7	8	80S	65.63

Titanium NCF Grade 2 Tubes Sizes

Wall Thickness	Tube Sizes ( O.D.)
.010	1/16" , 1/8" , 3/16"
.012	1/8"
.020	1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.028	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.016	1/8" , 3/16"
.049	3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.035	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065	1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.095	1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.083	1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.109	1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.125	3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.120	1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.134	1"
.375	3 1/2"
.250	3"

Equivalent Material of Cp Grade 2 Titanium Tubing

col_1	col_2	col_3
STANDARD	UNS	WERKSTOFF NR.
Titanium Gr 2	R50400	3.7035

Titanium Grade 2 Pipe & Tubing Physical Properties

Scroll to see all columns →

Density	Melting Range	Modulus of Elasticity (Tension)	Specific Heat	Mean Coefficient of Expansion	Thermal conductivity	Electrical Resistivity
kg/m3	°C	GPa	J/kg. °C	x10 -6 / °C	W / m. °C	micro-ohm.m
4,507	1668± 10	103	519	8.41	11.4	0.420

Titanium 3.7165 Pipe Schedule Chart

1/8" IPS(.405"O. D.)	3 1/2" IPS( 4.000"O. D.)
1/4" IPS(.540"O. D.)	4" IPS(4.500"O. D.)
SCH 40, 80	SCH 10, 40, 80, 160, XXH
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
SCH 10, 40, 80	SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.)	5" IPS( 5.563"O. D.)
1/2" IPS(.840"O. D.)	6" IPS(6.625"O. D.)
3/4" IPS(1.050"O. D.)	8 ” IPS(8.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
SCH 10, 40, 80, 160, XXH	SCH 5, 10, 40, 80, 120, 160, XXH
SCH 5, 10, 40, 80, 160, XXH	SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1" IPS:(1.315′O. D.)	10" IPS(10.750"O. D.)
1-1/4" IPS(1.660"O. D.)	12" IPS(12.750"O. D.)
1-1/2" IPS(1.900"O. D.)	14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH	SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
SCH 10, 40, 80, 160, XXH	SCH10 (.188), SCH40 (.375)
SCH 10, 40, 80, 160, XXH	SCH10(.188), SCH40(.375)
2" IPS(2.375"O. D.)	16" IPS(16.000"O. D.)
2 1/2" IPS(2.875"O. D.)	18" IPS (18.000"O. D.)
3" IPS( 3.500"O. D.)
SCH 10, 40, 80, 160, XXH	SCH-40 (.375)
SCH 5, 10, 40, 80, 160, XXH

Thermal Properties of Titanium Grade 2 Pipe

Properties	Metric	Imperial
Thermal expansion co-efficient (@0.000-100°C/32-212°F)	8.60 µm/m°C	4.78 µin/in°F
Thermal conductivity	21.97 W/mK	152.5 BTU in/hr.ft².°F

Take The Reference Of Quality And Timely Delivery From Our Clients In Following Countries

col_1	col_2
GR2 Titanium Exhaust pipe Dia=38mm	Malaysia, Colombia, China, Sweden
ASTM B 338 Grade 2 Titanium Pipe Thin Wall	Malaysia, Europe, UAE, United Kingdom -UK
Titanium Alloy Gr 2 Polished Pipe	Thailand, Germany, Malaysia, Czechia
AMS 4942 Heat Exchanger Tube	Poland, Canada, Ellington -United States, UK
GR2 titanium exhaust straight pipe	Iran, Italy, Singapore, Chile
Grade 2 od 19 x18mm gr2 seamless titanium tube	Europe, France, Thailand, Qatar
63mm /2.5 Inch Titanium Gr2 Flexible Exhaust tube With 1.0mm Wall Thickness	Hong Kong, Malaysia, UAE, Oman
8mm GR2 TI titanium pipe	Philippines, Indonesia, Belgium, Dammam -KSA
5mm titanium gr 2 welding tube	Romania, Japan, Malaysia, Europe
Titanium WERKSTOFF NR. 3.7035 ERW Pipe	South Korea, NY 12203 (USA), Malaysia, Singapore
Cold Drawn Gr 2 Titanium Seamless Pipe	Kuwait, Saudi Arabia (KSA), Brazil, South Africa
Titanium NCF Gr 2 Rectangular Tubing	Bangladesh, USA, Finland, Malaysia
ASME SB337 Grade 2 Titanium Round Pipe	Canada, Malaysia, Singapore, Philippines
Small Diameter Grade 2 Pure Titanium Tubing	South Africa, Singapore, Finland, Bahrain
89mm Grade 2 titanium pipe	Russia, Malaysia, Dubai, Netherlands
ASTM B337 Grade 2 Titanium Exhaust Tube	Norway, Turkey, Malaysia, United Arab Emirates (UAE)
Schedule 5 3/4 inches CP Grade 2 Ti Pipe	UK, Australia, Nigeria, Philippines
3mm od titanium grade 2 tube	Los Alamos -Mexico, Taiwan, Philippines, Malaysia
SCH40 Grade 2 Titanium pipe	Spain, Mexico, UK, Egypt

›Dimensions & Weight

Grade 2 Titanium Pipe Weight Chart

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
NPS	Outside Diameter (OD)	Outside Diameter (OD)	Wall Thickness	Wall Thickness		Weight	Weight
NPS	Inch	Millimeter	Inch	Millimeter	Schedule	kg/Meter	Lb/Feet
3/4″	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.154	3.912	80 STD	2.195	1.474
1/2″	0.840	21	0.109	2.769	40 STD	1.268	0.851
			0.147	3.734	80 STD	1.621	1.088
1″	1.315	33	0.133	3.378	40 STD	2.501	1.679
			0.179	4.547	80 STD	3.325	2.172
1 1/2″	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
1 1/4″	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.191	4.851	80 STD	4.464	2.997
2″	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
3″	3.500	89	0.216	5.486	40 STD	11.284	7.576
			0.300	7.620	80 STD	15.272	10.253
2 1/2″	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
4″	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
8″	8.625	219	0.188	4.775		25.233	16.940
			0.203	5.156		27.198	18.259
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.500	12.700	80 XHY	64.627	43.388
6″	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
10″	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12″	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14″	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18″	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20″	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24″	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30″	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36″	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42″	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48″	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

›Pressure Ratings

Pressure Rating of Cp Grade 2 Titanium ERW Pipe

Scroll to see all columns →

Pipe Outside Diameter / (in.)	Wall Thickness of Pipe (In)	Wall Thickness of Pipe (In)_2	Wall Thickness of Pipe (In)_3	Wall Thickness of Pipe (In)_4	Wall Thickness of Pipe (In)_5	Wall Thickness of Pipe (In)_6	Wall Thickness of Pipe (In)_7	Wall Thickness of Pipe (In)_8
Pipe Outside Diameter / (in.)	.028	.035	.049	.065	.083	.095	.109	.120
Pipe Outside Diameter / (in.)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)	Working Pressure (psig)
1/8	7900	10100
1/4	3700	4800	7000	9500
3/8		3100	4400	6100
5/16		3700	5400	7300
1/2		2300	3200	4400
1				2200	2900	3400	3900	4300
3/4			2200	3000	4000	4600

›Material Properties

Chemical Formula of ASTM B338 Gr 2 Boiler Tube

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9
Titanium Gr 2	C	Ti	N	Fe	H	O	V	Al
Titanium Gr 2	0.1 max	99.2 min	0.03 max	0.3 max	0.015 max	0.25 max	–	–

Mechanical Strength of WERKSTOFF NR. 3.7035 Pipe

col_1	col_2	col_3	col_4	col_5
Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
4.5 g/cm3	1665 °C (3030 °F)	Psi – 39900 , MPa – 275	Psi – 49900 , MPa – 344	20 %

Titanium Grade 2 Pipe

Get a Price

Request a quote for this item

Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.

Request a Quote for Titanium Grade 2 Pipe

Contact

Send us the spec

Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.

Enquiry FormReply same working day

Direct Contact

Head Office

Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India

Phone / WhatsApp

+91 93240 06771

exportompmo@gmail.com

Working Hours

Monday – Saturday8:00 AM – 8:00 PM

SundayClosed
