Stainless Steel Coiled Tubing

Leading Supplier of Stainless Steel Coiled Tubing, Ask for price list of 304/ 316 SS Coil Tubes, Check Stainless Steel Coil Tubing Heat Exchanger Dimension

Stainless Steel

On This Page

Spec Chart of Stainless Steel Coil Tubing Chemical Compatibility of Stainless Steel Coil Tube Mechanical Properties Chart of Stainless Steel Tubing Coil SS Heat Exchanger Coiled Tubes Equivalent grades 316 Stainless Steel Coiled Tubing Sizes 3/8 Coiled Stainless Steel Tubing Tolerances Stainless Steel Coiled Tubing Pressure Rating

Gallery

Stainless Steel Coiled Tubing in Detail

Specification

Features & Applications

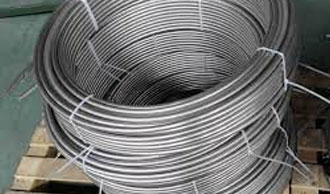

3/8 Coiled Stainless Steel Tubing Tolerances

OD Tolerance: +0.005/-0 in.
Hardness: Maximum 80 HRB (Rockwell)
Wall Thickness: ±10%
Chemistry: Min. 2.5% Molybdenum

Technical Data

Full Specifications

›Technical Data

Spec Chart of Stainless Steel Coil Tubing

col_1	col_2
Outside Diameter	1/16” through 3/4"
Thickness	010" through .083”
Grades	TP - 304, 304L, 316, 316L, 201
Export to	Saudi Arabia, Spain, Oman, Dubai, Singapore, Korea, Iran, India, Thailand, Egypt, Ukraine, Brazil, Canada, Ireland, Indonesia, USA, Peru, etc
SS Welded Coil Tube Specifications	ASTM A249 and ASTM A269

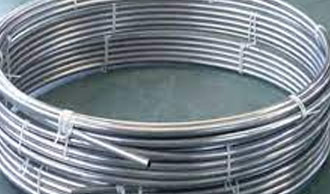

316 Stainless Steel Coiled Tubing Sizes

SIZE	OD	WALL	AVG. LENGTH(FEET) +/-
.125" OD X .035" W	0.125	0.035	6,367
.250" OD X .035" W	0.250	0.035	2,665
.250" OD X .035" W (15 Ra Max)	0.250	0.035	2,665
.250" OD X .049" W	0.250	0.049	2,036
.250" OD X .065" W	0.250	0.065	1,668
.375" OD X .035" W	0.375	0.035	1,685
.375" OD X .035" W (15 Ra Max)	0.375	0.035	1,685
.375" OD X .049" W	0.375	0.049	1,225
.375" OD X .065" W	0.375	0.065	995
.500" OD X .035" W	0.500	0.035	1,232
.500" OD X .049" W	0.500	0.049	909
.500" OD X .049" W (15 Ra Max)	0.500	0.049	909
.500" OD X .065" W	0.500	0.065	708
.750" OD X .049" W	0.750	0.049	584
.750" OD X .065" W	0.750	0.065	450
6 MM OD X 1 MM W	6mm	1mm	2,610
8 MM OD X 1 MM W	8mm	1mm	1,863
10 MM OD X 1 MM W	10mm	1mm	1,449
12 MM OD X 1 MM W	12mm	1mm	1,188

Are you searching a supplier for below products

col_1	col_2
3/8 coiled stainless steel tubing	Chile, Iran, Canada, Philippines

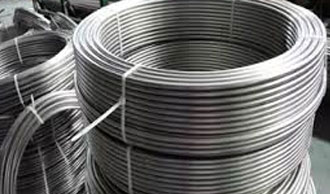

A269 Bendable 1 Inch 304 Stainless Steel Coil Tubing	United Arab Emirates (UAE), Norway, Romania, Europe
316 stainless steel coiled tubing equipment large diameter	Netherlands, Russia, Malaysia, Sweden
304l seamless stainless steel coiled tubing	Egypt, Mexico, Los Alamos -Mexico, Malaysia
316 stainless steel tubing coil for heat exchanger	United Kingdom -UK, Malaysia, NY 12203 (USA), Singapore
Heat Exchanger Stainless Steel Coil Tubing 316L	UK, Poland, Philippines, Dammam -KSA
Stainless steel tube coil For heat exchanger 316L 12.7*1mm	Singapore, Malaysia, Europe, Qatar
316 Seamless Stainless Steel Condenser Coil Tube	Malaysia, Japan, Thailand, Czechia
1/4 x 0.049 316L stainless steel control line coiled tubing	China, Colombia, Bangladesh, Malaysia
Stainless Steel pipe Hydraulic Control Line coil tube	Philippines, Taiwan, Kuwait, South Africa
4mm Stainless Steel Coiled Tubing	Malaysia, South Korea, Singapore, Bahrain
SS316l Stainless Steel Seamless Coiled Tube	Belgium, Indonesia, UK, Philippines
corrugated steel tubing coil for heated exchanger	Thailand, France, Hong Kong, Oman
316 Stainless Steel Bright Annealing Capillary Tube	Malaysia, Germany, Turkey, Malaysia
3/4" coiled stainless tubing	Finland, USA, Malaysia, Dubai
3/8 3/4 inch stainless steel tubing 304 in coil	Brazil, Saudi Arabia (KSA), Spain, UK
1/2" OD x 50' Length x .020" Wall Type 316/316L Stainless Steel Tubing Coil	Singapore, South Africa, Europe, UAE
Grade 310 Stainless steel coil tube	Nigeria, Australia, Canada, Ellington -United States
micro capillary stainless steel 316L coiled tube	UAE, Malaysia, Italy, Singapore

›Material Properties

Chemical Compatibility of Stainless Steel Coil Tube

Scroll to see all columns →

Grade	Grade_2	C	Mn	Si	P	S	Cr	Mo	Ni	N	Ti	Fe
304	min.						18.0		8.0
304	max.	0.08	2.0	0.75	0.045	0.030	20.0		10.5	0.10
304L	min.						18.0		8.0
304L	max.	0.030	2.0	0.75	0.045	0.030	20.0		12.0	0.10
304H	min.	0.04					18.0		8.0
304H	max.	0.010	2.0	0.75	0.045	0.030	20.0		10.5
SS 310		0.015 max	2 max	0.015 max	0.020 max	0.015 max	24.00 26.00	0.10 max	19.00 21.00	54.7 min
SS 310S		0.08 max	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00	0.75 max	19.00 21.00	53.095 min
SS 310H		0.04 0.10	2 max	1.00 max	0.045 max	0.030 max	24.00 26.00		19.00 21.00	53.885 min
316	min.						16.0	2.03.0	10.0
316	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316L	min.						16.0	2.03.0	10.0
316L	max.	0.035	2.0	0.75	0.045	0.030	18.0	2.03.0	14.0
316TI		0.08 max	10.00 14.00	2.0 max	0.045 max	0.030 max	16.00 18.00	0.75 max	2.00 3.00
317		0.08 max	2 max	1 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00				57.845 min
SS 317L		0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 20.00	3.00 4.00	11.00 15.00			57.89 min
SS 321		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	5(C+N) 0.70 max
SS 321H		0.04 0.10	2.0 max	1.0 max	0.045 max	0.030 max	17.00 19.00		9.00 12.00	0.10 max	4(C+N) 0.70 max
347/ 347H		0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	17.00 20.00		9.0013.00
410	min.						11.5
410	max.	0.15	1.0	1.00	0.040	0.030	13.5		0.75
446	min.						23.0			0.10
446	max.	0.2	1.5	0.75	0.040	0.030	30.0		0.50	0.25
904L	min.						19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

Mechanical Properties Chart of Stainless Steel Tubing Coil

col_1	col_2	col_3	col_4	col_5	col_6
Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
304/ 304L	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
304H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
310 / 310S / 310H	7.9 g/cm3	1402 °C (2555 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	40 %
306/ 316H	8.0 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
316L	8.0 g/cm3	1399 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
317	7.9 g/cm3	1400 °C (2550 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
321	8.0 g/cm3	1457 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
347	8.0 g/cm3	1454 °C (2650 °F)	Psi 75000 , MPa 515	Psi 30000 , MPa 205	35 %
904L	7.95 g/cm3	1350 °C (2460 °F)	Psi 71000 , MPa 490	Psi 32000 , MPa 220	35 %

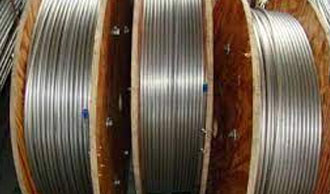

SS Heat Exchanger Coiled Tubes Equivalent grades

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 304	1.4301	S30400	SUS 304	304S31	08Х18Н10	Z7CN18‐09	X5CrNi18-10
SS 304L	1.4306 / 1.4307	S30403	SUS 304L	3304S11	03Х18Н11	Z3CN18‐10	X2CrNi18-9 / X2CrNi19-11
SS 304H	1.4301	S30409	–	–	–	–	–
SS 310	1.4841	S31000	SUS 310	310S24	20Ch25N20S2	–	X15CrNi25-20
SS 310S	1.4845	S31008	SUS 310S	310S16	20Ch23N18	–	X8CrNi25-21
SS 310H	–	S31009	–	–	–	–	–
SS 316	1.4401 / 1.4436	S31600	SUS 316	316S31 / 316S33	–	Z7CND17‐11‐02	X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L	1.4404 / 1.4435	S31603	SUS 316L	316S11 / 316S13	03Ch17N14M3 / 03Ch17N14M2	Z3CND17‐11‐02 / Z3CND18‐14‐03	X2CrNiMo17-12-2 / X2CrNiMo18-14-3
SS 316H	1.4401	S31609	–	–	–	–	–
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2
SS 317	1.4449	S31700	SUS 317	–	–	–	–
SS 317L	1.4438	S31703	SUS 317L	–	–	–	X2CrNiMo18-15-4
SS 321	1.4541	S32100	SUS 321	–	–	–	X6CrNiTi18-10
SS 321H	1.4878	S32109	SUS 321H	–	–	–	X12CrNiTi18-9
SS 347	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10
SS 347H	1.4961	S34709	SUS 347H	–	–	–	X6CrNiNb18-12
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

›Pressure Ratings

Stainless Steel Coiled Tubing Pressure Rating

Scroll to see all columns →

AVE. WALL INCHES	MIN YIELD STRENGTH (PSI)	MIN TENSILE STRENGTH (PSI)	THEORETICAL BURST PRESSURE * (PSI)	WORKING PRESSURE (PSI) 25% OF BURST	THEORETICAL YIELD POINT ** (PSI)	COLLAPSE PRESSURE *** (PSI)	col_8
0.250	0.020	30,000	75,000	14,286	3,571	5,714	4,416
0.250	0.028	30,000	75,000	21,649	5,412	8,660	5,967
0.250	0.035	30,000	75,000	29,167	7,292	11,667	7,224
0.250	0.049	30,000	75,000	48,355	12,089	19,342	9,455
0.250	0.065	30,000	75,000	81,250	20,313	32,500	11,544
0.375	0.020	30,000	75,000	8,955	2,239	3,582	3,029
0.375	0.028	30,000	75,000	13,166	3,292	5,266	4,145
0.375	0.035	30,000	75,000	17,213	4,303	6,885	5,077
0.375	0.049	30,000	75,000	26,534	6,634	10,614	6,816
0.375	0.065	30,000	75,000	39,796	9,949	15,918	8,597
0.500	0.020	30,000	75,000	6,522	1,630	2,609	2,304
0.500	0.028	30,000	75,000	9,459	2,365	3,784	3,172
0.500	0.035	30,000	75,000	12,209	3,052	4,884	3,906
0.500	0.049	30,000	75,000	18,284	4,571	7,313	5,304
0.500	0.065	30,000	75,000	26,351	6,588	10,541	6,786
0.500	0.083	30,000	75,000	37,275	9,319	14,910	8,307
0.625	0.020	30,000	75,000	5,128	1,282	2,051	1,859
0.625	0.028	30,000	75,000	7,381	1,845	2,953	2,568
0.625	0.035	30,000	75,000	9,459	2,365	3,784	3,172
0.625	0.049	30,000	75,000	13,947	3,487	5,579	4,335
0.625	0.065	30,000	75,000	19,697	4,924	7,879	5,591
0.625	0.083	30,000	75,000	27,124	6,781	10,850	6,910
0.625	0.095	30,000	75,000	32,759	8,190	13,103	7,734
0.625	0.109	30,000	75,000	40,172	10,043	16,069	8,639
0.750	0.028	30,000	75,000	6,052	1,513	2,421	2,156
0.750	0.035	30,000	75,000	7,721	1,930	3,088	2,669
0.750	0.049	30,000	75,000	11,273	2,818	4,509	3,664
0.750	0.065	30,000	75,000	15,726	3,931	6,290	4,749
0.750	0.083	30,000	75,000	21,318	5,330	8,527	5,905
0.750	0.095	30,000	75,000	25,446	6,362	10,179	6,637
0.750	0.109	30,000	75,000	30,733	7,683	12,293	7,453
0.750	0.120	30,000	75,000	35,294	8,824	14,118	8,064
0.875	0.020	30,000	75,000	3,593	898	1,437	1,340
0.875	0.028	30,000	75,000	5,128	1,282	2,051	1,859
0.875	0.035	30,000	75,000	6,522	1,630	2,609	2,304
0.049	30,000	75,000	9,459	2,365	3,784	3,172
0.875	0.065	30,000	75,000	13,087	3,272	5,235	4,126
0.875	0.083	30,000	75,000	17,560	4,390	7,024	5,152
0.875	0.095	30,000	75,000	20,803	5,201	8,321	5,807
0.875	0.109	30,000	75,000	24,886	6,221	9,954	6,543
0.875	0.120	30,000	75,000	28,346	7,087	11,339	7,100
1.000	0.028	30,000	75,000	4,449	1,112	1,780	1,633
1.000	0.035	30,000	75,000	5,645	1,411	2,258	2,027
1.000	0.049	30,000	75,000	8,149	2,037	3,259	2,796
1.000	0.065	30,000	75,000	11,207	2,802	4,483	3,647
1.000	0.083	30,000	75,000	14,928	3,732	5,971	4,567
1.000	0.095	30,000	75,000	17,593	4,398	7,037	5,159
1.000	0.109	30,000	75,000	20,908	5,227	8,363	5,827
1.000	0.120	30,000	75,000	23,684	5,921	9,474	6,336
1.000	0.134	30,000	75,000	27,459	6,865	10,984	6,963
1.250	0.035	30,000	75,000	4,449	1,112	1,780	1,633
1.250	0.049	30,000	75,000	6,380	1,595	2,552	2,260
