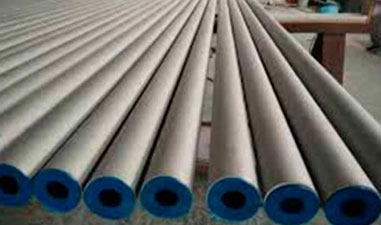

Hastelloy C276 Pipe

Hastelloy C276 Pipe

Call Now for B622 UNS N10276 Seamless / Welded Tube Price Per Kg, ISO Certified Hastelloy C276 Pipe Supplier in India, Check Dimension and Specification C276 Seamless Tube.

Nickel Alloys

On This Page

Gallery

Hastelloy C276 Pipe in Detail

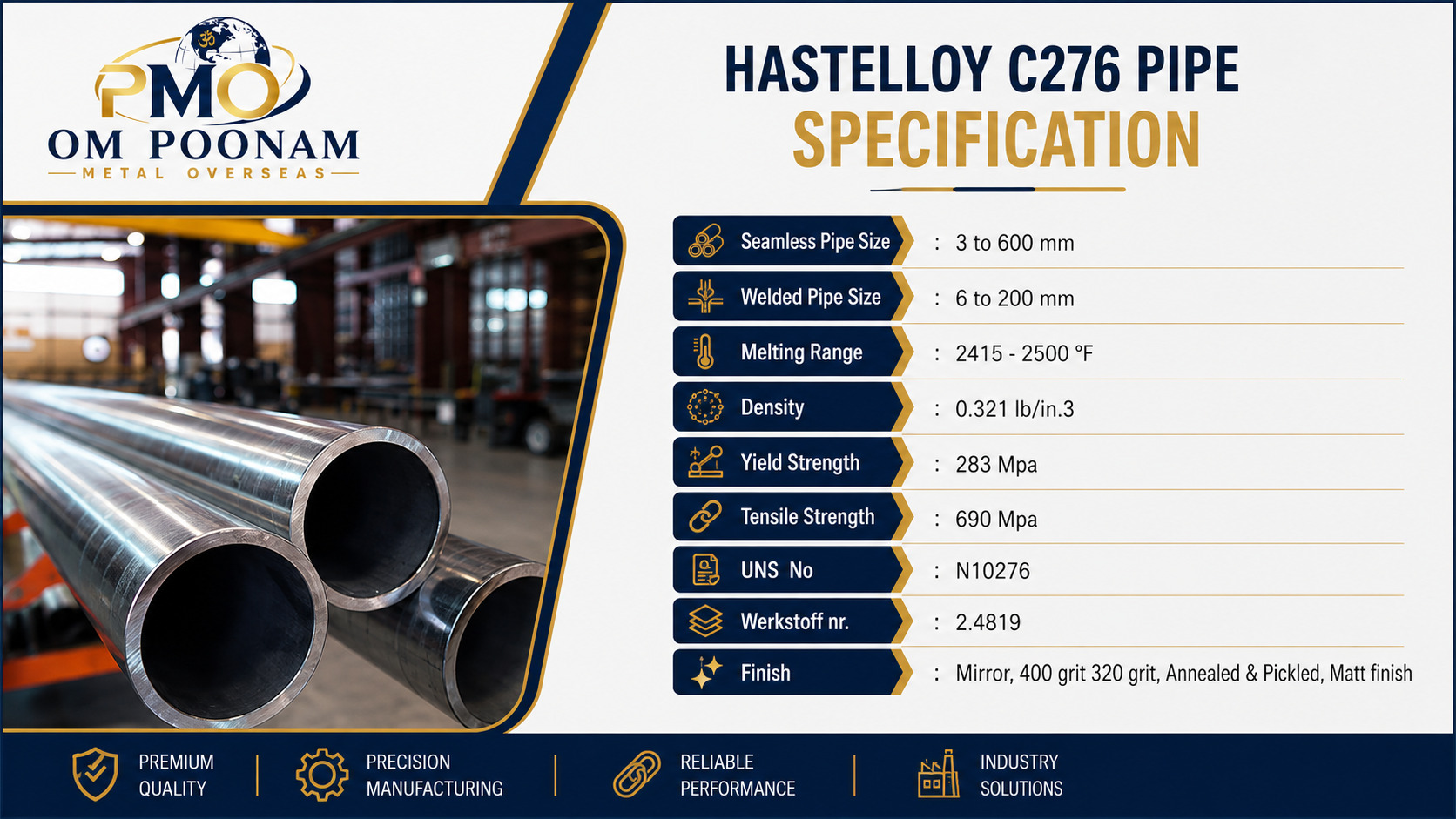

Specification

Features & Applications

Alloy C276 ERW Pipe ASTM Standard

  • ASTM B622
  • ASTM B829
  • ASTM B983

UNS N10276 Annealed Pipe Density

  • 8.89 g/cm3
  • 0.321 lb/in.3

Hastelloy Alloy C276 Clad Pipe Melting Point

  • 2415 - 2500 °F
  • 1323 - 1371 °C

Alloy C276 Exhaust Pipe Tensile Strength

  • 690 Mpa

Hastelloy C276 Seamless Tube Yield Strength

  • 283 Mpa

ASTM B622 UNS N10276 Pipe Elongation

  • 40 %

ASME B622 UNS N10276 Tube Schedule

  • Sch 5 to Sch 160

Alloy Hastelloy C276 Round Pipe UNS

  • N10276

WNR 2.4819 Cold Drawn Pipe Dimensional Standard

  • SUS
  • JIS
  • ASTM
  • EN
  • DIN
  • GB

Haynes Alloy C276 Cold Finished Pipe Equivalent standards

  • OR : ЭП760
  • Old British : NA 21
  • Euronorm : NiMo16Cr15W
  • GOST : ХН65МВУ
  • Japanese : NW 0276

Elastic Modulus

  • 205.5 Gpa

Thermal Condcuctivity

  • 19 W/m.K

Hardness

  • 100 HRB

According to

  • ASME B36.19
  • ASME B36.10

Electric Resistivity

  • 1300 nΩ.m

Co-eff of Expansion

  • 13.4 µm/m/°C

NW 0276 Rectangular Pipe Surface Finish

  • Pickled
  • Precleaned
  • Passivated
  • Cleaned

Temprature Range

  • 1323 - 1371°C

HS Code

  • 75071200

Supporting documents for DIN 2.4819 Solution Annealed Pipe

  • MTC EN 10204 3.1/3.2
  • Check List
  • Labeling verification
  • Inspection plan
  • Inspection reports
  • Origin

Annealed Temprature Range

  • 1150 to 1175°C
  • 2100 to 2150°F

Price Term

  • FOB
  • CIF
  • CFR

Testing requirements for nickel C276 Cold Finished Seamless Pipe

  • Ultrosonic test
  • 100% eddy current test
  • 100% Radiographic Test

WNR 2.4856 Round Pipe finishing treatment

  • Cold Finished
  • Hot Finished

Heat Treatment for Alloy Hastelloy C276 Cold Finished Pipe

  • +LC
  • +A
  • +SRA
  • Q+T
  • +N

EN 2.4819 Hot Finished Pipe End

  • Beveled
  • Threaded Ends
  • Square Ends
  • Plain Ends

Hastelloy C276 Seamless Pipe Services

  • Cut to Length
  • Welding
  • Machining
  • Threading
  • Beveling

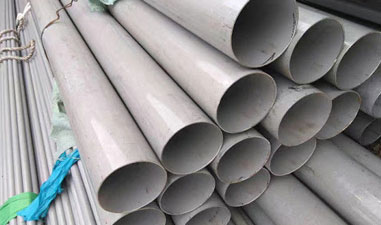

Hastelloy C276 Welded Pipe Length

  • Cut Length
  • Single
  • Double Random
  • Standard

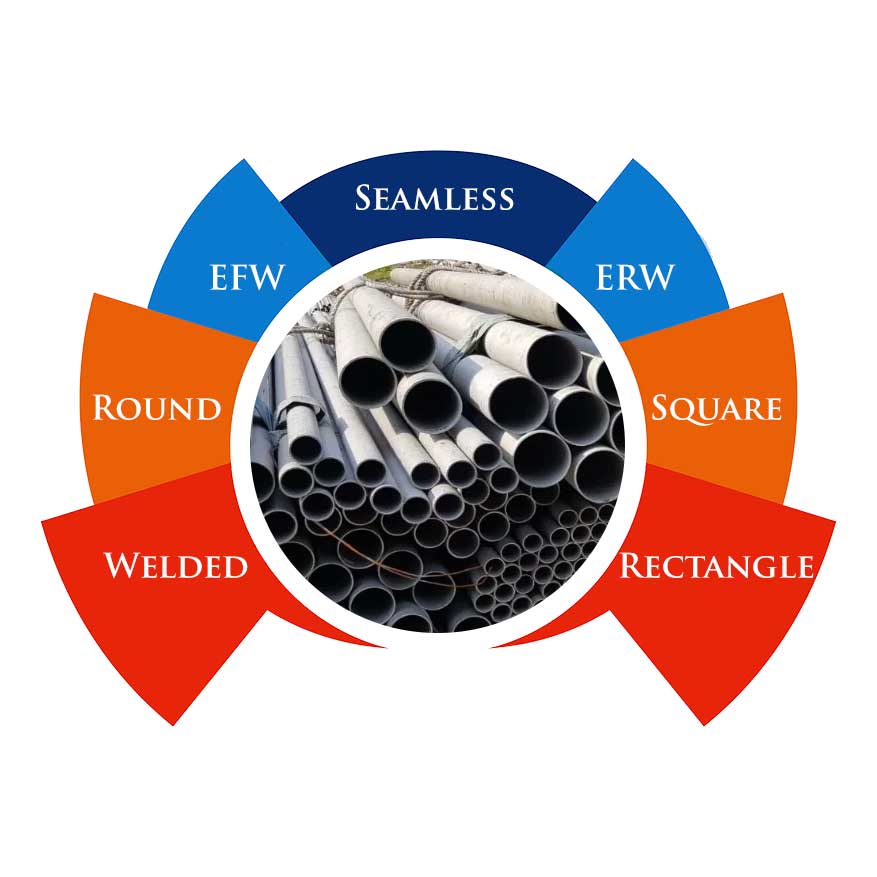

C276 Hastelloy Seam Welded Pipe Manufacturing Types

  • CEW
  • EFW
  • CDW
  • LSAW
  • Seamless
  • Welded
  • Electric Resistance Welded
  • Fabricated
  • DOM

Nickel Alloy C276 Seamless Pipe Form

  • Coiled
  • Straight
  • Hollow
  • U Shape
  • Hydraulic
  • Rectangular
  • Round
  • Square

Origin standards

  • American
  • Janpanese
  • European
  • Russia

Marking

  • Heat Number
  • Schedule or Wall Thickness
  • Manufacturer’s Name
  • Material Grade
  • Specification
  • Nominal Size
  • Method of Manufacturing

ASME SB 622 UNS N10276 Redrawn Tube Equipment

  • Sand-blasting machine
  • Bending machine
  • Pushing Machine
  • Electric bevelling machine
  • Press machine

Hastelloy C276 Tube Welding Method

  • MAG
  • GMAW
  • MIG
  • TIG
  • SMAW
  • FCAW

UNS N10276 Exhaust Tubing Testing

  • PMI Testing
  • Flattening Test
  • Pitting Resistance Test
  • Micro and MacroTest
  • Chemical Analysis
  • IGC Test
  • Hardness Test
  • Dye Penetrant
  • Mechanical Testing
  • X-Ray
  • Flaring Test
  • UT

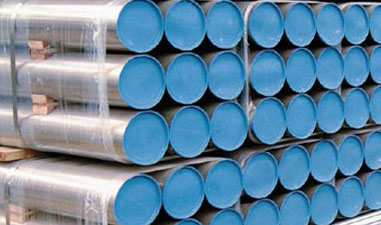

ASTM B622 UNS N10276 Welded Tube Packaging

  • PE Fabric Bundles
  • Crates
  • Wrapped in plastic
  • Bundles
  • Wooden Boxes
  • Custom

Certification of Hastelloy C276 Square Pipes

  • MTC EN 10204 3.1/3.2
  • Third Party Inspection Report
  • Form A for GSP
  • Heat Treatment Charts
  • DFARS compliant
  • Commercial Invoice
  • HS Code
  • Raw Materials Certificate

Available As

NW 0276 Hot Finished Seamless PipeC276 Hastelloy Seam Welded PipeAlloy C276 Square PipeHastelloy 2.4819 Seamless PipeHastelloy C276 Cold Drawn PipeDin 2.4819 Welded PipeNickel C276 Exhaust Pipe2.4819 Hastelloy C276 Rectangular PipeAlloy C276 Bright Annealed PipeAlloy Hastelloy C276 Solution Annealed PipeUNS 0276 Seam Welded PipeNickel Alloy C276 Annealed PipeHastelloy Alloy C276 Cold Finished Seamless PipeUNS N10276 Hot Finished PipeHaynes Alloy C276 Clad PipeWnr 2.4819 Cold Finished PipeWerkstoff Nr. 2.4819 Round Pipe

Technical Data

Full Specifications

›Dimensions & Weight

Hastelloy C276 Pipe Dimensions

Size in inchOuter Diameter in / mmSchedWall Thickness in / mm
1/413.7210S1.65
1/413.7280S3.02
3/817.1510S1.65
3/817.1580S3.20
1/221.3410S2.11
1/221.3480S3.73
3/426.6740S2.87
3/426.6780S3.91
133.4040S3.38
133.401606.352
1¼42.1610S2.77
1¼42.1680S4.85
1½48.2610S2.77
1½48.2640S3.68
260.3310S2.77
260.3380S5.54
2½73.0310S3.05
2½73.0380S7.01
388.9040S5.49
388.9016011.132
3½101.6040S5.74
4114.3010S3.05
4114.3080S8.56
5141.3040S6.55
5141.3016015.882
6168.2840S7.11
6168.2812014.27
8219.0840S8.18
8219.0816023.012

Weight Chart of Hastelloy Alloy C276 Pipe

Scroll to see all columns →

NPSOutside DiameterOutside Diameter_2Wall ThicknessWall Thickness_2SchedWeightWeight_2
NPSmillimeterinchmillimeterinchSchedLb/ftkilogram/Mtr
3.7340.14780 STD1.0881.621
1/2"210.842.7690.10940 STD0.8511.268
3.9120.15480 STD1.4742.195
3/4"271.052.870.11340 STD1.1311.684
4.5470.17980 STD2.1723.325
1"331.3153.3780.13340 STD1.6792.501
4.8510.19180 STD2.9974.464
1 1/4"421.663.5560.1440 STD2.2733.385
5.080.280 STD3.3615.409
1 1/2"481.93.6830.14540 STD2.7184.048
5.5370.21880 STD5.0227.48
2"602.3753.9120.15440 STD3.6535.441
7.010.27680 STD7.66111.411
2 1/2"732.8755.5160.20340 STD5.7938.629
7.620.380 STD10.25315.272
3"893.55.4860.21640 STD7.57611.284
8.560.33714.98322.318
4"1144.56.020.23710.7916.073
6"1686.6254.7750.18812.92419.252
5.5630.21914.98322.318
7.1120.2840 STD18.97458.263
9.5250.37525.03137.285
12.70.532.70848.719
8"2198.6254.7750.18816.9425.233
5.5630.21919.66129.286
7.0360.2773024.69636.786
9.5250.37533.04149.216
10"27310.754.7750.18821.20731.588
6.350.252028.03541.759
8.7380.34438.23156.946
11.1250.43848.23871.852
12"32412.754.7750.18825.22237.57
6.350.2533.37549.713
7.9250.31241.44561.735
10.3120.40653.52579.727
14"356144.7750.18827.73241.308
6.350.252036.71354.685
7.9250.31245.61167.939
11.1250.4384063.44194.498
18"457185.5630.21941.58861.948
7.1370.28153.17679.208
9.5250.375STD70.588105.144
12.70.5XHY93.45139.198
20"508206.350.2552.73378.547
7.9250.31265.60497.719
11.1250.43891.508136.305
15.0880.59440123.11183.378
24"610246.350.2563.41394.456
7.9250.31218.932117.573
11.1250.438110.219164.176
15.8750.625156.028232.41
30"762306.350.2579.433118.318
7.9250.3121098.925147.353
11.1250.438138.286205.983
15.8750.62530196.078292.066
42"1067427.9250.312138.911206.914
12.70.5XHY221.6133.097
48"1219489.5250.375STD190.738284.112
12.70.5XHY253.65377.822
22.2250.875440.383655.969
›Material Properties

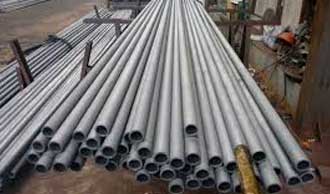

Mechanical Properties Chart of Hastelloy C276 Seamless Tube

ElementDensitycol_3Yield Strength (0.2%Offset)Elongation
Element8.89 g/cm352000 Psi 355 MPaElongation
Hastelloy C276Melting PointTensile Strength40 %
Hastelloy C2761370 °C 2500 °F115000 Psi 790 MPa40 %

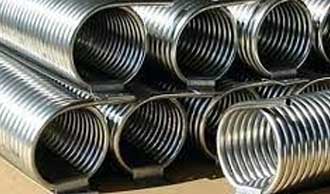

Nickel Alloy C276 Coiled Tubing Equivalent Grades

Scroll to see all columns →

STANDARDWERKSTOFF NR.North America (UNS)JapanRussiaEuropeOR
Hastelloy C2762.4819N10276NW 0276ХН65МВУNiMo16Cr15WЭП760
›Pressure Ratings

Nickel Alloy C276 Pipe Pressure Rating

Scroll to see all columns →

Pipe O.D. / (in.)Wall Thickness of Pipe (inches)Wall Thickness of Pipe (inches)_2Wall Thickness of Pipe (inches)_3Wall Thickness of Pipe (inches)_4Wall Thickness of Pipe (inches)_5Wall Thickness of Pipe (inches)_6Wall Thickness of Pipe (inches)_7Wall Thickness of Pipe (inches)_8
Pipe O.D. / (in.).028.035.049.065.083.095.109.120
Pipe O.D. / (in.)Working Pressure (psig)Working Pressure (psig)Working Pressure (psig)Working Pressure (psig)Working Pressure (psig)Working Pressure (psig)Working Pressure (psig)Working Pressure (psig)
1/8790010100
1/43700480070009500
5/16370054007300
3/8310044006100
1/2230032004400
3/42200300040004600
122002900340039004300
›Technical Data

Nickel Alloy C276 Tube Physical Property

Scroll to see all columns →

GradeElastic modulusCo-eff of Thermal Expansion (μm/m/°C)Young’s Modulus (10^3KSI)Thermal Conductivity (W/m.K)HardnessAnnealed Temp.Specific Heat (J/Kg.K)Poission's ration
GradeGPa / ksi24-93°CYoung’s Modulus (10^3KSI)Thermal Conductivity (W/m.K)Rockwell B°C / °F0-100°CPoission's ration
Hastelloy C-276205 / 2970011.229.87.2871121 / 20507270.307
›Finishes & Forms

Surface Finish Options of UNS N10276 Tube

Finish CodeFinish Code_2-SF-PL-PU
Product Contact Surface(Maximum Ra)*Sanitary20 µ-inch (0.5 µm)Mill
Non-Product Contact Surface(Maximum Ra)Mill32 µ-inch (0.8 µm)Mill
