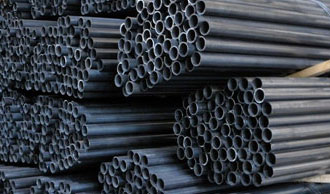

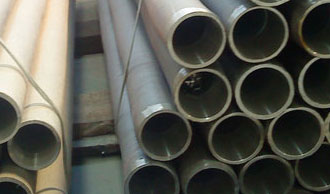

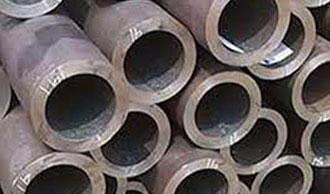

ASTM A210 Grade A1 Boiler Tube

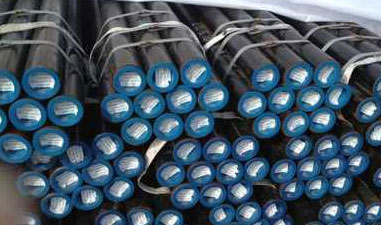

PED certified manufacturer of ASTM A210 Grade A1 Boiler Tube in India, ready Sa210 Gr A1 Seamless Pipes in all sizes, check ASME SA210 A1 Heat Exchanger Tube price list.
Carbon Steel
On This Page
ASTM A210 Grade A1 Boiler Tube Spec ChartChemical Equation of ASME SA210 A1 Heat Exchanger TubeMechanical Strength Table of A210 gr A1 TubeWall Thickness Tolerance of ASTM A210 GR.A1 Cold Finished TubesOutside Diameter Tolerance of CS ASTM A210 Grade A1 TubesASTM A210 Carbon Steel Gr A1 Superheater Tubes Cut Length ToleranceHydrostatic Test Pressures A210M Cold-Finished Seamless TubesApplication Industry For SA-210-A1 Boiler tube
Gallery
ASTM A210 Grade A1 Boiler Tube in Detail
Specification
Features & Applications
Application Industry For SA-210-A1 Boiler tube
- For operation of steam locomotives
- In small factories and industrial processes
- For home heating systems
- Chemical processing divisions
- Pulp and Paper manufacturing plants
- Refining units
Technical Data
Full Specifications
›Technical Data
ASTM A210 Grade A1 Boiler Tube Spec Chart
| col_1 | col_2 |
|---|---|
| Thickness | 1.24-60 mm |
| Out diameter | 10.3-1219.2 mm |
| Length | 5-12meter |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Material | ASTM A106-B, ASTM A53- B, A178-C, A210-C ST 52,ST 52.4,ST 45-8,ST 42,ST 42-2, Q 235,Q345 DIN 17175 |
| Common uses | Boiler Tubes, Seamless Steel Tubes, Steel Tubes, and Superheater Tubes. |
| Manufacturing method | Hot and cold finished |
| Application | 1.For low pressure liquid delivery such as water,gas and oil 2.For construction |
| Size Range | 1⁄2 in. to 16 in. [12.7 to 406.4mm] |
| Wall Thickness | 1.5mm-50mm |
Check Who Buy from Us and What
| col_1 | col_2 |
|---|---|
| ASME SA 210 GR.A1 seamless boiler tube | Singapore, Bahrain, South Africa, Singapore |
| High Pressure SA210 A1 Heat Exchanger Rifled Boiler Tube | Bangladesh, Malaysia, USA, Finland |
| tube ASTM A210 Grade A1 | Mexico, Egypt, Spain, UK |
| ASTM A210 steel pipe | Canada, Philippines, Malaysia, Singapore |
| ASME SA210 Gr A1 Superheater Tubes | Hong Kong, Oman, Malaysia, UAE |
| ASTM A210 Grade A1 Heat Exchanger Tubes | Russia, Netherlands, Malaysia, Dubai |

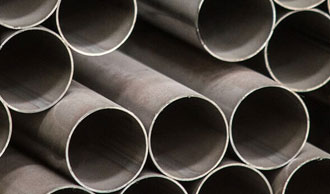

| ASME SA210 A1 Cold Drawn Seamless Tube | Philippines, Dammam -KSA, Indonesia, Belgium |
| ASTM A210 Carbon Steel Grade A1 Seamless Boiler Tubes | Norway, United Arab Emirates (UAE), Turkey, Malaysia |
| ASME SA210 Grade A1 cold drawn seamless heat exchanger tubes | Kuwait, South Africa, Saudi Arabia (KSA), Brazil |
| Grade A1 ASTM A210 Carbon Steel Coiled Tube | Malaysia, United Kingdom -UK, Europe, UAE |
| CS GR.A1 ASME SA210 Dom Tube | Thailand, Czechia, Germany, Malaysia |
| SA210 Grade A1 Seamless 2 dia x 20 Sch Seamless Boiler Tube | NY 12203 (USA), Singapore, South Korea, Malaysia |
| CS GR.A1 ASME SA210 Casing Tube | Romania, Europe, Japan, Malaysia |
| ASTM A210 Carbon Steel GR.A1 Boiler Tubes | Los Alamos -Mexico, Malaysia, Taiwan, Philippines |
| ASTM A210 Carbon Steel Grade A1 Reheater Tube | UK, Philippines, Australia, Nigeria |
| Thin Wall SA210 Grade A1 Cold Drawn Seamless Tube | Malaysia, Sweden, Colombia, China |
| SA 210 gr a1 material | Poland, UK, Canada, Ellington -United States |
| ASME SA210 Gr A1 Finned Boiler Tubes | Europe, Qatar, France, Thailand |
| Black ASTM A210 Carbon Steel Grade A1 CDW Tube | Iran, Chile, Italy, Singapore |
›Material Properties
Chemical Equation of ASME SA210 A1 Heat Exchanger Tube
| Grade | C (Max) | Mn | Si (Min) | P (Max) | S (Max) |
|---|---|---|---|---|---|
| A1 | 0.27 | Max 0.93 | 0.10 | 0.035 | 0.035 |
Mechanical Strength Table of A210 gr A1 Tube
| col_1 | col_2 | col_3 | col_4 | col_5 |
|---|---|---|---|---|
| Grade | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | Hardness (HRB) |
| A1 | ≥415 | ≥255 | ≥30 | ≤79 |
›Tolerances
Wall Thickness Tolerance of ASTM A210 GR.A1 Cold Finished Tubes
| OD In. (mm) | Wall thickness Tolerance % | Wall thickness Tolerance %_2 |
|---|---|---|
| OD In. (mm) | Over (+) | Under (-) |
| 1 ½ (38.1) and under | 20 | 0 |
| Over 1½ (38.1) | 22 | 0 |
Outside Diameter Tolerance of CS ASTM A210 Grade A1 Tubes
| OD In. (mm) | Permissible Variations In. (mm) | Permissible Variations In. (mm)_2 |
|---|---|---|
| OD In. (mm) | Over (+) | Under (-) |
| Under 1 (25.4) | 0.004 (0.10) | 0.004 (0.10) |
| 1 to 1 ½ (25.4 to 38.1), Incl | 0.006 (0.15) | 0.006 (0.15) |
| Over 11⁄2 to 2 (38.1 to 50.8), Excl | 0.008 (0.20) | 0.008 (0.20) |
| 2 to 21⁄2 (50.8 to 63.5), Excl | 0.010 (0.25) | 0.010 (0.25) |
| 21⁄2 to 3 (63.5 to 76.2), Excl | 0.012 (0.30) | 0.012 (0.30) |
ASTM A210 Carbon Steel Gr A1 Superheater Tubes Cut Length Tolerance
| Outside Diameter,In.(mm) | Cut Length, in.(mm) | Cut Length, in.(mm)_2 |
|---|---|---|
| Outside Diameter,In.(mm) | Over (+) | Under (-) |
| All Sizes | 3⁄16 [5] | 0 [0] |
| Under 2 (50.8) | 1⁄8 [3] | 0 [0] |
| 2 (50.8) and over | 3⁄16 [5] | 0 [0] |
| Under 2 (50.8) | 1⁄8 [3] | 0 [0] |
| 2 (50.8) and over | 3⁄16 [5] | 0 [0] |
›Finishes & Forms
Hydrostatic Test Pressures A210M Cold-Finished Seamless Tubes
| OD of Tube, in. [mm] | Hydrostatic Test Pressure, psi [MPa] |
|---|---|
| Under 1 [25.4] | 1000 [7] |
| 1 to 11⁄2 [25.4 to 38.1], excl | 1500 [10] |
| 11⁄2 to 2 [38.1 to 50.8], excl | 2000 [14] |
| 2 to 3 [50.8 to 76.2], excl | 2500 [17] |
