ASTM A213 T9 Tube in Detail

Technical Data

Full Specifications

›Technical Data

ASTM A213 T9 Tube Spec Chart

col_1	col_2
Specifications	ASTM A213 / ASME SA213
Dimensions	ASTM, ASME and API
Length	Double Random, Single Random, & Cut Length.
Outer Diameter	6-2500mm; WT:1-200mm
Schedule	SCH30, SCH40, CH20, STD, SCH80, XS, SCH140, SCH60, SCH80, SCH120, SCH160, XXS
Tubes Size /	1 / 2” OD up to 5” OD, customs diameters also available
Type	EFW / Seamless / Fabricated
Export to	Oman, Dubai, Korea, Iran, Canada, India, Ukraine, Thailand, Egypt, Ireland, Saudi Arabia, Spain, USA,Brazil, Singapore, Indonesia, Peru, etc
Form	Square, Rectangular, Round, Hydraulic Etc
End	Beveled End, Plain End, Treaded

Equivalent of A213 T9 Material

col_1	col_2	col_3
STANDARD	WERKSTOFF NR.	UNS
A213 T9	1.7386	S50400

Size Chart of T9 Boiler Tube

Scroll to see all columns →

NB	Size	OD	40S	5S	10S	S10	S20	S40	S60	XS/80S	S80	S100	S120	S140	S160	XXS
NB	Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
	1/8”	10.29			1.2			1.73			2.41
	1/4”	13.72			1.7			2.24			3.02
	3/8”	17.15			1.7			2.31			3.2
15	1/2”	21.34	2.8	1.7	2.1			2.77		3.73	3.73				4.78	7.47
20	3/4”	26.67	2.9	1.7	2.1			2.87		3.91	3.91				5.56	7.82
25	1”	33.4	3.4	1.7	2.8			3.38		4.55	4.55				6.35	9.09
32	1 1/4”	42.16	3.6	1.7	2.8			3.56		4.85	4.85				6.35	9.7
40	1 1/2”	48.26	3.7	1.7	2.8			3.68		5.08	5.08				7.14	10.2
50	2”	60.33	3.9	1.7	2.8			3.91		5.54	5.54				9.74	11.1
65	2 1/2”	73.03	5.2	2.1	3.1			5.16		7.01	7.01				9.53	14
80	3”	88.9	5.5	2.1	3.1			5.49		7.62	7.62				11.1	15.2
90	3 1/2”	101.6	5.7	2.1	3.1			5.74		8.08	8.08
100	4”	114.3	6	2.1	3.1			6.02		8.56	8.56		11.1		13.5	17.1
125	5”	141.3	6.6	2.8	3.4			6.55		9.53	9.53		12.7		15.9	19.1
150	6”	168.3	7.1	2.8	3.4			7.11		10.97	11		14.3		18.3	22
200	8”	219.1	8.2	2.8	3.8		6.4	8.18	10.3	12.7	12.7	15.1	19.3	20.6	23	22.2
250	10”	273.1	9.3	3.4	4.2		6.4	9.27	12.7	12.7	15.1	19.3	21.4	25.4	28.6	25.4
300	12”	323.9	9.5	4	4.6		6.4	10.3	14.3	12.7	17.5	21.4	25.4	28.6	33.3	25.4
350	14”	355.6	9.5	4	4.8	6.4	7.9	11.1	15.1	12.7	19.1	23.8	27.8	31.8	35.7
400	16”	406.4	9.5	4.2	4.8	6.4	7.9	12.7	16.7	12.7	21.4	26.2	31	36.5	40.5
450	18”	457.2	9.5	4.2	4.8	6.4	7.9	14.3	19.1	12.7	23.8	29.4	34.9	39.7	45.2
500	20”	508	9.5	4.8	5.5	6.4	9.5	15.1	20.6	12.7	26.2	32.5	38.1	44.5	50
550	22”	558.8	9.5	4.8	5.5	6.4	9.5		22.2	12.7	28.6	34.9	41.3	47.6	54
600	24”	609.6	9.5	5.5	6.4	6.4	9.5	17.5	24.6	12.7	31	38.9	46	52.4	59.5
650	26”	660.4	9.5			7.9	13			12.7
700	28”	711.2	9.5			7.9	13			12.7
750	30”	762	9.5	6.4	7.9	7.9	13			12.7
800	32”	812.8	9.5			7.9	13	17.5		12.7
850	34”	863.6	9.5			7.9	13	17.5		12.7
900	36”	914.4	9.5			7.9	13	19.1		12.7

Best Material supplied in Below Places

col_1	col_2
2.5inch ASTM A213 T9 Tube	Bahrain, Malaysia, Singapore, South Korea
hot rolled ASTM A213 gr T9 alloy steel boiler tube	Oman, Thailand, Hong Kong, France
1/8"~40" Round T9 Alloy Steel Pipe	UK, Brazil, Spain, Saudi Arabia (KSA)
ASTM A213 T9 Boiler Seamless Round Tube	South Africa, Philippines, Kuwait, Taiwan
T9 Seamless Cold Drawn Steel Tube	Malaysia, Malaysia, Turkey, Germany

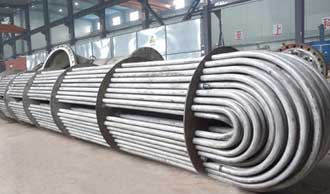

Alloy Steel T9 Tube Cold Drawn for Heat-exchanger	Czechia, Malaysia, Thailand, Japan
High pressure and temperature seamless ASME SA213 T9 alloy tube	Philippines, Belgium, UK, Indonesia
T9 Alloy seamless steel Tube 89*5.9mm	Ellington -United States, Nigeria, Canada, Australia
seamless steel t9 alloy tube	Singapore, United Kingdom -UK, NY 12203 (USA), Malaysia
A213-T9 Seamless Heat Resistant Tube	Sweden, Netherlands, Malaysia, Russia
T9 heat exchanger steel tube ASME SA-213/SA-213M	Malaysia, China, Bangladesh, Colombia
ASTM A213 T9 Bolier Seamless Rifled Steel Tubes for Power Generation	Dubai, Finland, Malaysia, USA
Round asme sa213 t9 alloy structure seamless boiler tube	Qatar, Singapore, Europe, Malaysia
60.33mm diameter Alloy steel t9 tube	Singapore, UAE, Italy, Malaysia
ASTM A213 T9 Steam Tube Boiler	Philippines, Chile, Canada, Iran
76.2mm x 6.35mm T9 A213 SMLS Tube	Dammam -KSA, UK, Philippines, Poland
ASTM 213 T9,Super-heater, Heat-Exchanger Tubes	Europe, United Arab Emirates (UAE), Romania, Norway
SA213 T9 Seamless Steel Tube For Boiler Superheater	Malaysia, Egypt, Los Alamos -Mexico, Mexico
ASME SA 213 Gr T9 Seamless Tubing	UAE, Singapore, Europe, South Africa

›Material Properties

Chemical Equation of SA213 T9 Heat Exchanger Tubing

Scroll to see all columns →

C, %	Mn, %	P, %	S, %	Si, %	Cr, %	Mo, %
0.15 max	0.30-0.60	0.025 max	0.025 max	0.25-1.00	8.0-10.0	0.90-1.10

Mechanical Strength of Alloy Steel T9 Welded Tubing

col_1	col_2	col_3	col_4
Tensile Strength , MPa	Yield Strength, MPa	Elongation, %	Hardness, HB
415 min	205 min	30 min	179 max

›Dimensions & Weight

Weight Chart of SA213 T9 Boiler Tube

Scroll to see all columns →

Size NPS	Pipe O.D.	Wall Thickness	Pipe I.D.	Weight per Foot	Standard to XXHY	Schedule / Pipe #	Section Modulus	Gallon Capacity Per Linear Foot
1/2	0.84	0.109	0.622	0.85	STD	40	.0407	.0158
		0.147	0.546	1.09	XHY	80	.0478	.0122
		0.188	0.464	1.31		160	.0528	.0088
		0.294	0.252	1.72	XXHY		.0577	.0026
3/4	1.05	0.113	0.824	1.13	STD	40	.0705	.0277
		0.154	0.742	1.48	XHY	80	.0853	.0225
		0.219	0.612	1.95		160	.1006	.0153
		0.308	0.434	2.44	XXHY		.1103	.0077
1	1.315	0.133	1.049	1.68	STD	40	.1328	.0449
		0.179	0.957	2.17	XHY	80	.1606	.0374
		0.250	0.815	2.85		160	.1904	.0271
		0.358	0.599	3.66	XXHY		.2136	.0146
1 1/4	1.66	0.140	1.380	2.27	STD	40	.2346	.0777
		0.191	1.278	3.00	XHY	80	.2913	.0666
		0.250	1.160	3.77		160	.3421	.0549
		0.382	0.896	5.22			.4110	.0328
1 1/2	1.90	0.145	1.610	2.72	STD	40	.3262	.1058
		0.200	1.500	3.63	XHY	80	.4118	.0918
		0.281	1.338	4.86		160	.5079	.0730
		0.400	1.100	6.41			.5977	.0494
2	2.375	0.109	2.157	2.64		10	.4205	.1898
		0.154	2.067	3.66	STD	40	.5606	.1743
		0.218	1.939	5.03	XHY	80	.7309	.1534
		0.250	1.875	5.68			.8045	.1434
		0.281	1.813	6.29			.8666	.1344
		0.344	1.687	7.47		160	.9806	.1161
		0.436	1.503	9.04	XXHY		1.1043	.0922
2 1/2	2.875	0.120	2.635	3.53		10	.6870	.2833
		0.203	2.469	5.80	STD.	40	1.0640	.2487
		0.216	2.443	6.14			1.1169	.2435
		0.250	2.375	7.02			1.2468	.2301
		0.276	2.323	7.67	XHY	80	1.3386	.2202
		0.375	2.125	10.02		160	1.6371	.1842
		0.552	1.771	13.71	XXXHY		1.9971	.1280
3	3.50	0.120	3.260	4.34			1.0411	.4336
		0.156	3.188	5.58			1.3122	.4147
		0.172	3.156	6.12			1.4265	.4064
		0.188	3.124	6.66			1.5342	.3984
		0.216	3.068	7.58	STD.	40	1.7241	.3840
		0.250	3.000	8.69			1.9372	.3672
		0.281	2.938	9.67			2.1207	.3521
		0.300	2.900	10.26	XHY	80	2.2253	.3431
		0.438	2.624	14.34		160	2.8774	.2811
		0.600	2.300	18.6	XXHY		3.4243	.2158
3 1/2	4.0	0.120	3.760	4.98		10	1.3776	.5768
		0.226	3.548	9.12	STD.	140	2.3939	.5136
		0.250	3.500	10.02			2.6001	.4998
		0.281	3.438	11.17			2.8562	.4821
		0.318	3.364	12.52	XHY	80	3.1400	.4617
		0.636	2..728	22.87	XXHY		4.8795	.3085
4	4.5	0.120	4.260	5.62		10	1.7612	.7404
		0.156	4.188	7.24			2.2354	.7156
		0.188	4.124	8.67			2.6296	.6942
		0.203	4.094	9.32			2.8173	.6838
		0.219	4.062	10.02			3.0184	.6725
		0.237	4.026	10.80	STD.	40	3.2145	.6613
		0.250	4.000	11.36			3.3611	.6528
		0.281	3.938	12.67		60	3.7021	.6326
		0.312	3.876	13.97			4.0273	.6126
		0.337	3.826	15.00	XHY	80	4.2713	.5972
		0.438	3.624	19.02		120	5.1790	.5361
		0.531	3.438	22.53		160	5.8997	.4822
		0.674	3.152	27.57	XXHY		6.7927	.4054
5	5.563	0.188	5.187	10.80			4.1161	1.0979
		0.219	5.125	12.51			4.7279	1.0716
		0.258	5.047	14.63	STD.	40	5.4500	1.0391
		0.281	5.001	15.87			5.8644	1.0204
		0.312	4.939	17.51			6.4074	.99647
		0.344	4.875	19.19			6.9358	.9696
		0.375	4.813	20.80	XHY	80	7.4300	.9449
		0.500	4.563	27.06		120	9.2534	.8495
		0.625	4.313	32.99		160	10.7976	.7590
		0.750	4.063	38.59	XXHY		12.0954	.6734
6	6.625	0.109	6.407	7.59		5	3.5769	1.6748
		0.134	6.357	9.30		10	4.3475	1.6488
		0.156	6.313	10.79			5.0107	1.6260
		0.188	6.249	12.94			5.9351	1.5937
		0.203	6.219	13.94			6.3804	1.5780
		0.219	6.187	15.00			6.8261	1.5620
		0.250	6.125	17.04			7.6905	1.5306
		0.280	6.065	18.99	STD.	40	8.4958	1.5008
		0.312	6.001	21.06			9.3416	1.4688
		0.344	5.937	23.10			10.111	1.4391
		0.375	5.875	25.05			10.893	1.4082
		0.432	5.761	28.60	XHY	80	12.224	1.3541
		0.500	5.625	32.74			13.711	1.2909
		0.562	5.501	36.43		120	14.9806	1.2346
		0.625	5.375	40.09			16.1821	1.1787
		0.719	5.187	45.39		160	17.8243	1.0977
		0.864	4.897	53.21	XXHY		20.025	.9784
		1.000	4.625	60.13			21.7719	.8727
		1.125	4.375	66.14			23.1237	.7809

›Tolerances

Outside Diameter Tolerance of Alloy Steel T9 Seamless Tubing

col_1	col_2	col_3
Hot rolled	Outside Diameter, mm	Tolerance, mm
Hot rolled	OD≤101.6	+0.4/-0.8
Hot rolled	101.6＜OD≤190.5	+0.4/-1.2
Hot rolled	190.5＜OD≤228.6	+0.4/-1.6
Cold Drawn	Outside Diameter, mm	Tolerance, mm
Cold Drawn	OD＜25.4	±0.10
Cold Drawn	25.4≤OD≤38.1	±0.15
Cold Drawn	38.1＜OD＜50.8	±0.20
Cold Drawn	50.8≤OD＜63.5	±0.25
Cold Drawn	63.5≤OD＜76.2	±0.30
Cold Drawn	76.2≤OD≤101.6	±0.38
Cold Drawn	101.6＜OD≤190.5	+0.38/-0.64
Cold Drawn	190.5＜OD≤228.6	+0.38/-1.14

A213 T9 Tube Wall Thickness Tolerance

col_1	col_2	col_3
Hot rolled	Outside Diameter, mm	Tolerance, %
Hot rolled	OD≤101.6, WT≤2.4	+40/-0
Hot rolled	OD≤101.6, 2.4＜WT≤3.8	+35/-0
Hot rolled	OD≤101.6, 3.8＜WT≤4.6	+33/-0
Hot rolled	OD≤101.6, WT>4.6	+28/-0
Hot rolled	OD>101.6, 2.4＜WT≤3.8	+35/-0
Hot rolled	OD>101.6, 3.8＜WT≤4.6	+33/-0
Hot rolled	OD>101.6, WT>4.6	+28/-0
Cold Drawn	Outside Diameter, mm	Tolerance, %
Cold Drawn	OD≤38.1	+20/-0
Cold Drawn	OD>38.1	+22/-0
