ASME B16.5 Weld Neck Flange
Buy ASME B16.5 Weld Neck Flange at best price in India, Manufacturer of Stainless Steel Flat Face Weld Neck Flange & Carbon Steel WNRF Flanges in India, Check Class 150/ 300 LWNRF Flange Dimensions.
Types of Flanges
On This Page
Specification Format of ASME B16.5 Weld Neck FlangeAnsi 150 Weld Neck Flange DimensionsWeld Neck Flange Class 300 DimensionsClass 400 Weld Neck Flange Dimensions600# Weld Neck Flange Dimensions900# Weld Neck Flange DimensionsClass 1500 Weld Neck Flange DimensionsDimensional Tolerance Raised Face Weld Neck FlangeAvailable Material of High Pressure Weld Neck FlangeASME B16.5 Weld Neck Flange Schedule ChartFeatures of WNRF FlangeRaised Face Weld Neck Flange Applications
Gallery

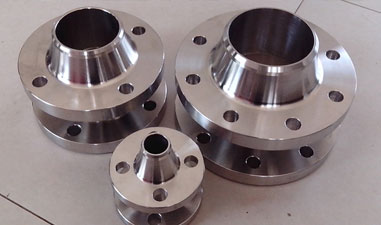

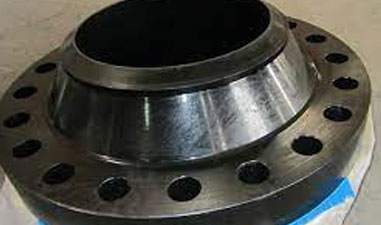

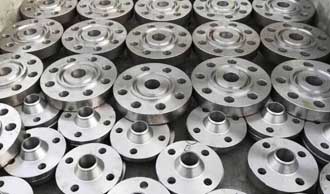

ASME B16.5 Weld Neck Flange in Detail
Specification
Features & Applications
Features of WNRF Flange
- High-pressure And High/low Temperatures
- Unrestricted Flow Of The Fluid Conveyed By The Piping System
- Absence Of Pressure Drops Prevents Negative Effects As Turbulence And Erosion/corrosion
- Tapered Hub Allows A Smooth Distribution Of The Mechanical Stress
Raised Face Weld Neck Flange Applications
- Medical
- Mining
- Petroleum Refining
- Pharmaceutical Processing
- Power Generation—nuclear
- Pulp and Paper
Technical Data
Full Specifications
›Finishes & Forms
Specification Format of ASME B16.5 Weld Neck Flange
| col_1 | col_2 |
|---|---|
| Size | 1/2" (15 NB) to 48" (1200NB) |
| Pressure Ratings | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Pressure class | 150#, 300#, 600#, 1500# |
| Standards | ANSI B16.47 Series A & B, ANSI B16.5, MSS SP44, ASA, API-605, AWWA, Custom Drawings. |
| Dimensions and Pressure Ratings | Table D, E, F, & H, ANSI, BS4504, MSS- SP-44, BS3293, PN6, 10, 16, 25, 64 BS10, DIN Standards |
| Test | Hydrostatic testing machine, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, Magnetic particle detector |
| Flange Face Type Manufacturer | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Export to | Saudi Arabia, Egypt, Ireland, Iran, Ukraine, USA, Spain, Dubai, Singapore, Canada, India, Brazil, Indonesia, Korea, Oman, Thailand, Peru, etc |
| Coating/Surface Treatment | Oil Black Paint, Yellow Transparent, Anti-rust Paint, Zinc Plated, Cold and Hot Dip Galvanized. |
›Dimensions & Weight

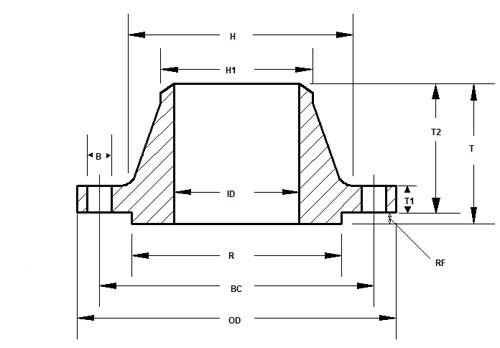

Ansi 150 Weld Neck Flange Dimensions
Scroll to see all columns →
| Flange NPS | Inside Diameter (ID) | FF | Bolts Circle | RF | Outside | H | RF_2 | H1 | T1 | RF_3 | Bolts Hole | Number of |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8" | 7.98" | 3.94" | 11.75" | 10.62" | 13.50" | 9.69" | 4.00" | 8.63" | 1.06" | .063" | .88" | 8 |
| 22" | 21.25" | 5.82" | 27.25" | 25.25" | 29.50" | 24.25" | 5.88" | 22.00" | 1.75" | .063" | 1.38" | 20 |
| 14" | 13.25" | 4.94" | 18.75" | 16.25" | 21.00" | 15.75" | 5.00" | 14.00" | 1.32" | .063" | 1.12" | 12 |
| 3-1/2" | 3.55" | 2.75" | 7.00" | 5.50" | 8.50" | 4.81" | 2.81" | 4.00" | .88" | .063" | .75" | 8 |
| 24" | 23.25" | 5.94" | 29.50" | 27.25" | 32.00" | 26.12" | 6.00" | 24.00" | 1.82" | .063" | 1.38" | 20 |
| 1" | 1.05" | 2.13" | 3.12" | 2.00" | 4.25" | 1.94" | 2.19" | 1.32" | .50" | .063" | .62" | 4 |
| 4" | 4.03" | 2.94" | 7.50" | 6.19" | 9.00" | 5.31" | 3.00" | 4.50" | .88" | .063" | .75" | 8 |
| 6" | 6.07" | 3.44" | 9.50" | 8.50" | 11.00" | 7.56" | 3.50" | 6.63" | .94" | .063" | .88" | 8 |
| 2-1/2" | 2.47" | 2.69" | 5.50" | 4.12" | 7.00" | 3.56" | 2.75" | 2.88" | .82" | .063" | .75" | 4 |
| 10" | 10.02" | 3.94" | 14.25" | 12.75" | 16.00" | 12.00" | 4.00" | 10.75" | 1.13" | .063" | 1.00" | 12 |
| 1-1/4" | 1.38" | 2.19" | 3.50" | 2.50" | 4.62" | 2.31" | 2.25" | 1.66" | .56" | .063" | .62" | 4 |
| 12" | 12.00" | 4.44" | 17.00" | 15.00" | 19.00" | 14.38" | 4.50" | 12.75" | 1.19" | .063" | 1.00" | 12 |
| 3/4" | 0.82" | 2.00" | 2.75" | 1.69" | 3.88" | 1.50" | 2.06" | 1.05" | .44" | .063" | .62" | 4 |
| 2" | 2.07" | 2.44" | 4.75" | 3.62" | 6.00" | 3.06" | 2.50" | 2.38" | .69" | .063" | .75" | 4 |
| 5" | 5.05" | 3.44" | 8.50" | 7.31" | 10.00" | 6.44" | 3.50" | 5.56" | .88" | .063" | .88" | 8 |
| 18" | 17.25" | 5.44" | 22.75" | 21.00" | 25.00" | 19.88" | 5.50" | 18.00" | 1.50" | .063" | 1.25" | 16 |
| 1-1/2" | 1.61" | 2.38" | 3.88" | 2.88" | 5.00" | 2.56" | 2.44" | 1.90" | .62" | .063" | .62" | 4 |
| 1/2" | 0.62" | 1.82" | 2.38" | 1.38" | 3.50" | 1.19" | 1.88" | 0.84" | .38" | .063" | .62" | 4 |
| 3" | 3.07" | 2.69" | 6.00" | 5.00" | 7.50" | 4.25" | 2.75" | 3.50" | .88" | .063" | .75" | 4 |
| 20" | 19.25" | 5.63" | 25.00" | 23.00" | 27.50" | 22.00" | 5.69" | 20.00" | 1.63" | .063" | 1.25" | 20 |
| 16" | 15.25" | 4.94" | 21.25" | 18.50" | 23.50" | 18.00" | 5.00" | 16.00" | 1.38" | .063" | 1.12" | 16 |
Weld Neck Flange Class 300 Dimensions
Scroll to see all columns →
| Flange NPS | Inside Diameter (ID) | RF | H | Outside | RF_2 | H1 | RF_3 | Bolts Circle | FF | Bolts Hole | T1 | Number of |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12" | 12.00" | 15.00" | 14.75" | 20.50" | .063" | 12.75" | 5.12" | 17.75" | 5.06" | 1.25" | 1.94" | 16 |
| 3" | 3.07" | 5.00" | 4.62" | 8.25" | .063" | 3.50" | 3.12" | 6.62" | 3.06" | 0.88" | 1.06" | 8 |
| 1-1/4" | 1.38" | 2.50" | 2.50" | 5.25" | .063" | 1.66" | 2.56" | 3.88" | 2.50" | 0.75" | .69" | 4 |
| 1" | 1.05" | 2.00" | 2.12" | 4.88" | .063" | 1.32" | 2.44" | 3.50" | 2.38" | 0.75" | .63" | 4 |
| 5" | 5.05" | 7.31" | 7.00" | 11.00" | .063" | 5.56" | 3.88" | 9.25" | 3.82" | 0.88" | 1.32" | 8 |
| 2-1/2" | 2.47" | 4.12" | 3.94" | 7.50" | .063" | 2.88" | 3.00" | 5.88" | 2.94" | 0.88" | .94" | 8 |
| 3-1/2" | 3.55" | 5.50" | 5.25" | 9.00" | .063" | 4.00" | 3.19" | 7.25" | 3.13" | 0.88" | 1.13" | 8 |
| 2" | 2.07" | 3.62" | 3.31" | 6.50" | .063" | 2.38" | 2.75" | 5.00" | 2.69" | 0.75" | .82" | 8 |
| 6" | 6.07" | 8.50" | 8.12" | 12.50" | .063" | 6.63" | 3.88" | 10.62" | 3.82" | 0.88" | 1.38" | 12 |
| 20" | 19.25" | 23.00" | 23.12" | 30.50" | .063" | 20.00" | 6.38" | 27.00" | 6.32" | 1.38" | 2.44" | 24 |
| 24" | 23.25" | 27.25" | 27.62" | 36.00" | .063" | 24.00" | 6.62" | 32.0" | 6.56" | 1.62" | 2.69" | 24 |
| 8" | 7.98" | 10.62" | 10.25" | 15.00" | .063" | 8.63" | 4.38" | 13.00" | 4.32" | 1.00" | 1.56" | 12 |
| 1/2" | 0.62" | 1.38" | 1.50" | 3.75" | .063" | 0.84" | 2.06" | 2.62" | 2.00" | 0.62" | .50" | 4 |
| 14" | 13.25" | 16.25" | 16.75" | 23.00" | .063" | 14.00" | 5.62" | 20.25" | 5.56" | 1.25" | 2.06" | 20 |
| 16" | 15.25" | 18.50" | 19.00" | 25.50" | .063" | 16.00" | 5.75" | 22.50" | 5.69" | 1.38" | 2.19" | 20 |
| 18" | 17.25" | 21.00" | 21.00" | 28.00" | .063" | 18.00" | 6.25" | 24.75" | 6.19" | 1.38" | 2.32" | 24 |
| 4" | 4.03" | 6.19" | 5.75" | 10.00" | .063" | 4.50" | 3.38" | 7.88" | 3.32" | 0.88" | 1.19" | 8 |
| 10" | 10.02" | 12.75" | 12.62" | 17.50" | .063" | 10.75" | 4.62" | 15.25" | 4.56" | 1.12" | 1.82" | 16 |
| 22" | 21.25" | 25.25" | 25.25" | 33.00" | .063" | 22.00" | 6.50" | 29.25" | 6.44" | 1.62" | 2.57" | 24 |
| 3/4" | 0.82" | 1.69" | 1.88" | 4.62" | .063" | 1.05" | 2.25" | 3.25" | 2.19" | 0.75" | .56" | 4 |
| 1-1/2" | 1.61" | 2.88" | 2.75" | 6.12" | .063" | 1.90" | 2.69" | 4.50" | 2.63" | 0.88" | .75" | 4 |
Class 400 Weld Neck Flange Dimensions
Scroll to see all columns →
| Flange NPS | Inside Diameter | Flat Face Thickness (T2) | Outside Diameter | Raised Face | H | Bolt Circle | Raised Face_2 | Raised Face Thickness (T) | T1 | H1 | Bolt Hole | Number of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4" | .74" | 2.25" | 4.62" | .250" | 1.88" | 3.25" | 1.69" | 2.50" | 0.62" | 1.05" | 0.75" | 4 |
| 1-1/4" | 1.28" | 2.62" | 5.25" | .250" | 2.50" | 3.88" | 2.50" | 2.87" | 0.81" | 1.66" | 0.75" | 4 |
| 8" | 7.63" | 4.62" | 15.00" | .250" | 10.25" | 13.00" | 10.62" | 4.87" | 1.88" | 8.63" | 1.12" | 12 |
| 10" | 9.75" | 4.88" | 17.50" | .250" | 12.62" | 15.25" | 12.75" | 5.13" | 2.12" | 10.75" | 1.25" | 16 |
| 3" | 2.90" | 3.25" | 8.25" | .250" | 4.62" | 6.62" | 5.00" | 3.50" | 1.25" | 3.50" | 0.88" | 8 |
| 2" | 1.94" | 2.88" | 6.50" | .250" | 3.31" | 5.00" | 3.62" | 3.13" | 1.00" | 2.38" | 0.75" | 8 |
| 16" | 15.00" | 6.00" | 25.50" | .250" | 19.00" | 22.50" | 18.50" | 6.25" | 2.50" | 16.00" | 1.50" | 20 |
| 2-1/2" | 2.32" | 3.12" | 7.50" | .250" | 3.94" | 5.88" | 4.12" | 3.37" | 1.12" | 2.88" | 0.88" | 8 |
| 3-1/2" | 3.36" | 3.38" | 9.00" | .250" | 5.25" | 7.25" | 5.50" | 3.63" | 1.38" | 4.00" | 1.00" | 8 |
| 20" | 19.00" | 6.62" | 30.50" | .250" | 23.12" | 27.00" | 23.00" | 6.87" | 2.75" | 20.00" | 1.62" | 24 |
| 14" | 13.00" | 5.88" | 23.00" | .250" | 16.75" | 20.25" | 16.25" | 6.13" | 2.38" | 14.00" | 1.38" | 20 |
| 1/2" | .55" | 2.06" | 3.75" | .250" | 1.50" | 2.62" | 1.38" | 2.31" | 0.56" | 0.84" | 0.62" | 4 |
| 6" | 5.76" | 4.06" | 12.50" | .250" | 8.12" | 10.62" | 8.50" | 4.31" | 1.62" | 6.63" | 1.00" | 12 |
| 5" | 4.81" | 4.00" | 11.00" | .250" | 7.00" | 9.25" | 7.31" | 4.25" | 1.50" | 5.56" | 1.00" | 8 |
| 1-1/2" | 1.50" | 2.75" | 6.12" | .250" | 2.75" | 4.50" | 2.88" | 3.00" | 0.88" | 1.90" | 0.88" | 4 |
| 1" | .96" | 2.44" | 4.88" | .250" | 2.12" | 3.50" | 2.00" | 2.69" | 0.69" | 1.32" | 0.75" | 4 |
| 4" | 3.83" | 3.50" | 10.00" | .250" | 5.75" | 7.88" | 6.19" | 3.75" | 1.38" | 4.50" | 1.00" | 8 |
| 18" | 17.00" | 6.50" | 28.00" | .250" | 21.00" | 24.75" | 21.00" | 6.75" | 2.62" | 18.00" | 1.50" | 24 |
| 24" | 23.00" | 6.88" | 36.00" | .250" | 27.62" | 32.00" | 27.25" | 7.13" | 3.00" | 24.00" | 1.88" | 24 |
| 12" | 11.75" | 5.38" | 20.50" | .250" | 14.75" | 17.75" | 15.00" | 5.63" | 2.25" | 12.75" | 1.38" | 16 |
| 22" | 21.00" | 6.75" | 33.00" | .250" | 25.25" | 29.25" | 25.25" | 7.00" | 2.88" | 22.00" | 1.75" | 24 |
600# Weld Neck Flange Dimensions
Scroll to see all columns →
| Flange NPS | Inside Diameter (ID) | RF | Outside Diameter(OD) | RF_2 | Bolts Hole (B) | H1 | Bolts Circle (BC) | H | RF Thickness (T) | FF Thickness (T2) | T1 | Number of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-1/2" | 1.50" | 2.88" | 6.12" | .250" | 0.88" | 1.90" | 4.50" | 2.75" | 3.00" | 2.75" | 0.88" | 4 |
| 4" | 3.83" | 6.19" | 10.75" | .250" | 1.00" | 4.50" | 8.50" | 6.00" | 4.25" | 4.00" | 1.5" | 8 |
| 1/2" | 0.55" | 1.38" | 3.75" | .250" | 0.62" | 0.84" | 2.62" | 1.50" | 2.31" | 2.06" | 0.56" | 4 |
| 24" | 23.00" | 27.25" | 37.00" | .250" | 2.00" | 24.00" | 33.00" | 28.25" | 8.25" | 8.00" | 4.00" | 24 |
| 10" | 9.75" | 12.75" | 20.00" | .250" | 1.38" | 10.75" | 17.00" | 13.5" | 6.25" | 6.00" | 2.50" | 16 |
| 3/4" | 0.74" | 1.69" | 4.62" | .250" | 0.75" | 1.05" | 3.25" | 1.88" | 2.50" | 2.25" | 0.62" | 4 |
| 18" | 17.00" | 21.00" | 29.25" | .250" | 1.75" | 18.00" | 25.75" | 21.50" | 7.50" | 7.25" | 3.25" | 20 |
| 16" | 15.00" | 18.50" | 27.00" | .250" | 1.62" | 16.00" | 23.75" | 19.50" | 7.25" | 7.00" | 3.00" | 20 |
| 5" | 4.81" | 7.31" | 13.00" | .250" | 1.12" | 5.56" | 10.50" | 7.44" | 4.75" | 4.50" | 1.75" | 8 |
| 6" | 5.76" | 8.50" | 14.00" | .250" | 1.12" | 6.63" | 11.50" | 8.75" | 4.87" | 4.62" | 1.88" | 12 |
| 1-1/4" | 1.28" | 2.50" | 5.25" | .250" | 0.75" | 1.66" | 3.88" | 2.50" | 2.87" | 2.62" | 0.81" | 4 |
| 3" | 2.90" | 5.00" | 8.25" | .250" | 0.88" | 3.50" | 6.62" | 4.62" | 3.50" | 3.25" | 1.25" | 8 |
| 2" | 1.94" | 3.62" | 6.50" | .250" | 0.75" | 2.38" | 5.00" | 3.31" | 3.13" | 2.88" | 1.00" | 8 |
| 12" | 11.75" | 15.00" | 22.00" | .250" | 1.38" | 12.75" | 19.25" | 15.75" | 6.37" | 6.12" | 2.62" | 20 |
| 3-1/2" | 3.36" | 5.50" | 9.00" | .250" | 1.00" | 4.00" | 7.25" | 5.25" | 3.63" | 3.38" | 1.38" | 8 |
| 1" | 0.96" | 2.00" | 4.88" | .250" | 0.75" | 1.32" | 3.50" | 2.12" | 2.69" | 2.44" | 0.69" | 4 |
| 8" | 7.63" | 10.62" | 16.50" | .250" | 1.25" | 8.63" | 13.75" | 10.75" | 5.50" | 5.25" | 2.19" | 12 |
| 14" | 13.00" | 16.25" | 23.75" | .250" | 1.50" | 14.00" | 20.75" | 17.00" | 6.75" | 6.50" | 2.75" | 20 |
| 20" | 19.00" | 23.00" | 32.00" | .250" | 1.75" | 20.00" | 28.50" | 24.00" | 7.75" | 7.50" | 3.50" | 24 |
| 22" | 21.00" | 25.25" | 34.25" | .250" | 1.75" | 22.00" | 30.63" | 26.25" | 8.00" | 7.75" | 3.75" | 24 |
| 2-1/2" | 2.32" | 4.12" | 7.50" | .250" | 0.88" | 2.88" | 5.88" | 3.94" | 3.37" | 3.12" | 1.12" | 8 |
900# Weld Neck Flange Dimensions
Scroll to see all columns →
| Flange NPS | Inside Diameter (ID) | Bolts Circle (BC) | RF | Outside Diameter (OD) | H | RF Thickness (T) | H1 | FF Thickness (T2) | T1 | RF_2 | Bolts Hole (B) | Number of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16" | 15.00" | 24.25" | 18.50" | 27.75" | 20.00" | 8.75" | 16.00" | 8.50" | 3.50" | .250" | 1.75" | 20 |
| 3" | 2.90" | 7.50" | 5.00" | 9.50" | 5.00" | 4.25" | 3.50" | 4.00" | 1.50" | .250" | 1.00" | 8 |
| 14" | 13.00" | 22.00" | 16.25" | 25.25" | 17.75" | 8.63" | 14.00" | 8.38" | 3.38" | .250" | 1.63" | 20 |
| 6" | 5.76" | 12.50" | 8.50" | 15.00" | 9.25" | 5.75" | 6.63" | 5.50" | 2.19" | .250" | 1.25" | 12 |
| 5" | 4.81" | 11.00" | 7.31" | 13.75" | 7.50" | 5.25" | 5.56" | 5.00" | 3.00" | .250" | 1.38" | 8 |
| 18" | 17.00" | 27.00" | 21.00" | 31.00" | 22.25" | 9.25" | 18.00" | 9.00" | 4.00" | .250" | 2.00" | 20 |
| 8" | 7.63" | 15.50" | 10.63" | 18.50" | 11.75" | 6.63" | 8.63" | 6.38" | 2.50" | .250" | 1.50" | 12 |
| 20" | 19.00" | 29.50" | 23.00" | 33.75" | 24.50" | 10.00" | 20.00" | 9.75" | 4.25" | .250" | 2.13" | 20 |
| 24" | 23.00" | 35.50" | 27.25" | 41.00" | 29.50" | 11.75" | 24.00" | 11.50" | 5.50" | .250" | 2.63" | 20 |
| 4" | 3.83" | 9.25" | 6.19" | 11.50" | 6.25" | 4.75" | 4.50" | 4.50" | 1.75" | .250" | 1.25" | 8 |
| 10" | 9.75" | 18.50" | 12.75" | 21.50" | 14.50" | 7.50" | 10.75" | 7.25" | 2.75" | .250" | 1.50" | 16 |
| 12" | 11.75" | 21.00" | 15.00" | 24.00" | 16.50" | 8.13" | 12.75" | 7.88" | 3.13" | .250" | 1.50" | 20 |
Class 1500 Weld Neck Flange Dimensions
Scroll to see all columns →
| Flange NPS | Inside Diameter (ID) | RF Thickness (T) | Outside Diameter (OD) | RF | H1 | RF_2 | Bolts Hole (B) | H | T1 | FF Thickness (T2) | Bolts Circle (BC) | Number of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-1/2" | 1.50" | 3.50" | 7.00" | .250" | 1.90" | 2.88" | 1.13" | 2.75" | 1.25" | 3.25" | 4.88" | 4 |
| 2" | 1.94" | 4.25" | 8.50" | .250" | 2.38" | 3.63" | 1.00" | 4.13" | 1.50" | 4.00" | 6.50" | 8 |
| 3" | 2.90" | 4.88" | 10.50" | .250" | 3.50" | 5.00" | 1.25" | 5.25" | 1.88" | 4.63" | 8.00" | 8 |
| 12" | 11.75" | 11.38" | 26.50" | .250" | 12.75" | 15.00" | 2.13" | 17.75" | 4.88" | 11.13" | 22.50" | 16 |
| 4" | 3.83" | 5.13" | 12.25" | .250" | 4.50" | 6.19" | 1.38" | 6.38" | 2.13" | 4.88" | 9.50" | 8 |
| 8" | 7.63" | 8.63" | 19.00" | .250" | 8.63" | 10.63" | 1.75" | 11.50" | 3.63" | 8.38" | 15.50" | 12 |
| 1" | 0.96" | 3.13" | 5.88" | .250" | 1.32" | 2.00" | 1.00" | 2.06" | 1.13" | 2.88" | 4.00" | 4 |
| 1/2" | 0.55" | 2.63" | 4.75" | .250" | 0.84" | 1.38" | 0.88" | 1.50" | 0.88" | 2.38" | 3.25" | 4 |
| 16" | 15.00" | 12.50" | 32.50" | .250" | 16.00" | 18.50" | 2.63" | 21.75" | 5.75" | 12.25" | 27.75" | 16 |
| 14" | 13.00" | 12.00" | 29.50" | .250" | 14.00" | 16.25" | 2.38" | 19.50" | 5.25" | 11.75" | 25.00" | 16 |
| 1-1/4" | 1.28" | 3.13" | 6.25" | .250" | 1.66" | 2.50" | 1.00" | 2.50" | 1.13" | 2.88" | 4.38" | 4 |
| 10" | 9.75" | 10.25" | 23.00" | .250" | 10.75" | 12.75" | 2.00" | 14.50" | 4.25" | 10.00" | 19.00" | 12 |
| 5" | 4.81" | 6.38" | 14.75" | .250" | 5.56" | 7.31" | 1.63" | 7.75" | 2.88" | 6.13" | 11.50" | 8 |
| 18" | 17.00" | 13.13" | 36.00" | .250" | 18.00" | 21.00" | 2.88" | 23.50" | 6.38" | 12.88" | 30.50" | 16 |
| 20" | 19.00" | 14.25" | 38.75" | .250" | 20.00" | 23.00" | 3.13" | 25.25" | 7.00" | 14.00" | 32.75" | 16 |
| 6" | 5.76" | 7.00" | 15.50" | .250" | 6.63" | 8.50" | 1.50" | 9.00" | 3.25" | 6.75" | 12.50" | 12 |
| 3/4" | 0.74" | 3.00" | 5.13" | .250" | 1.05" | 1.69" | 0.88" | 1.75" | 1.00" | 2.75" | 3.50" | 4 |
| 2-1/2" | 2.32" | 4.38" | 9.63" | .250" | 2.88" | 4.13" | 1.13" | 4.88" | 1.63" | 4.13" | 7.50" | 8 |
| 24" | 23.00" | 16.25" | 46.00" | .250" | 24.00" | 27.25" | 3.63" | 30.00" | 8.00" | 16.00" | 39.00" | 16 |
Dimensional Tolerance Raised Face Weld Neck Flange
| col_1 | col_2 | col_3 | col_4 | col_5 |
|---|---|---|---|---|
| Certificate | Plate thickness in mm | Width in mm | Length in mm | Length in mm |
| Outside Diameter | When O is 24" or less. When O is over 24". | ±0.06" ±0.12" | ±1.6 mm | ±3.2 mm |
| Drilling and Facings | Bolt circle diameter Bolt Hole Spacing | ±0.06" ±0.03" | ±1.6 mm | ±0.8 mm |
| Diameter of Contact Face | 0.06" (1.6 mm) raised face. 0.25" (6.4 mm) raised face. | ±0.03" ±0.02" | ±0.8 mm | ±0.5mm |
| Diameter of Hub at Point of Welding | NPS 5 and smaller. NPS 6 and larger. | +0.09", -0.03" +0.16", -0.03" | +2.4 mm, -0.8mm | +4.0 mm, -0.8 mm |
| Thickness | NPS 18 and smaller. NPS 20 and larger. | +0.12" +0.19" | +3.2 mm | +4.8 mm |
| Inside Diameter | NPS 10, 12, 18, 20 and larger. | +0.03" +0.06" +0.12", -0.06" | +0.8 mm +1.6 mm | +3.2 mm, -1.6 mm |
| Diameter of Hub at Base | Hub Base is 24"or less. Hub Base is over 24". | +0.06" +0.12" | +1.6 mm | +3.2 mm |
| Length Through Hub | NPS 10 and smaller. NPS 12 and larger. | ±0.06" ±0.12" | ±1.6 mm | ±3.2 mm |
| Eccentricity of Bolt Circle and Facing | NPS 2 1/2 and smaller. NPS 3 and larger. | ±0.03" ±0.06" | ±0.8 mm | ±1.6 mm |
›Technical Data

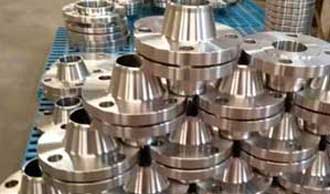

Available Material of High Pressure Weld Neck Flange
| col_1 | col_2 |
|---|---|
| Stainless Steel | ASTM A182 Gr. 304, 304H, 310, 316, 309, 316L, 321, 317L, 347, 904L |
| Carbon Steel | High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80), ASTM A350 LF2 / ASME SA350, A105N, ASTM A105 / ASME SA105 |
| Duplex Steel | ASTM A 182, ASME SA 182 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
| Nickel Alloy | ASTM / ASME SB 564 UNS 4400 (MONEL 400 ), UNS 8825 INCONEL (825), UNS 2201 (NICKEL 201 ), UNS 2200 ( NICKEL 200 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 6601 ( INCONEL 601 ), UNS 6600 (INCONEL 600 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) |
| Copper Nickel | Cupro Nickel 70/30 (C71500), Copper Nickel 90/10 (C70600 ), ASTM / ASME SB 62 / 151 / 61 / 152, UNS C71640 |
| Alloy Steel | F11, F12, F5, F9, F22, F91 |
ASME B16.5 Weld Neck Flange Schedule Chart
Scroll to see all columns →
| Nominal Pipe Size | Outside Diameter | Nominal Bore Diameter | Nominal Bore Diameter_2 | Nominal Bore Diameter_3 | Nominal Bore Diameter_4 | Nominal Bore Diameter_5 | Nominal Bore Diameter_6 | Nominal Bore Diameter_7 | Nominal Bore Diameter_8 | Nominal Bore Diameter_9 | Nominal Bore Diameter_10 | Nominal Bore Diameter_11 | Nominal Bore Diameter_12 | Nominal Bore Diameter_13 | Nominal Bore Diameter_14 | Nominal Bore Diameter_15 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Size | Outside Diameter | Sch.5S | Sch.10S | Sch.10 | Sch.20 | Sch.30 | Sch.40S | Sch.40 | Sch.60S | Sch.80S | Sch.80 | Sch.100 | Sch.120 | Sch.140 | Sch.160 | XX Strong |
| 1/2 | 0.840 | .710 | .674 | – | – | – | .622 | .622 | – | .546 | .546 | – | – | – | .464 | .252 |
| 3/4 | 1.050 | .920 | .884 | – | – | – | .824 | .824 | – | .742 | .742 | – | – | – | .612 | .434 |
| 1 | 1.315 | 1.185 | 1.097 | – | – | – | 1.049 | 1.049 | – | .957 | .957 | – | – | – | .815 | .599 |
| 1-1/4 | 1.660 | 1.530 | 1.442 | – | – | – | 1.380 | 1.380 | – | 1.278 | 1.278 | – | – | – | 1.160 | .896 |
| 1-1/2 | 1.900 | 1.770 | 1.682 | – | – | – | 1.610 | 1.610 | – | 1.500 | 1.500 | – | – | – | 1.338 | 1.100 |
| 2 | 2.375 | 2.245 | 2.157 | – | – | – | 2.067 | 2.067 | – | 1.939 | 1.939 | – | – | – | 1.687 | 1.503 |
| 2-1/2 | 2.875 | 2.709 | 2.635 | – | – | – | 2.469 | 2.469 | – | 2.323 | 2.323 | – | – | – | 2.125 | 1.771 |
| 3 | 3.500 | 3.334 | 3.260 | – | – | – | 3.068 | 3.068 | – | 2.900 | 2.900 | – | – | – | 2.624 | 2.300 |
| 3-1/2 | 4.000 | 3.834 | 3.760 | – | – | – | 3.548 | 3.548 | – | 3.364 | 3.364 | – | – | – | – | – |
| 4 | 4.500 | 4.334 | 4.260 | – | – | – | 4.026 | 4.026 | – | 3.826 | 3.826 | – | 3.624 | – | 3.438 | 3.152 |
| 5 | 5.563 | 5.345 | 5.295 | – | – | – | 5.047 | 5.047 | – | 4.813 | 4.813 | – | 4.563 | – | 4.313 | 4.063 |
| 6 | 6.625 | 6.407 | 6.357 | – | – | – | 6.065 | 6.065 | – | 5.761 | 5.761 | – | 5.501 | – | 5.187 | 4.897 |
| 8 | 8.625 | 8.407 | 8.329 | – | 8.125 | 8.071 | 7.981 | 7.981 | 7.813 | 7.625 | 7.625 | 7.437 | 7.187 | 7.001 | 6.813 | 6.875 |
| 10 | 10.750 | 10.482 | 10.420 | – | 10.250 | 10.136 | 10.020 | 10.020 | 9.750 | 9.750 | 9.564 | 9.312 | 9.062 | 8.750 | 8.500 | – |
| 12 | 12.750 | 12.438 | 12.390 | – | 12.250 | 12.090 | 12.000 | 11.938 | 11.626 | 11.750 | 11.374 | 11.062 | 10.750 | 10.500 | 10.126 | – |
| 14 | 14.000 | 13.688 | 13.625 | 13.500 | 13.375 | 13.250 | 13.250 | 13.124 | 12.812 | 13.000 | 12.500 | 12.124 | 11.814 | 11.500 | 11.188 | – |
| 16 | 16.000 | 15.670 | 15.625 | 15.500 | 15.375 | 15.250 | 15.250 | 15.000 | 14.688 | 15.000 | 14.312 | 13.938 | 13.564 | 13.124 | 12.812 | – |
| 18 | 18.000 | 17.670 | 17.625 | 17.500 | 17.375 | 17.124 | 17.250 | 16.876 | 16.500 | 17.000 | 16.124 | 15.688 | 15.250 | 14.876 | 14.438 | – |
| 20 | 20.000 | 19.625 | 19.564 | 19.500 | 19.250 | 19.000 | 19.250 | 18.814 | 18.376 | 19.000 | 17.938 | 17.438 | 17.000 | 16.500 | 16.062 | – |
| 24 | 24.000 | 23.564 | 23.500 | 23.500 | 23.250 | 22.876 | 23.250 | 22.624 | 22.062 | 23.000 | 21.562 | 20.938 | 20.376 | 19.876 | 19.312 | – |
Are you seraching for supplier in below countries contact us
| col_1 | col_2 |
|---|---|
| Ansi Cl150 Weld Neck Raised Face Flange | USA, Malaysia, Bangladesh, Finland |
| stainless steel weld neck pipe flange | Malaysia, Oman, Hong Kong, UAE |
| 1" SCH40S 150# Welding Neck Raised Face Flange | Europe, United Kingdom -UK, Malaysia, UAE |
| pn10 titanium forging weld neck flange | Canada, UK, Poland, Ellington -United States |
| Carbon Steel Corrosion Resistant Weld Neck Flanges | Saudi Arabia (KSA), South Africa, Kuwait, Brazil |
| 300lbs welding neck flange | Malaysia, Philippines, Canada, Singapore |
| B16.47 Long Weld Necks LWN Flange | Japan, Europe, Romania, Malaysia |
| class 150 weld neck flange | Turkey, United Arab Emirates (UAE), Norway, Malaysia |
| astm a105n carbon steel weld neck flange | France, Qatar, Europe, Thailand |
| titanium long weld neck flange | Taiwan, Malaysia, Los Alamos -Mexico, Philippines |
| ASME B16.5 Welding Neck Flange 1/2inch--48inch 150LB--2500LB | Germany, Czechia, Thailand, Malaysia |
| 316L stainless steel olet long weld neck flange | Colombia, Sweden, Malaysia, China |
| 3inch 1500# RF Incone l600 Weld neck flange ASME B16.5 | Indonesia, Dammam -KSA, Philippines, Belgium |
| ANSI B16.5 class 150 A105 pipe wn flange | South Africa, Bahrain, Singapore, Singapore |
| ANSI b16.5 Class 150 6 inch Weld Neck Flange | South Korea, Singapore, NY 12203 (USA), Malaysia |
| ANSI B16.5 gr2 WN RF welding neck titanium flange | Malaysia, Netherlands, Russia, Dubai |
| 1500 Orifice Forged Welding Neck Raised Face Flange | Italy, Chile, Iran, Singapore |
| 3/4" black flat weld neck stainless steel floor flange | Spain, Egypt, Mexico, UK |
| pn25 weld neck flange | Australia, Philippines, UK, Nigeria |
ASME B16.5 Weld Neck Flange
Get a Price
Request a quote for this item
Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.
Contact
Send us the spec
Grade, form, size and quantity — that's all we need to confirm stock and quote. Reach us directly, or use the form below.
Enquiry FormReply same working day
Direct Contact
Head Office
Shop No. 5, Ravi Estate, Keval Kantha Road, Near Gujarat Bottling Road, Industrial Area, Rakhial, Ahmedabad, Gujarat – 380023, India
Phone / WhatsApp
+91 93240 06771Working Hours
Monday – Saturday8:00 AM – 8:00 PM
SundayClosed
