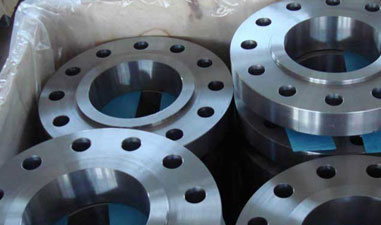

Slip On Flange

Leading Slip On Flange manufacturer in India, Call us to get Stainless Steel Reducing Slip On Flange & ASME B16.5 Carbon Steel SORF Flanges Price list, JIS 5k/ PN16/ Class 300 slip on flange Dimensions

Types of Flanges

On This Page

Specification Format of Slip On Flange Dimensions Of Class 150 Slip On Flanges Ansi B16 5 Class 300 Slip On Flange Dimensions 600 Lb Slip On Flange Dimensions Class 900 Slip On Flange Dimensions 1500 Lb Slip On Flange Dimensions Available Material of Awwa Class D Slip On Flange Slip On Flange Pressure Rating Benefits of Awwa Class D Slip On Flange Applications of ASME B16.5 SORF Flange

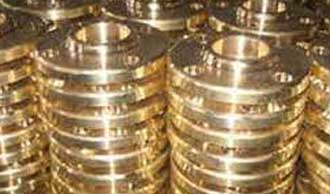

Gallery

Slip On Flange in Detail

Specification

Features & Applications

Benefits of Awwa Class D Slip On Flange

More easy to align with other parts during installation
Better leaking proof
Inner and outer welding on flange
Takes less time to cut accurately for the pipelines

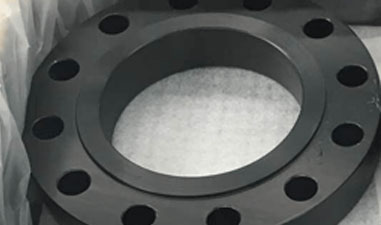

Applications of ASME B16.5 SORF Flange

Condensers in fossil
Food and Beverage Processing
Pulp and Paper Processing
Textiles with acid dyes
Nuclear fueled power generation stations

Technical Data

Full Specifications

›Finishes & Forms

Specification Format of Slip On Flange

col_1	col_2
Size	1/2″ to 48″
Standards	MSS SP44, ANSI B16.47 Series A & B, ASA, API-605, AWWA, ANSI B16.5, Custom Drawings.
Dimensions and Pressure Ratings	MSS- SP-44, Table D, E, F, & H, ANSI, BS4504, PN6, 10, 16, 25, 64 BS10, BS3293, DIN Standards
Pressure Ratings	PN6, PN10, PN16, PN25, PN40, PN64 etc.
Pressure class	150#, 300#, 600#, 1500#
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, Magnetic particle detector, UI trasonic flaw detector
Flange Face Type Manufacturer	Raised Face (RF), Flate Face (FF), Ring Type Joint (RTJ)
Export to	Egypt, Ireland, Iran, Ukraine,Brazil, Indonesia, Korea, USA, Saudi Arabia, Spain, Dubai, Singapore, Canada, India, Oman, Thailand, Peru, etc
Coating/Surface Treatment	Anti-rust Paint, Oil Black Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized.

›Dimensions & Weight

Dimensions Of Class 150 Slip On Flanges

Scroll to see all columns →

Size in Inch	Size in mm	RF Stud Length	Outer Diameter	Flange Length	Hub Outer Diameter	Flange Thickness	RF Dia.	PCD	Socket Bore	RF Height	Bolt Size UNC	Machine Bolt Length	No of Bolts	Hole Size	ISO Stud Size	Weight in kg
			A	D	C	B	E	G	H	F
5	125	95	255	35	164	22.3	185.7	215.9	143.8	2	3/4	85	8	7/8	M20	6.8
24	600	170	815	81	663	46.1	692.2	749.3	616	2	1 1/4	150	20	1 3/8	M33	100
2 1/2	65	90	180	27	90	20.7	104.8	139.7	74.6	2	5/8"	75	4	3/4	M16	3.2
14	350	135	535	56	400	33.4	412.8	476.3	359.2	2	1	115	12	1 1/8	M27	41
3 1/2	90	90	215	30	122	22.3	139.7	177.8	103.4	2	5/8"	75	8	3/4	M16	5
1 1/4	32	70	115	19	59	14.3	63.5	88.9	43.2	2	1/2	55	4	5/8"	M14	1.4
16	400	135	595	62	457	35	469.9	539.8	410.5	2	1	115	16	1 1/8	M27	54
3/4	20	65	100	14	38	11.2	42.9	69.9	27.7	2	1/2	50	4	5/8"	M14	0.9
1	25	65	110	16	49	12.7	50.8	79.4	34.5	2	1/2	55	4	5/8"	M14	0.9
12	300	120	485	54	365	30.2	381	431.8	327	2	7/8	100	12	1	M24	29
18	450	145	635	67	505	38.1	533.4	577.9	461.8	2	1 1/8	125	16	1 1/4	M30	59
2	50	85	150	24	78	17.5	92.1	120.7	61.9	2	5/8"	70	4	3/4	M16	2.3
1 1/2	40	70	125	21	65	15.9	73	98.4	49.5	2	1/2	65	4	5/8"	M14	1.4
4	100	90	230	32	135	22.3	157.2	190.5	116.1	2	5/8	75	8	3/4	M16	5.9
8	200	110	345	43	246	27	269.9	298.5	221.5	2	3/4	90	8	7/8	M20	13.7
6	150	100	280	38	192	23.9	215.9	241.3	170.7	2	3/4	85	8	7/8	M20	8.6
1/2	15	55	90	14	30	9.6	34.9	60.3	22.2	2	1/2	50	4	5/8"	M14	0.8
20	500	160	700	71	559	41.3	584.2	635	513.1	2	1 1/8	140	20	1 1/4	M30	75
10	250	115	405	48	305	28.6	323.8	362	276.2	2	7/8	100	12	1	M24	19.5
3	80	90	190	29	108	22.3	127	152.4	90.7	2	5/8"	75	4	3/4	M16	3.7

Ansi B16 5 Class 300 Slip On Flange Dimensions

Scroll to see all columns →

Size in Inch	Size in mm	Flange Thick.	Hub OD	Outer Dia.	Flange Length	RF Dia.	RF Height	RF Stud Length	PCD	Socket Bore	Hole Size	No of Bolts	ISO Stud Size	Bolt Size UNC	Machine Bolt Length	Weight in kg
		B	C	A	D	E	F		G	H
3 1/2	90	28.6	133	230	43	139.7	2	110	184.2	103.4	7/8	8	M20	3/4	95	7.7
24	600	68.3	702	915	105	692.2	2	230	812.8	616	1 5/8	24	M39	1 1/2	205	216
6	150	35	206	320	51	215.9	2	120	269.9	171.4	7/8	12	M20	3/4	110	17.7
4	100	30.2	146	255	46	157.2	2	115	200	116.8	7/8	8	M20	3/4	95	10
20	500	62	587	775	94	584.2	2	205	685.8	514.4	1 3/8	24	M33	1 1/4	185	143
1/2'	15	12.7	38	95	21	34.9	2	65	66.7	22.2	5/8	4	M14	2-Jan	55	1.2
12	300	49.3	375	520	71	381	2	170	450.8	328.2	1 1/4	16	M30	1 1/8	145	52
10	250	46.1	321	445	65	323.8	2	160	387.4	277.4	1 1/8	16	M27	1	140	36
5	125	33.4	178	280	49	185.7	2	120	235	144.4	7/8	8	M20	3/4	110	12.7
2	50	20.7	84	165	32	92.1	2	90	127	61.9	3/4	8	M16	5/8	75	3.2
8	200	39.7	260	380	60	269.9	2	140	330.2	222.2	1	12	M24	7/8	120	26
16	400	55.6	483	650	81	469.9	2	190	571.5	411.2	1 3/8	20	M33	1 1/4	165	86
3	80	27	117	210	41	127	2	110	168.3	90.7	7/8	8	M20	3/4	90	5.9
1	25	15.9	54	125	25	50.8	2	75	88.9	34.5	3/4	4	M16	5/8	65	1.4
3/4'	20	14.3	48	115	24	42.9	2	75	82.6	27.7	3/4	4	M16	5/8	65	1.4
1 1/4	32	17.5	64	135	25	63.5	2	85	98.4	43.2	3/4	4	M16	5/8	70	1.8
1 1/2	40	19.1	70	155	29	73	2	90	114.3	49.5	7/8	4	M20	3/4	75	2.7
18	450	58.8	533	710	87	533.4	2	195	628.6	462.3	1 3/8	24	M33	1 1/4	170	113
14	350	52.4	425	585	75	412.8	2	180	514.4	360.2	1 1/4	20	M30	1 1/8	160	75
2 1/2	65	23.9	100	190	37	104.8	2	100	149.2	74.6	7/8	8	M20	3/4	85	4.6

600 Lb Slip On Flange Dimensions

Scroll to see all columns →

Size in Inch	Size in mm	Outer Dia.	Socket Bore	Hub OD	Flange Thickness	RF Height	RF Dia.	PCD	Flange Length	ISO Stud Size	No of Bolts	RF Stud Length	Bolt Size UNC	Hole Size	Weight in kg
		A	H	C	B	F	E	G	D
1 1/4	32	135	43.2	64	20.7	7	63.5	98.4	29	M16	4	95	5/8	3/4	2.3
10	250	510	276.2	343	63.5	7	323.8	431.8	86	M33	16	215	1 1/4	1 3/8	77
5	125	330	143.8	189	44.5	7	185.7	266.7	60	M27	8	165	1	1 1/8	29
1	25	125	34.5	54	17.5	7	50.8	88.9	27	M16	4	90	5/8	3/4	1.8
3/4	20	115	27.7	48	15.9	7	42.9	82.6	25	M16	4	90	5/8	3/4	1.4
3	80	210	90.7	117	31.8	7	127	168.3	46	M20	8	125	3/4	7/8	7.3
12	300	560	327	400	66.7	7	381	489	92	M33	20	220	1 1/4	1 3/8	91
24	600	940	616	718	101.6	7	692.2	838.2	140	M48	24	330	1 7/8	2	332
2 1/2	65	190	74.6	100	28.6	7	104.8	149.2	41	M20	8	120	3/4	7/8	5.9
4	100	275	116.1	152	38.1	7	157.2	215.9	54	M24	8	145	7/8	1	16.8
8	200	420	221.5	273	55.6	7	269.9	349.2	76	M30	12	190	1 1/8	1 1/4	52
2	50	165	61.9	84	25.4	7	92.1	127	37	M16	8	110	5/8	3/4	4.1
1/2	15	95	22.2	38	14.3	7	34.9	66.7	22	M14	4	75	1/2	5/8	1.3
18	450	745	461.8	546	82.6	7	533.4	654	117	M42	20	275	1 5/8	1 3/4	182
20	500	815	513.1	610	88.9	7	584.2	723.9	127	M42	24	285	1 5/8	1 3/4	232
16	400	685	410.5	495	76.2	7	469.9	603.2	106	M39	20	255	1 1/2	1 5/8	150
14	350	605	359.2	432	69.9	7	412.8	527	94	M36	20	235	1 3/8	1 1/2	105
1 1/2	40	155	49.5	70	22.3	7	73	114.3	32	M20	4	110	3/4	7/8	3.2
6	150	355	170.7	222	47.7	7	215.9	292.1	67	M27	12	170	1	1 1/8	36

Class 900 Slip On Flange Dimensions

Scroll to see all columns →

Size in Inch	Size in mm	No of Bolts	Outer Dia.	RF Height	Flange Thickness	Flange Length	PCD	RF Dia.	Hub OD	Socket Bore	Hole Size	RF Stud Length	Bolt Size UNC	ISO Stud Size	Weight in kg
			A	F	B	D	G	E	C	H
8	200	12	470	7	63.5	102	393.7	269.9	298	221.5	1 1/2	220	1 3/8	M36	78
4	100	8	290	7	44.5	70	235	157.2	159	116.1	1 1/4	170	1 1/8	M30	24
2 1/2	65	8	245	7	41.3	64	190.5	104.8	124	74.6	1 1/8	160	1	M27	16.5
2	50	8	215	7	38.1	57	165.1	92.1	105	61.9	1	145	7/8	M24	11.5
3/4	20	4	130	7	25.4	35	88.9	42.9	44	27.7	7/8	115	3/4	M20	2.3
12	300	20	610	7	79.4	117	533.4	381	419	327	1 1/2	255	1 3/8	M36	148
18	450	20	785	7	101.6	152	685.8	533.4	565	461.8	2	325	1 7/8	M48	258
10	250	16	545	7	69.9	108	469.9	323.8	368	276.2	1 1/2	235	1 3/8	M36	112
1 1/2	40	4	180	7	31.8	44	123.8	73	70	49.5	1 1/8	140	1	M27	5.5
1/2	15	4	120	7	22.3	32	82.6	34.9	38	22.2	7/8	110	3/4	M20	1.8
1 1/4	32	4	160	7	28.6	41	111.1	63.5	64	43.2	1	125	7/8	M24	4.1
16	400	20	705	7	88.9	133	616	469.9	508	410.5	1 3/4	285	1 5/8	M42	193
14	350	20	640	7	85.8	130	558.8	412.8	451	359.2	1 5/8	275	1 1/2	M39	182
20	500	20	855	7	108	159	749.3	584.2	622	513.1	2 1/8	350	2	M52	317
5	125	8	350	7	50.8	79	279.4	185.7	190	143.8	1 3/8	190	1 1/4	M33	38
6	150	12	380	7	55.6	86	317.5	215.9	235	170.7	1 1/4	190	1 1/8	M30	50
3	80	8	240	7	38.1	54	190.5	127	127	90.7	1	145	7/8	M24	12
1	25	4	150	7	28.6	41	101.6	50.8	52	34.5	1	125	7/8	M24	3.6
24	600	20	1040	7	139.7	203	901.7	692.2	749	616	2 5/8	440	2 1/2	M64	608

1500 Lb Slip On Flange Dimensions

Scroll to see all columns →

Size in Inch	Size in mm	Outer Dia.	Hub OD	Socket Bore	Flange Length	RF Height	Flange Thickness	RF Dia.	PCD	No of Bolts	ISO Stud Size	RF Stud Length	Bolt Size UNC	Hole Size	Weight in kg
		A	C	H	D	F	B	E	G
1 1/2	40	180	70	49.5	44	7	31.8	73	123.8	4	M27	140	1	1 1/8	5.5
2	50	215	105	61.9	57	7	38.1	92.1	165.1	8	M24	145	7/8	1	9.8
3/4	20	130	44	27.7	35	7	25.4	42.9	88.9	4	M20	115	3/4	7/8	2.3
1/2	15	120	38	22.2	32	7	22.3	34.9	82.6	4	M20	110	3/4	7/8	1.8
1 1/4	32	160	64	43.2	41	7	28.6	63.5	111.1	4	M24	125	7/8	1	4.1
1	25	150	52	34.5	41	7	28.6	50.8	101.6	4	M24	125	7/8	1	3.7
2 1/2	65	245	124	74.6	64	7	41.3	104.8	190.5	8	M27	160	1	1 1/8	16.4

›Technical Data

Available Material of Awwa Class D Slip On Flange

col_1	col_2
Stainless Steel	ASTM A182 Gr. 304, 304H, 310, 316, 309, 316L, 321, 317L, 347, 904L
Carbon Steel	High Yield CS ASTM A694 / A694 (F52 F56 F60 F65 F70 F80), ASTM A350 LF2 / ASME SA350, A105N, ASTM A105 / ASME SA105
Duplex Steel	ASTM A 182, ASME SA 182 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy	ASTM / ASME SB 564 UNS 4400 (MONEL 400 ), UNS 8825 INCONEL (825), UNS 2201 (NICKEL 201 ), UNS 2200 ( NICKEL 200 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 6601 ( INCONEL 601 ), UNS 6600 (INCONEL 600 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
Copper Nickel	Cupro Nickel 70/30 (C71500), Copper Nickel 90/10 (C70600 ), ASTM / ASME SB 62 / 151 / 61 / 152, UNS C71640
Alloy Steel	F11, F12, F5, F9, F22, F91

Are you looking for a supplier who is supplying to your area already

col_1	col_2
Slip On 8 Inch Flange	Italy, Chile, Iran, Singapore
B16.5 Duplex Stainless Steel 1/2" - 96" Slip On Flange	South Africa, Bahrain, Singapore, Singapore
Dn150 carbon steel flat welding slip on flange	Malaysia, Netherlands, Russia, Dubai
Monel 400 Slip On Flange RF 5'' 600LB	Taiwan, Malaysia, Los Alamos -Mexico, Philippines
ASME B16.5 R/F 150LBS slip on flanges	France, Qatar, Europe, Thailand
600LB slip on so flange	Indonesia, Dammam -KSA, Philippines, Belgium
PN25 Slip On Flange Carbon Steel	Malaysia, Oman, Hong Kong, UAE
Slip On Plate Flat Face Pipe Flange	Europe, United Kingdom -UK, Malaysia, UAE
schedule 40 slip on stainless steel flange	Saudi Arabia (KSA), South Africa, Kuwait, Brazil
threaded slip on flange with pipeline	Australia, Philippines, UK, Nigeria
ASME B16.5 DN80 600LB F304 Slip on Flange	Canada, UK, Poland, Ellington -United States

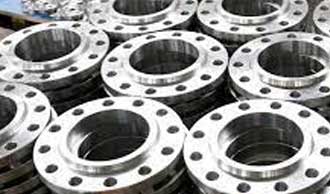

Pure titanium slip on flange	South Korea, Singapore, NY 12203 (USA), Malaysia
slip on mild steel flange DN 500 20"	Japan, Europe, Romania, Malaysia
CL150 dn400 Slip-on forged flange	Spain, Egypt, Mexico, UK
sa 105 class 3000 large flat face slip on flange sch160	Colombia, Sweden, Malaysia, China
ANSI B 16.5 Grade 2 Slip-On Flange	USA, Malaysia, Bangladesh, Finland
Dia15 mm Class 600 Slip On Stainless Steel Flange	Malaysia, Philippines, Canada, Singapore
Low Pressure Forged Fillet Welded Slip On Flange for Temperature Application	Germany, Czechia, Thailand, Malaysia
6 inch slip on pipe flange	Turkey, United Arab Emirates (UAE), Norway, Malaysia

›Pressure Ratings

Slip On Flange Pressure Rating

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8
ANSI/ASME B16.34	ANSI PRESSURE RATING	ANSI PRESSURE RATING	ANSI PRESSURE RATING	ANSI PRESSURE RATING	ANSI PRESSURE RATING	ANSI PRESSURE RATING	ANSI PRESSURE RATING
Temperature in C°	150#	300#	400#	600#	900#	1500#	2500#
-29 / 38	19.6	51.1	68.1	102.1	153.2	255.3	425.5
50	19.2	50.1	66.8	100.2	150.4	250.6	417.7
100	17.7	46.6	62.1	93.2	139.8	233	388.3
150	15.8	45.1	60.1	90.2	135.2	225.4	375.6
200	13.8	43.8	58.4	87.6	131.4	219	365
250	12.1	41.9	55.9	83.9	125.8	209.7	349.5
300	10.2	39.8	53.1	79.6	119.5	199.1	331.8
325	9.3	38.7	51.6	77.4	116.1	193.6	322.6
350	8.4	37.6	50.1	75.1	112.7	187.8	313
375	7.4	36.4	48.5	72.7	109.1	181.8	303.1
400	6.5	34.7	46.3	69.4	104.2	173.6	289.3
425	5.5	28.8	38.4	57.5	86.3	143.8	239.7
450	4.6	23	30.7	46	69	115	191.7
475	3.7	17.4	23.2	34.9	52.3	87.2	145.3
500	2.8	11.8	15.7	23.5	35.3	58.8	97.9
