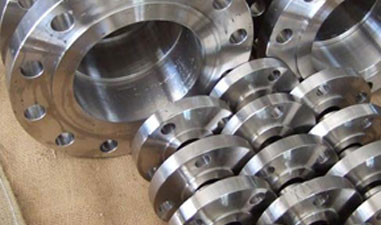

Monel 400 Flanges

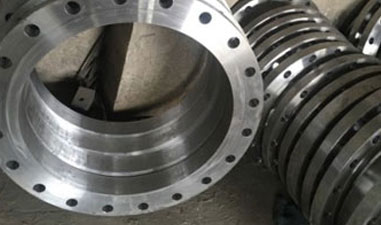

Buy Online ASTM B564 UNS N04400 Slip on Flanges at Factory Price, Manufacturer of Monel 400 Flanges in India, Ready Stock of Alloy 400 Blind Flange in NPT, BSP, BSPT Thread Types.
Nickel Alloys
Gallery
Monel 400 Flanges in Detail
Specification
Features & Applications
Density
- 8.80 g/cm3
- 0.318 lb/in.3
Melting point
- 2370 to 2460 °F
- 1300 to 1350 °C
UNS
- N04400
Tensile Strength
- 480 MPa
Yield Strength
- 170 MPa
Alloy Type
- Ni-Cu
Elongation
- 35 %
ASME SB 564 UNS N04400 Reducing Flange Common Trade Name
- Monel 400®
Monel Grade 400 Pipe Flange Manufacturing Technique
- Forged
- Drilling
- Turning
- CNC machining
- Rolled
- Milling
Other Types of ASTM B564 N04400 Monel 400 Flange
- Monel 400 High Hub Blind Flange
- Alloy 400 Swivel Flange
- UNS N04400 Orifice Plate
- ASTM B564 UNS N04400 Spade Flange
- ASTM B564 N04400 Anchor Flange
- Nickel Alloy 400 Ring Spacer Flange
- DIN 2.4360 Expander Flange
- ASME SB 564 UNS N04400 Reducing Flange

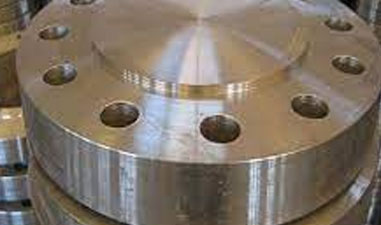

ASTM B564 N04400 Monel 400 Blind Flanges Types
- UNS N04400 Raised Face Blind Flange
- ASTM B564 UNS N04400 Flat Face Blind Flange
- ASTM B564 N04400 Forged Blind Flange
- Nickel Alloy 400 Threaded Blind Flange
- DIN 2.4360 Ring Type Joint Blind Flange
ASME SB 564 N04400 Slip on Flanges Types
- ASME SB 564 UNS N04400 Forged Slip on Flange
- 2.4360 Monel 400 Threaded Slip on Flange
- Monel 4400 Raised Face Slip on Flange
- Monel Grade 400 Flat Face Slip on Flange
- Monel UNS 4400 Ring Type Joint Slip on Flange
Class 150 Monel 400 Weld Neck Flanges Types
- 2.4360 Alloy 400 Long Weld Neck Flange
- ASTM B564 N04400 Monel 400 Flat Face Weld Neck Flange
- ASME SB 564 N04400 Raised Face Weld Neck Flange
- Monel 400 Ring Type Joint Weld Neck Flange
ASME SB564 N04400 SWRF Flanges ASME standards
- ASME B16.5
- ASME B16.36
- ASME B16.20
- ASME B16.47
Nickel 400 Socket weld flange finish
- Zinc Plated
- Concentric Serrated
- Serrated finish
- Spiral Serrated
- Mirror finish
- Smooth Finish
- Cold Water Finish
Monel 400 Spectacle Blind Flange Marking
- Manufacturers Name
- Material grade
- Face type
- Origin
- Sizes
- Standard
- Pressure class
Faces Types of ASTM B564 Monel 400 Slip on Flanges
- Flat face
- Ring joint
- Raised face
- Lap joint
- Large and small tongue and groove
- Male and female
Packing
- Wooden Case
- Plastic Bag
Logistics
- By Air
- By Sea
Alloy 400 Loose Flanges Test Certificates
- Raw Materials Certificate
- Third Party Inspection
- MTC EN 10204 3.1/3.2
- 100% Radiography Test Report
Monel 400 Weld Neck Flanges Other standards
- Europe : NiCu30Fe
- AFNOR : NU-30M
- Japan :NW 4400
- Russia : МНЖМц 28-2,5-1,5
Available As
2.4360 Monel 400 Weld Neck FlangesMonel 4400 Backing FlangeMonel Grade 400 Lap Joint FlangesMonel UNS 4400 Reducing Flange2.4360 Alloy 400 LWN FlangesASTM B564 N04400 Monel 400 Socket Weld FlangesASME SB 564 N04400 Threaded FlangesMonel 400 Blind FlangesAlloy 400 Slip on Flanges
Technical Data
Full Specifications
›Dimensions & Weight

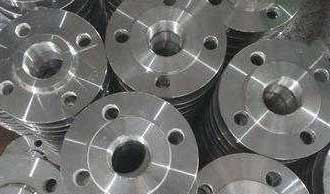

Alloy 400 Flanges Dimensions
Scroll to see all columns →
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C | 95 | 67 | 4 | 13 | 14 |
| AS 2129 Flange | Table D | 95 | 67 | 4 | 13 | 14 |
| AS 2129 Flange | Table E | 95 | 67 | 4 | 13 | 14 |
| AS 2129 Flange | Table F | 95 | 67 | 4 | 13 | 14 |
| AS 2129 Flange | Table H | 114 | 83 | 4 | 16 | 17 |
| AS 2129 Flange | Table J | 114 | 83 | 4 | 16 | 17 |
| ANSI B16.5 | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI B16.5 | ANSI 300 | 95 | 67 | 4 | 13 | 16 |
| ANSI B16.5 | ANSI 600 | 95 | 67 | 4 | 13 | 16 |
| ANSI B16.5 | ANSI 900 | 121 | 83 | 4 | 19 | 22 |
| ANSI B16.5 | ANSI 1500 | 121 | 83 | 4 | 19 | 22 |
| ISO 7005 (DIN) Flange | PN6 | 80 | 55 | 4 | M10 | 11 |
| ISO 7005 (DIN) Flange | PN10 | 95 | 65 | 4 | M12 | 14 |
| ISO 7005 (DIN) Flange | PN16 | 95 | 65 | 4 | M12 | 14 |
| ISO 7005 (DIN) Flange | PN20 | 90 | 60.5 | 4 | M14 | 16 |
| ISO 7005 (DIN) Flange | PN25 | 95 | 65 | 4 | M12 | 14 |
| ISO 7005 (DIN) Flange | PN40 | 95 | 65 | 4 | M12 | 14 |
Weight Chart of Monel 400 Socket weld Flanges
Scroll to see all columns →
| CLASS | 150 lb | 150 lb_2 | 150 lb_3 | 150 lb_4 | 150 lb_5 | 150 lb_6 | 150 lb_7 | 150 lb_8 | 150 lb_9 | 150 lb_10 | 150 lb_11 | 150 lb_12 | 150 lb_13 | 150 lb_14 | 150 lb_15 | 150 lb_16 | 150 lb_17 | 150 lb_18 | 150 lb_19 | 150 lb_20 | 150 lb_21 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Size | ½ | ¾ | 1 | 1¼ | 1½ | 2 | 2½ | 3 | 3½ | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| Threaded Flange | 1 | 2 | 2 | 3 | 3 | 5 | 8 | 9 | 12 | 13 | 15 | 19 | 30 | 43 | 64 | 90 | 98 | 130 | 165 | 185 | 220 |
| Weld Neck Flange | 2 | 2 | 3 | 3 | 4 | 6 | 10 | 11.5 | 12 | 16.5 | 21 | 26 | 42 | 54 | 88 | 114 | 140 | 165 | 197 | 225 | 268 |
| Slip On Flange | 1 | 2 | 2 | 3 | 3 | 5 | 8 | 9 | 11 | 13 | 15 | 19 | 30 | 43 | 64 | 90 | 106 | 130 | 165 | 185 | 220 |
| Socket Weld Flange | 2 | 2 | 2 | 3 | 3 | 5 | 8 | 9 | 11 | 13 | 15 | 19 | 30 | 43 | 64 | 90 | 98 | 130 | 165 | 185 | 220 |
| Blind Flange | 2 | 2 | 2 | 3 | 4 | 5 | 7 | 9 | 13 | 17 | 20 | 27 | 47 | 70 | 123 | 140 | 180 | 220 | 285 | 355 | 430 |
| Lap Joint Flange | 1 | 2 | 2 | 3 | 3 | 5 | 8 | 9 | 11 | 13 | 15 | 19 | 30 | 43 | 64 | 105 | 140 | 160 | 195 | 245 | 275 |
›Material Properties
Mechanical Behaviour of DIN 2.4360 Forged Flanges
| Element | Melting Point | col_3 | Tensile Strength | Elongation |
|---|---|---|---|---|
| Element | 2460 °F / 1350 °C | –80000 Psi / 550 MPa | Elongation | |
| Monel 400 | Density | Yield Strength | 40 % | |
| Monel 400 | 8.8 g/cm3 | 35000 Psi / 240 MPa | 40 % |
›Technical Data
Equivalent of Alloy 400 Weld Neck Flanges
Scroll to see all columns →
| STANDARD | WERKSTOFF NR. | North America | Japan | British Standard | Russia | France | Europe |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
ASTM B564 UNS N04400 Flanges Properties
| Grade | Specific Heat | Elastic Modulus | Electrical Resistivity | Thermal Conductivity |
|---|---|---|---|---|
| 400 | 0.102 Btu/lb/°F | 26.0 x 106psi | 0.511 μ Ω • m | 151 Btu • in/h/ft 2 /°F |
›Pressure Ratings
Alloy Monel 400 Flange Pressure Rating
Scroll to see all columns →
| col_1 | col_2 | col_3 | col_4 | col_5 | col_6 | col_7 | col_8 |
|---|---|---|---|---|---|---|---|
| ANSI/ASME B16.34 | PRESSURE RATING CHART | PRESSURE RATING CHART | PRESSURE RATING CHART | PRESSURE RATING CHART | PRESSURE RATING CHART | PRESSURE RATING CHART | PRESSURE RATING CHART |
| Temperature °F | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
