Super Duplex 2507 Flanges

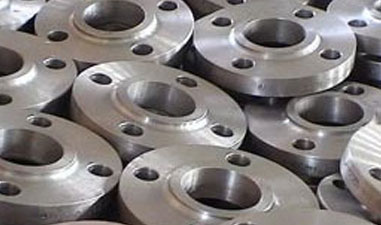

Manufacturer of Super Duplex 2507 Flanges in India, check UNS S32507 Slip on/ Weld Neck Flanges online price list, equivalent standard, and sizes. Supplier of Stainless Steel Grade 2507 Blind Flange

Duplex & Super Duplex

On This Page

Specification of Super Duplex 2507 Flanges Chemical Composition of Stainless Steel Grade 2507 Weld Neck Flange Mechanical Properties of SAF 2507 Plate Flanges Equivalent Grade of WNR 1.4410 Pipe Flange Duplex Stainless Steel 2507 Flanges Weight Super Duplex SAF 2507 Pipe Flange Dimension Super Duplex UNS S32750 Flange Pressure Rating

Gallery

Super Duplex 2507 Flanges in Detail

Technical Data

Full Specifications

›Technical Data

Specification of Super Duplex 2507 Flanges

Size Chart	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI	6Bar 10Bar 25Bar 16Bar 40Bar
EN	25Bar 6Bar 10Bar 16Bar 40Bar
Connect Type/ Flange Face Type	Ring Type Joint (RTJ), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Flat Face (FF), Large Male-Female (LMF), Small Tongue, Large Tongue & Groove, Groove
Test Certificates	EN 10204/3.1B / Raw Materials Certificate / 100% Radiography Test Report / Third Party Inspection Report, etc
Coating	Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Anti-rust Paint, Yellow Transparent
Most common types	Threaded / Screwed / Forged / Plate
Uses & application	Petrochemicals and acids. Nuclear power (mostly seamless). Bitumen upgraders. Heavy oil refineries.
Pressure Rating ANSI	600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS
Pressure Calculation in DIN	16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40
Equipment	Pushing Machine, Press machine, electric bevelling machine, Bending machine, Sand-blasting machine etc
Origin	West Europe / Japan / Indian / USA / Korean
Special design	As per your drawing AS, ANSI, BS, DIN and JIS / 15 NB (1/2") to 200 NB (8") / Equal and Reducing Configurations
Test	Direct-reading Spectrograph, UI trasonic flaw detector, Hydrostatic testing machine, X-ray detector, Magnetic particle detector
Standards	API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, API7S-15, API7S-43, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092
Export to	Dubai, Singapore, Indonesia, Ukraine, Korea, Iran, India, Saudi Arabia, Thailand, Egypt, Oman, Spain, Canada, USA, Ireland, Brazil, Peru, etc

We Supply Regular Consignments To Below Places

col_1	col_2
1/2" - 96" Stainless Steel 2507 Plate Flange	South Korea, Singapore, NY 12203 (USA), Malaysia
super duplex blind flanges 12 inch class 600	Italy, Chile, Iran, Singapore
EN1092-1 Super Duplex F53 SS Flange	France, Qatar, Europe, Thailand
Super Duplex Stainless Steel Flange 2507 12'' x 2'' 150 LB	Australia, Philippines, UK, Nigeria
150# SCH 10S 12inch super Duplex 2507 forged Flange	USA, Malaysia, Bangladesh, Finland
Forged WELDOFLANGE Super Duplex Stainless Steel 2'' x 1-1/4'' 150LB SCH40s	Turkey, United Arab Emirates (UAE), Norway, Malaysia
ASTM A182 F53 UNS S32750 Slip On Flange	Malaysia, Netherlands, Russia, Dubai
ANSI B16.5 Super Duplex 2507 Forged Steel Pipe Flange	Taiwan, Malaysia, Los Alamos -Mexico, Philippines
2507 Stainless Steel ansi b16.5 class 150 welding neck flange	Malaysia, Philippines, Canada, Singapore
2507 Stainless Steel weld neck flange	Germany, Czechia, Thailand, Malaysia
ANSI B16.5 Super Duplex 2507 THREADED FLANGES	South Africa, Bahrain, Singapore, Singapore
ASME b16.5 forged blind large diameter Stainless 2507 flange	Europe, United Kingdom -UK, Malaysia, UAE
ASME SA182 Super Duplex S32950 RTJ Flange	Saudi Arabia (KSA), South Africa, Kuwait, Brazil
SAF 2507 Super Duplex SS Forged Socket Weld Pipe Flange	Indonesia, Dammam -KSA, Philippines, Belgium
DIN 1.4410 PN10 Forged Flanges	Spain, Egypt, Mexico, UK
Class 150 RF Super Duplex Stainless Steel ANSI Weld Neck Flange	Canada, UK, Poland, Ellington -United States
Super Duplex 2507 rtj 24 inch flange	Colombia, Sweden, Malaysia, China
SCH160 SUPER DUPLEX STAINLESS FLAT FACE FLANGE	Japan, Europe, Romania, Malaysia
ASME B16.5 ASTM A182 F53 S32750 FLANGE SIZE 3/4" CLASS150	Malaysia, Oman, Hong Kong, UAE

›Material Properties

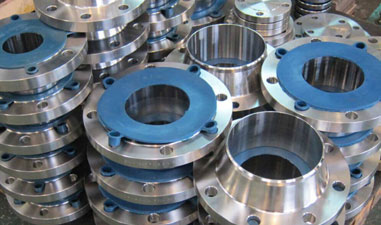

Chemical Composition of Stainless Steel Grade 2507 Weld Neck Flange

Scroll to see all columns →

C	N	P	Si	Mn	Mo	Ni	Cr	S	Other
0.030	0.24/0.32	0.035	0.80	1.20	3.0/5.0	6.00/8.00	24.0/26.0	0.020	Cu:0.50

Mechanical Properties of SAF 2507 Plate Flanges

col_1	col_2	col_3	col_4	col_5
Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
7.8 g/cm3	1350 °C (2460 °F)	Psi - 80000 , MPa - 550	Psi - 116000 , MPa - 800	15 %

Equivalent Grade of WNR 1.4410 Pipe Flange

col_1	col_2	col_3
STANDARD	UNS	WERKSTOFF NR.
Super Duplex S32750	S32750	1.4410

›Dimensions & Weight

Duplex Stainless Steel 2507 Flanges Weight

Scroll to see all columns →

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14	95	67	4	M12	14
AS 2129	Table C	95	67	4	13	14
AS 2129	Table D	95	67	4	13	14
AS 2129	Table E	95	67	4	13	14
AS 2129	Table F	95	67	4	13	14
AS 2129	Table H	114	83	4	16	17
AS 2129	Table J	114	83	4	16	17
ANSI B16.5	ANSI 150	89	60	4	13	16
ANSI B16.5	ANSI 300	95	67	4	13	16
ANSI B16.5	ANSI 600	95	67	4	13	16
ANSI B16.5	ANSI 900	121	83	4	19	22
ANSI B16.5	ANSI 1500	121	83	4	19	22
ISO 7005 (DIN)	PN6	80	55	4	M10	11
ISO 7005 (DIN)	PN10	95	65	4	M12	14
ISO 7005 (DIN)	PN16	95	65	4	M12	14
ISO 7005 (DIN)	PN20	90	60.5	4	M14	16
ISO 7005 (DIN)	PN25	95	65	4	M12	14
ISO 7005 (DIN)	PN40	95	65	4	M12	14

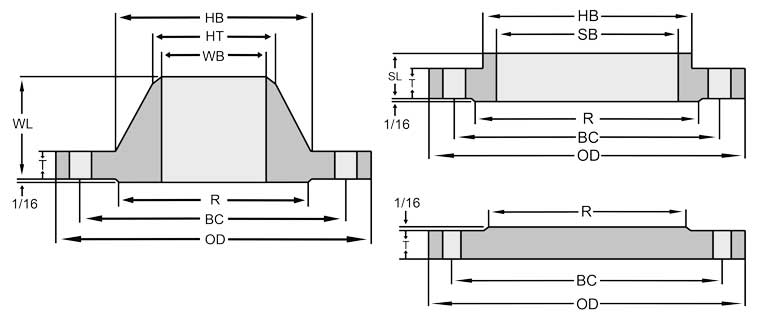

Super Duplex SAF 2507 Pipe Flange Dimension

Scroll to see all columns →

Nominal Size	Outside Diameter / (OD)	Min. Thickness / (T)	RF Dia. / (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle / (BC)	SO Bore ID / (SB)	WN Bore ID / (WB)	Dia. Hub Base / (HB)	Dia. of Hub Top / (HT)	SO LTH / (SL)	WN LTH / (WL)
1⁄2	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
3⁄4	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
11⁄4	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
11⁄2	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
21⁄2	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
31⁄2	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

›Pressure Ratings

Super Duplex UNS S32750 Flange Pressure Rating

Scroll to see all columns →

Temp. ℃	Pressure-temperature rating for ASME B16.47 by class, bar	Pressure-temperature rating for ASME B16.47 by class, bar_2	Pressure-temperature rating for ASME B16.47 by class, bar_3	Pressure-temperature rating for ASME B16.47 by class, bar_4	Pressure-temperature rating for ASME B16.47 by class, bar_5	Pressure-temperature rating for ASME B16.47 by class, bar_6
Temp. ℃	75	150	300	400	600	900
-29 to 38	10.0	20.0	51.7	68.9	103.4	155.1
50	9.8	19.5	51.7	68.9	103.4	155.1
100	8.8	17.7	50.7	67.5	101.3	152.0
150	7.9	15.8	45.9	61.2	91.9	137.8
200	6.9	13.8	42.7	56.9	85.3	128.0
250	6.0	12.1	40.5	53.9	80.9	121.4
300	5.1	10.2	38.9	51.8	77.7	116.6
