Duplex 2205 Flanges

Looking for Duplex 2205 Flanges manufacturers in India? All types ASTM A182 UNS S31803 Slip on Flange, View SAF 2205 Weld Neck Flanges price list ex Mumbai. Supplier of 2205 uns s31803 Blind Flanges

Duplex & Super Duplex

On This Page

Specification List of Duplex 2205 Flanges Chemical Structure of ASTM A182 UNS S31803 Slip on Flange Mechanical Behaviour of SAF 2205 Weld Neck Flanges Equivalent of 2205 Duplex Blind Flanges Physical Properties of DIN 1.4462 Plate Flanges Dimensions of Duplex S31803 Slip On Flanges Weight Chart of Duplex Steel 2205 Flanges Saf 2205 Flange Pressure Rating Dimensions Tolerance of 2205 uns s31803 Flanges

Gallery

Duplex 2205 Flanges in Detail

Technical Data

Full Specifications

›Technical Data

Specification List of Duplex 2205 Flanges

Size Chart	1/2" (15 NB) to 48" (1200NB) DN10~DN5000
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI	6Bar 10Bar 25Bar 16Bar 40Bar
EN	25Bar 6Bar 10Bar 16Bar 40Bar
Connect Type/ Flange Face Type	Ring Type Joint (RTJ), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Flat Face (FF), Large Male-Female (LMF), Small Tongue, Large Tongue & Groove, Groove
Uses & application	Petrochemicals and acids. Nuclear power (mostly seamless). Bitumen upgraders. Heavy oil refineries.
Pressure Rating ANSI	600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS
Pressure Calculation in DIN	16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40
Test Certificates	EN 10204/3.1B / Raw Materials Certificate / 100% Radiography Test Report / Third Party Inspection Report, etc
Coating	Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Anti-rust Paint, Yellow Transparent
Most common types	Threaded / Screwed / Forged / Plate
Equipment	Pushing Machine, Press machine, electric bevelling machine, Bending machine, Sand-blasting machine etc
Origin	West Europe / Japan / Indian / USA / Korean
Test	Direct-reading Spectrograph, UI trasonic flaw detector, Hydrostatic testing machine, X-ray detector, Magnetic particle detector
Standards	API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, API7S-15, API7S-43, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092
Export to	Dubai, Singapore, Indonesia, Ukraine, Korea, Iran, India, Saudi Arabia, Thailand, Egypt, Oman, Spain, Canada, USA, Ireland, Brazil, Peru, etc
Special design	As per your drawing AS, ANSI, BS, DIN and JIS / 15 NB (1/2") to 200 NB (8") / Equal and Reducing Configurations

Physical Properties of DIN 1.4462 Plate Flanges

Scroll to see all columns →

col_1	col_2	col_3	col_4	col_5	col_6	col_7	col_8	col_9	col_10
Grade	Density / (kg/m3)	Elastic / Modulus (GPa)	Mean Co-eff of Thermal / Expansion (μm/m/°C)	Mean Co-eff of Thermal / Expansion (μm/m/°C)	Mean Co-eff of Thermal / Expansion (μm/m/°C)	Thermal / Conductivity (W/m.K)	Thermal / Conductivity (W/m.K)	Specific / Heat / 0-100°C ( J/kg.K)	Electrical / Resistivity / (nΩ.m)
Grade	Density / (kg/m3)	Elastic / Modulus (GPa)	0-100°C	0-315°C	0-538°C	at 100°C	at 500°C	Specific / Heat / 0-100°C ( J/kg.K)	Electrical / Resistivity / (nΩ.m)
2205	782	190	13.7	14.2	-	19	-	418	850

Best Material Supplied In Following Countries

col_1	col_2
1/2" - 96" 1500LBS Duplex Stainless Steel WN Flange	Singapore, Malaysia, United Kingdom -UK, NY 12203 (USA)
Forged 2205 Duplex Stainless Steel 2" Weld Neck Flange	Malaysia, Germany, Malaysia, Turkey
DUPLEX 2205 ASME B16.5 1/2" - 24" 150# RF BLIND FLANGE	Europe, Norway, United Arab Emirates (UAE), Romania
1/2" - 24" Duplex 2205 ASME Stainless Steel Blind Flange	South Africa, Taiwan, Philippines, Kuwait
150# ASME Duplex Stainless Steel 2205 Slip On Flange	UK, Saudi Arabia (KSA), Brazil, Spain
Forged Flange 2205 Duplex Stainless Steel 2'' SCH40	Malaysia, Mexico, Egypt, Los Alamos -Mexico
UNS S32205 ANSI B16.5 Class 150 Raised Face Weld Neck Flange	Dubai, USA, Finland, Malaysia
duplex 2205 150 lb 2 inch pipe Flange	Bahrain, South Korea, Malaysia, Singapore
2205 type quick closing flange	UAE, South Africa, Singapore, Europe
Steel 2205 DN32 jis 10k plate flange	Qatar, Malaysia, Singapore, Europe
2205 RF LJW Lap Joint Flange 4" class900 ANSI B16.5	Philippines, Iran, Chile, Canada
Duplex Stainless Steel 2205 Plate Flange	Philippines, Indonesia, Belgium, UK
Duplex 2205 Flange 1 1/2" Class 600 SO RF	Ellington -United States, Australia, Nigeria, Canada
Astm A182 f51 DN300 2500# SCH 40 RTJ LWN flange	Czechia, Japan, Malaysia, Jakarta, Thailand
PN16 duplex 2205 stainless steel flange	Singapore, Malaysia, UAE, Italy
ANSI B16.5 duplex steel F51 WN RF Welding neck Flange	Sweden, Russia, Netherlands, Malaysia
2'' 600LB SCH40s Duplex Stainless Steel Blind Flanges	Oman, France, Thailand, Hong Kong
ASME B16.5 Duplex steel 1/2"-24" 150#-2500# WN Flange	Dammam -KSA, Poland, UK, Philippines
2205 Duplex Stainless Steel 10" Class150 ASME B16.5	Malaysia, Colombia, China, Bangladesh

›Material Properties

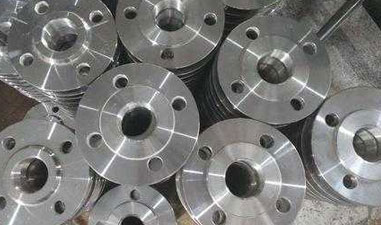

Chemical Structure of ASTM A182 UNS S31803 Slip on Flange

Scroll to see all columns →

C	N	P	Si	Mn	Mo	Fe	Cr	S	Ni
1.0	0.03	0.02	2.0	3.0 - 3.5	22.0 - 23.0	0.03	4.5 - 6.5	0.14 - 0.2	Bal

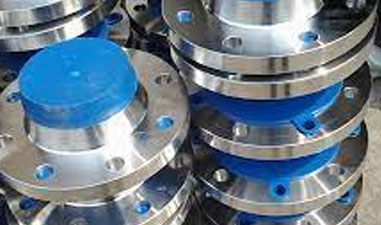

Mechanical Behaviour of SAF 2205 Weld Neck Flanges

col_1	col_2	col_3	col_4	col_5
Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
7.8 g/cm3	1350 °C (2460 °F)	Psi - 80000 , MPa - 550	Psi - 116000 , MPa - 800	15 %

›Dimensions & Weight

Dimensions of Duplex S31803 Slip On Flanges

Scroll to see all columns →

Nominal Size	Outside Diameter / (OD)	Min. Thickness / (T)	RF Dia. / (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle / (BC)	SO Bore ID / (SB)	WN Bore ID / (WB)	Dia. Hub Base / (HB)	Dia. of Hub Top / (HT)	SO LTH / (SL)	WN LTH / (WL)
1⁄2	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
3⁄4	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
11⁄4	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
11⁄2	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
21⁄2	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
31⁄2	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

Weight Chart of Duplex Steel 2205 Flanges

Scroll to see all columns →

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14	95	67	4	M12	14
AS 2129	Table C	95	67	4	13	14
AS 2129	Table D	95	67	4	13	14
AS 2129	Table E	95	67	4	13	14
AS 2129	Table F	95	67	4	13	14
AS 2129	Table H	114	83	4	16	17
AS 2129	Table J	114	83	4	16	17
ANSI B16.5	ANSI 150	89	60	4	13	16
ANSI B16.5	ANSI 300	95	67	4	13	16
ANSI B16.5	ANSI 600	95	67	4	13	16
ANSI B16.5	ANSI 900	121	83	4	19	22
ANSI B16.5	ANSI 1500	121	83	4	19	22
ISO 7005 (DIN)	PN6	80	55	4	M10	11
ISO 7005 (DIN)	PN10	95	65	4	M12	14
ISO 7005 (DIN)	PN16	95	65	4	M12	14
ISO 7005 (DIN)	PN20	90	60.5	4	M14	16
ISO 7005 (DIN)	PN25	95	65	4	M12	14
ISO 7005 (DIN)	PN40	95	65	4	M12	14

Dimensions Tolerance of 2205 uns s31803 Flanges

col_1	col_2
Outside Diameter / ≤ 24 = 1.6 mm \| > 24 = ± 3.2 mm	Inside Diameter / not applicable
Diameter of Contact Face / 1.6 mm Raised Face = ± 0.8 mm / 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm	Outside Diameter of Hub / ≤ 12 = + 2.4 mm / – 1.6 mm \| ≥ 14 = ± 3.2 mm
Diameter of Counterbore / not applicable	Drilling / Bolt Circle = 1.6 mm \| Bolt Hole Spacing = ± 0.8 mm / Eccentricity of Bolt Circle with Respect to Facing / ≤ 2½ = 0.8 mm max. \| ≥ 3 = 1.6 mm max.
Thickness / ≤ 18 = + 3.2 mm / – 0 \| ≥ 20 = + 4.8 mm / – 0	Length thru Hub / ≤ 18 = + 3.2 mm / – 0.8 mm \| ≥ 20 = + 4.8 mm / – 1.6 mm

›Pressure Ratings

Saf 2205 Flange Pressure Rating

Scroll to see all columns →

Temp. ℃	Pressure-temperature rating for ASME B16.47 by class, bar	Pressure-temperature rating for ASME B16.47 by class, bar_2	Pressure-temperature rating for ASME B16.47 by class, bar_3	Pressure-temperature rating for ASME B16.47 by class, bar_4	Pressure-temperature rating for ASME B16.47 by class, bar_5	Pressure-temperature rating for ASME B16.47 by class, bar_6
Temp. ℃	75	150	300	400	600	900
-29 to 38	10.0	20.0	51.7	68.9	103.4	155.1
50	9.8	19.5	51.7	68.9	103.4	155.1
100	8.8	17.7	50.7	67.5	101.3	152.0
150	7.9	15.8	45.9	61.2	91.9	137.8
200	6.9	13.8	42.7	56.9	85.3	128.0
250	6.0	12.1	40.5	53.9	80.9	121.4
300	5.1	10.2	38.9	51.8	77.7	116.6

Duplex 2205 Flanges

Get a Price

Request a quote for this item

Specify the grade, size, quantity and governing standard, and we'll confirm stock and pricing — typically within the same working day.

Request a Quote for Duplex 2205 Flanges
